- Page 1 FNB28 user manual (V1.0)
-
Page 2: Table Of Contents
Table of Contents 一、Overview..............................2 二、Pay attention to safety matters.........................2 三、Appearance structure diagram........................2 四、Technical index............................3 五、Function page operation instructions......................3 1、Features page.............................3 2、Capacity / Power consumption observation page..................4 3、Histogram page............................4 4、Capacity / Power consumption table page....................5 5、Fast charge identification page........................6 6、Fast charge detection and trigger page......................6 6.1 Fast charge protocol detection...................... -
Page 3: 一、Overview

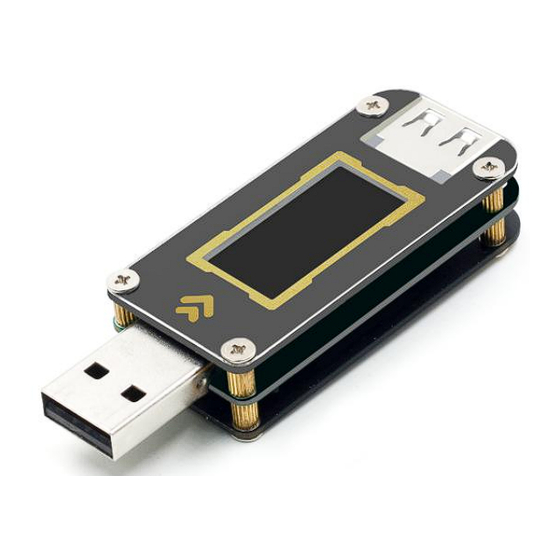

一、Overview FNB28 USB tester is a high-reliability, high-safety USB voltage and current detection meter and mobile communication terminal fast charge trigger. With 0.96 inch TFT LCD display. Can be used to measure the power supply or power consumption of products such as USB interfaces, mobile phone chargers, U disks, etc .;... -
Page 4: 四、Technical Index
图 1 四、Technical index Accuracy: ± (a% of reading + number of words) Index Range Resolution Accuracy Input voltage 4～24V ±(0.4％+3) Input Current 0～5A ±(0.8％+3) Input power 0～120W 0.1mW ±(1.0％+2) Load Equivalent Internal 0～9999.9Ω 0.1mΩ ±(1.0％+2) Resistance D + / D- voltage 0～3.3V 0.01V ±(1.0%+2) -
Page 5: 2、Capacity / Power Consumption Observation Page
Figure 3 Description FNB28 supports 4 sets of capacity / power consumption records. XXX: XX: XX (white) indicates the capacity and power consumption recording time, corresponding to 4 groups of capacity and power consumption, each has a recording time, and it will not be lost when the power is off. -
Page 6: 3、Histogram Page
(1) K1 key Short press: When set to manual recording, recording can be paused / started, and it is invalid when set to automatic recording; Long press: Clear the current group record data, including capacity, power consumption, and record valid time; (2) K2 key Short press: page turning;... -
Page 7: 4、Capacity / Power Consumption Table Page
Short press: switch record group; Long press: Switch to the capacity / power consumption table (see Figure 5). 4、 Capacity / power consumption table page (Figure 5) Figure 5 Description The data of each group can be compared directly based on the value. Instructions (1) K1 key Short press: Clear window pops up;... -
Page 8: 6、Fast Charge Detection And Trigger Page
(1) K1/K2 key Short press: page turning. 6、 Fast charge detection and trigger page (see Figure 7) Figure 7 Description Fast charge detection, fast charge trigger, long press K2 key to enter selection. 6.1 Fast charge protocol detection After selecting the Protocol detection protocol detection, press and hold the K2 key for a long time to pop up DANGEROUS !!! (see Figure 8). -
Page 9: Qc2.0 Trigger
6.2 QC2.0 trigger Select QC2.0, press and hold the K2 key to enter the QC2.0 trigger page (as shown in Figure 10), Fail Failure will display Trigger Failure! Figure 10 Instructions (1) K1 key Short press: switch QC2.0 trigger voltage； Long press: Exit the current page;... -
Page 10: Huawei Fcp Trigger
6.4 Huawei FCP trigger Select Huawei FCP, press and hold the K2 key to enter the Huawei FCP trigger page (as shown in Figure 12). Trigger Failure will display Trigger Failure! Figure 12 Instructions (1) K1 key Short press: switch FCP trigger voltage; Long press:Exit the current page;... -
Page 11: Samsung Afc Trigger
6.6 Samsung AFC trigger Select Samsung AFC, press and hold the K2 key to enter the Samsung AFC trigger page (as shown in Figure 14). Trigger Failure will display Trigger Failure! Figure 14 Instructions (1) K1 key Short press: Switch the AFC trigger voltage; (When the charger does not support the trigger voltage, the voltage will return to 5V) Long press: Exit the current page;... - Page 12 (1) K1 key (2) Short press: switch setting items; (3) Long press: Exit the setting window; (4) K2 key Short press: switch setting items; Long press: popup setting window Setting item description Screen display brightness setting, range 1-20 level. K1 / K2 key: short press: adjust parameter. Long press: cancel / confirm configuration.
- Page 13 Long press: cancel / confirm configuration. Record keeping interval。 K1 / K2 key: short press: adjust parameter. Long press: cancel / confirm configuration. Current threshold: effective when the automatic recording switch is current ≥ this value, recording capacity, power consumption. K1 / K2 key: short press: adjust parameter.
-
Page 14: 六、Upgrade Firmware Instructions
六、Upgrade firmware instructions 1、 Open the FNIRSI USB Meter upgrade tool. 2、 When FNB28 is in the shutdown state, press the OK key to access the HID-USB interface, and it displays the connected, device model, and device firmware version. 3、... - Page 15 Click START to start the firmware upgrade. After the upgrade is completed, 4、 FNB28 will restart automatically.
