Summary of Contents for Fnirsi SG-003A

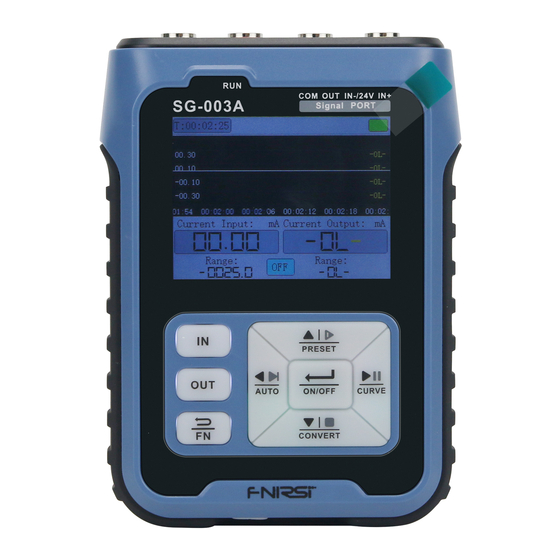

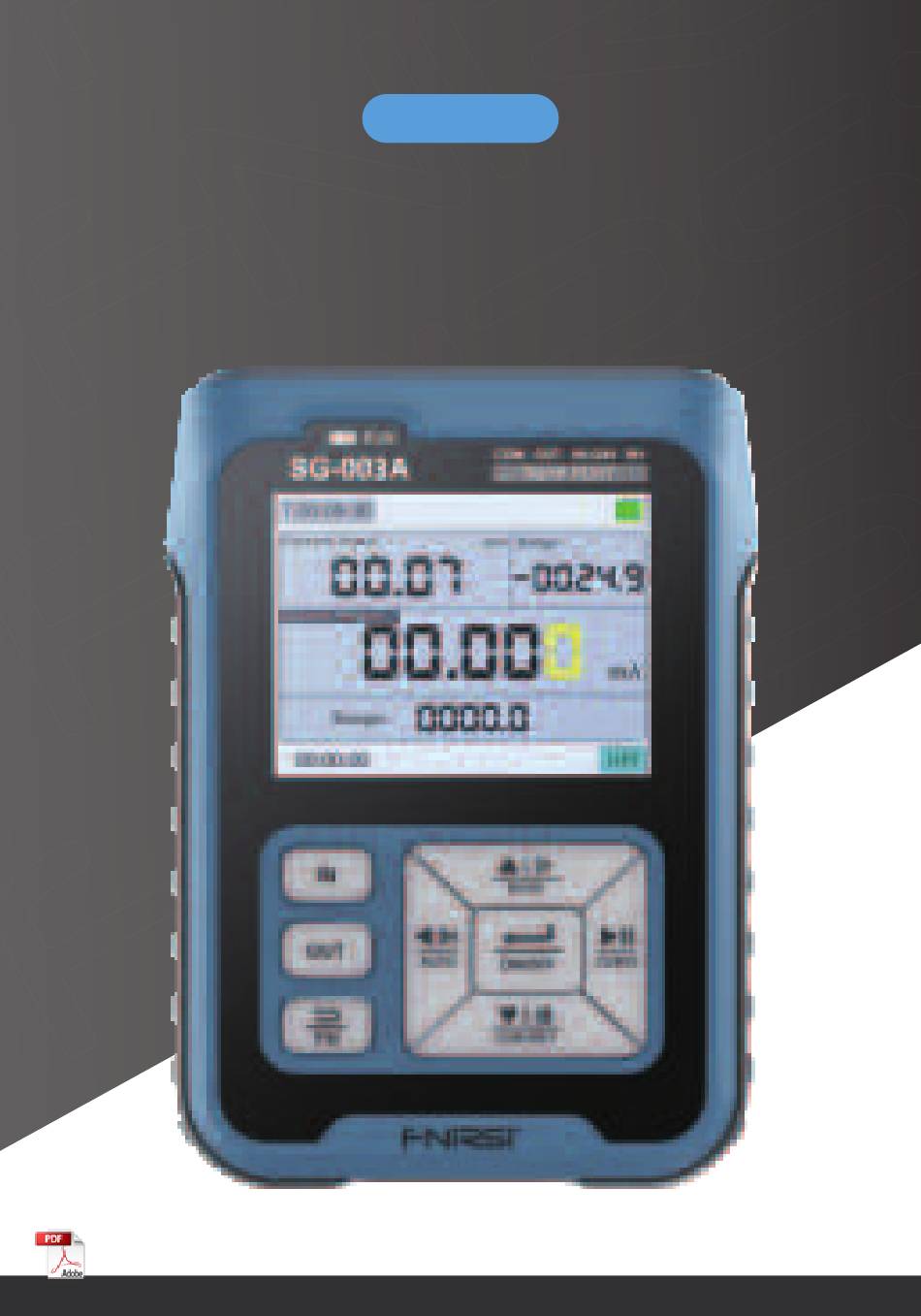

- Page 1 SG-003A OPERATING MANUAL M ulti-fun cti on al S ig nal G enerato r...
-
Page 3: Table Of Contents
CATALOG 1、 Safety Instructions 2、 Product Description 2.1 Specifications 2.2 Function Introduction 2.3 Interface Terminal 2.4 Power & Charge 3、 Button Panel Introduction 4、 Display & Signal Description 4.1 Switching Of Signal Types 4.2 mA Current Signal 4.3 V Voltage Signal 4.4 XMT Passive Current Signal 4.5 Hz Pulse Signal 4.6 24V Loop Detection... -
Page 4: 1、Safety Instructions
1、SAFETY INSTRUCTIONS Plug the meter into the PC,and turn it on.Wait for the PC to recognize the USB drive named "Bootloader" Dont use the instrument in a flammable and explosive environment Used batteries for instrument replacement and discarded instruments cannot be disposed of with household waste.Please handle in accordance with relevant national or local laws and regulations When there is any quality problem with the instrument or when there is a question... -
Page 5: Interface Terminal
【 Modbus Slave 】 : FNIRSI SG-003A can communicate with configuration software or PLC via RS485, set the instrument 【... -
Page 6: 3、Button Panel Introduction
【 2.4 】 Power & Charge Power Type-C port 【 Bottom Display 】 Built-in battery: 3000mA large capacity lithium battery Battery display: Displays the current battery level in the upper right corner of the display port Charging port: Type-C (DC 5V) State of charge: When charging, the power button will display a red light.When fully charged, it will automatically stop charging and display a blue light 3、BUTTON PANEL INTRODUCTION... - Page 7 【 3-key area 】 【 3-key area 】 【 Panel Display 】 【Main Interface】 : Main display interface 【 RCVK 】 Up function key: When the key is white, it is to add value or select upward (when the output pulse is quantitative and the cursor is not in, it is the same as the programming mode).When the 【...
-
Page 8: 4、Display & Signal Description
flashes, it means that the output signal is not connected or the output is close to zero 【 Output Circuit Voltage 】 ： FNIRSI SG-003A can set current output no-load voltage.The purpose of 12V is to save power.Some devices require a 24V drive capability 【... -
Page 9: Hz Pulse Signal
【 4.4 】 XMT Passive Current Signal 【 Mode Switch 】 :When the main interface 【 FN 】 is white.Press 【 IN/OUT 】 to switch the display of actual value and engineering quantity of input/output 【 Output Range 】 : The limit range of passive current output can be set 【... -
Page 10: 5、Extensions
【 4.6 】 24V Loop Detection Select the 24V label left and right in the OUT signal type interface to enter this function state.In this state, displays the output 24V loop current on the main interface.Unlimited input signal detection type （1）... -
Page 11: Signal Conversion
【 5.2 】 Preset Value 【 Parameter Setting 】 : You can set the signal value corresponding to the up, down, left and right buttons 【 Operation Instructions 】 : Start and Exit: When the main interface 【 FN 】 is red, press the up key 【... -
Page 12: Real-Time Curve
【 Parameter Settings 】 : （1） Mode: It is divided into three modes: single rise, single fall and cycle （2） Number of loops: 0 is infinite, 30000 is the maximum （3） Start value: The value at each start （4） End value: The value at the end of each （5）... -
Page 13: Output Time
【 5.6 】 Output Time 【 Output Activation Output Time 】 : When checked, each output will automatically turn off the output after the output time expires 【 Output Time 】 : Set output time 【 5.7 】 Communication 【 USB connection 】 :Because the USB analog serial port is used for communica- tion.Note that charging will slow down after checking the USB connection 【... - Page 14 6、 WIRING INSTRUCTIONS PLC/Process instrument, etc. 【 All Switched by Electronic Switches 】 【 All-round Signal Output 】 : Current/Voltage/Frequency PLC/Process instrument, etc. 【 All Switched by Electronic Switches 】 【 All-round Signal Output 】 : Current/Voltage/Frequency Valve position Pneumatic given valves Valve position...
- Page 15 【 7.3 】 Firmware Upgrade SG-003A uses USB emulated U disk for firmware upgrade 【 Upgrade Steps 】 ： （1） Plug the meter into the PC,and turn it on.Wait for the PC to recognize the USB drive named "Bootloader"...
- Page 16 8、PRODUCTION INFORMATION Product name: Multi-functional Signal Generator Brand / Model: FNIRSI / SG-003A Manufacturer: Shenzhen FNIRSI Technology Co., Ltd. Website: www.fnirsi.cn Address: Building C, Weihuada Industrial Park, Dalang Street, Longhua District, Shenzhen, Guangdong, China �� PAGE...
- Page 17 Function code Hexadecimal Type of Data Attributes 0x64 uint16_t read 0x65 uint16_t write 0x66 float read 0x67 float write 【 Table 1 】 Address Hexadecimal Type of Data Attributes Illustrate 40001 0X9C41 uint16_t read Firmware version 40002 0X9C42 uint16_t Input signal 40003 0X9C43 uint16_t...
- Page 20 Download Manuals and Firmware Manufacturer: Shenzhen FNIRSI Technology Co., Ltd. Website: www.fnirsi.cn Address: Building C, Weihuada Industrial Park, Dalang Street, Longhua District,Shenzhen, Guangdong, China...
