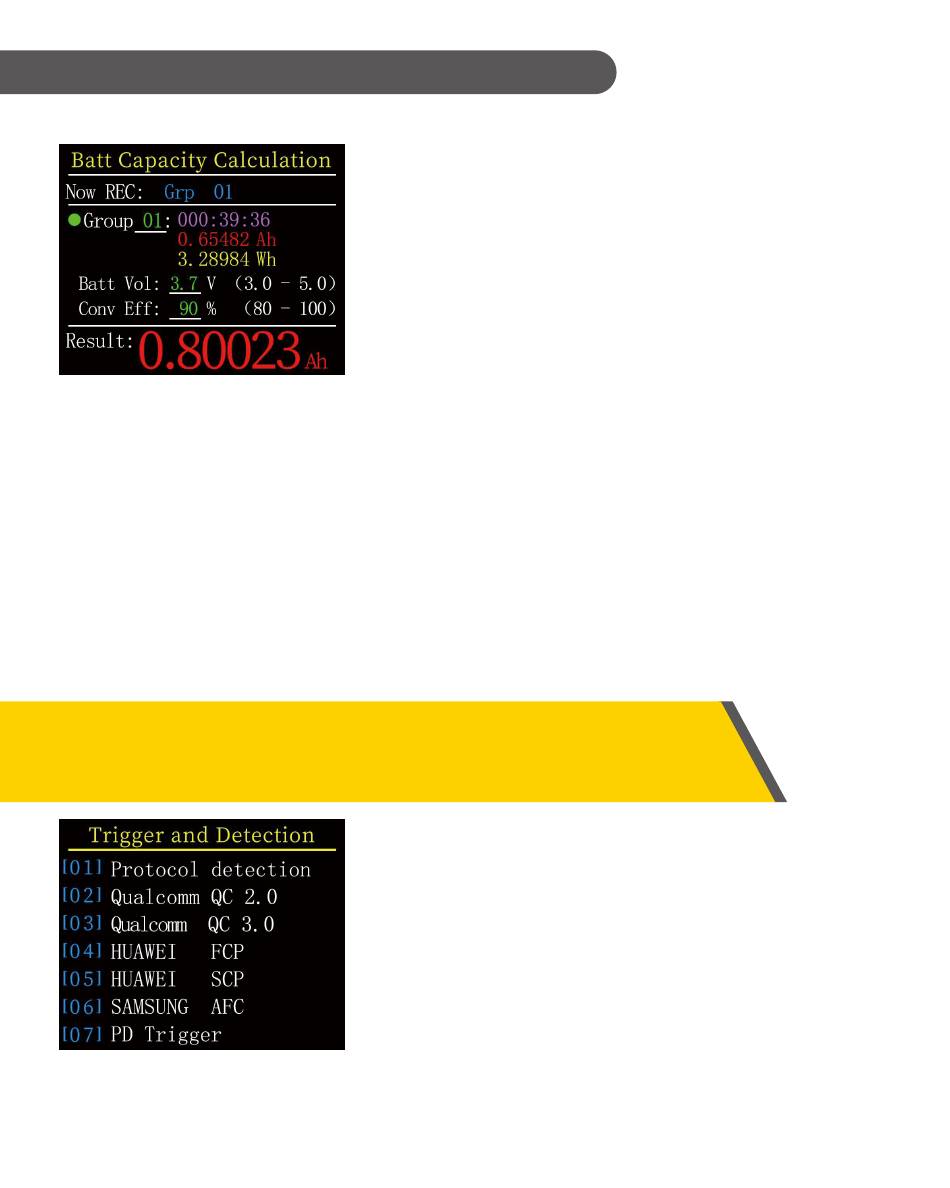

【 8.0.2 】 Battery capacity calculation tool
●Group is the statistical group selected for calculation. This instrument can be
selected from 1-10 groups, statistical time, capacity,energy.It is displayed in order
from top to bottom on the right of the selected group number.
●BattVol is the battery voltage, the default is 3.7V, this parameter can be selected
from 3.0-5.0V, the actual value， please check the relevant information yourself.
●ConvEff is the energy conversion efficiency, the default is 90%.
●The red letter is the calculation result. If you want to get the result in mAh, please
convert it to x1000 by yourself.
9.Quick charge protocol trigger
and detection menu
Description
●In the record page (7.0.2), press and hold the right
button to enter.
●Select the statistics group,set battery voltage,
energy conversion efficiency, the battery capacity
can be calculated.Click the middle button to move
the green dot on the left between Group, battVol
and Conv Eff. Which item the green dot is in, you
can change the value of which item by clicking the
left/right button.Each item is explained below.
Description
●On the (7.0.3) fast charge recognition page, long
press the left button and confirm to enter.
●This meter supports QC2.0/QC3.0, HuaWeiFCP/SCP,
SamsungAFC
pressure mode, PD2.0/3.0 trigger,and QC2.0->PD2.0
protocol conversion.
9
trigger, VOOC/DASH constant
