3.7.1 Single-phase installation

In the case of single-phase installation, follow the steps below:
•
Remove the protective cap of the power supply cables entry and insert the
Ø 25 mm corrugated sheath.
•
Tighten the box-cable sheath junction.
•
Insert the power supply cable and connect to CN1 power supply terminal
block:
•
Earth cable to PE
•
Neutral cable to N
•
Phase cable to T
Make sure that the entire stripped section of each cable is fully inserted into each
terminal.
NOTE
It is possible to replace the 2 box-cable sheath junctions with Ø25mm cable gland
(not provided by the Manufacturer).

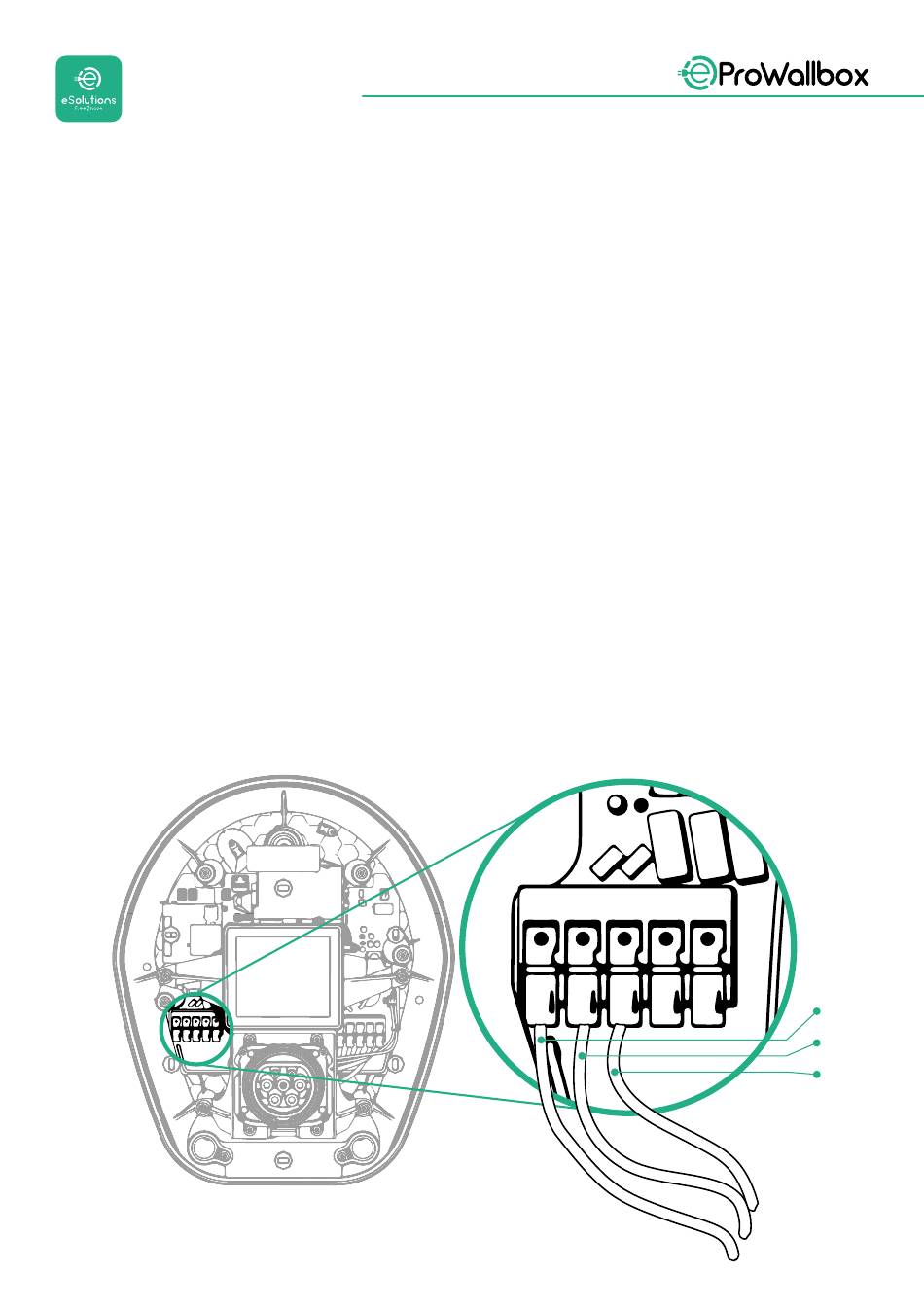

(CN1)
N T S
PE
28
Inst a llat io n M an ual
R
PE
N
L
