3.5

Wall mounting

CAUTION
The national and international building regulations set out in
IEC 60364-1 and IEC 60364-5-52 must be observed when fixing
eProWallbox to the wall. Correct positioning of the charging station
is important to ensure it operates correctly.
To fix the main body to the wall, 3 plugs (Ø 10x50 mm) are required. The plugs supplied
are universal and are suitable for solid or hollow brick walls. For installation on walls
made of different materials (e.g. plasterboard), specific plugs are required, and must
only be installed once the maximum permissible load has been verified.
Before installation, it is necessary to determine the position and distances from walls.
•
It is recommended to maintain a distance of 50-60 cm from other walls to
facilitate installation and maintenance.
•
It is also recommended to install the wallbox at a height of 130-140cm from
the floor.
•

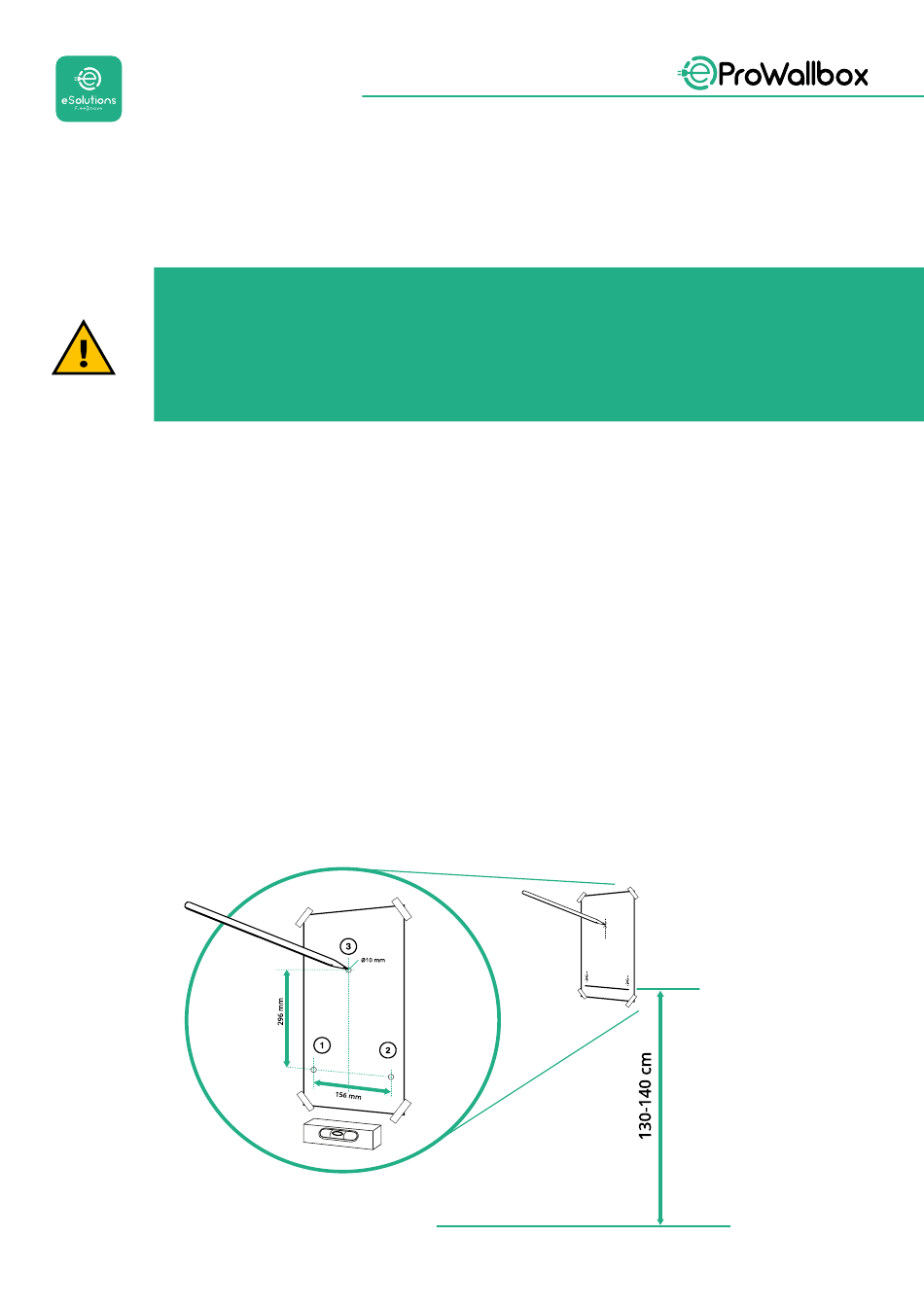

To facilitate installation and wall mounting, use the supplied template to drill
the 3 fixing holes. The template should also be used for levelling with a spirit
level.
•
Using a drill, make 3x Ø10 mm holes where the fixing points are marked.
The minimum depth of the holes must be 60 mm. Then remove any drilling
residue from the holes.
