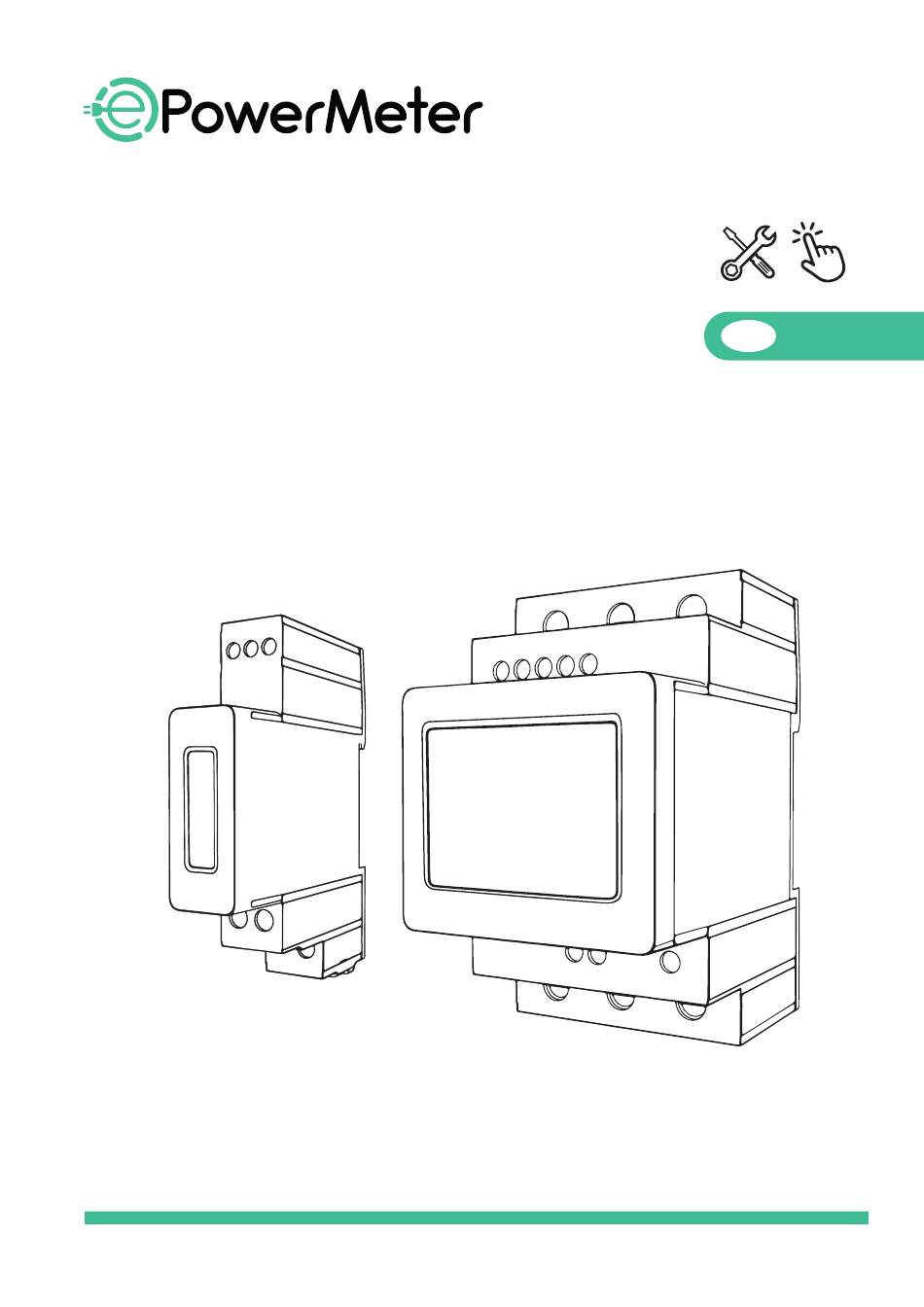

- Page 1 INSTALLATION AND USER MANUAL...
- Page 2 As soon as the other domestic appliances are switched off, the session will resume at maximum power. Do not try to install the PowerMeter if you are not qualified as a professional electrician. Such behavior can cause serious danger and harm to you and to the people, things or animals around you.
- Page 3 During the installation always follow the PowerMeter manual included in the package. Place the PowerMeter provided after the main utility meter and before the split power Eletrical panel RS485 Port CN12 Wallbox Eletrical panel Utility Meter PowerMeter RS485 Port CN12...
- Page 4 When powering up the PowerMeter for the first time, press and hold the touchscreen button until the display text blinks, then select the SETTING command and press and hold again to enter the menu. Select COMMUNICATION command (COMM on single-phase meter), press and hold to enter the menu.
- Page 5 PowerMeter AND MIDcounter INSTALLATION If the PowerMeter is installed together with the MIDcounter, they must be connected as shown in the diagram below. Eletrical panel Eletrical panel RS485 Port CN12 MIDcounter Wallbox RS485 Port CN12 MIDcounter Wallbox Utility Meter PowerMeter...
- Page 6 Now configure both the PowerMeter and MIDcounter. Set the device address as following: Device address: 001 (PowerMeter) Device address: 002 (MIDcounter) Then set the following parameters on both devices as described in steps 5. and 6.: Bits per second: 38400 bit/s ...
- Page 7 Log in on the App and associate the wallbox to your profile by framing the personal QR code printed on your wallbox, on the back of the external cover. Select the wallbox connected to the PowerMeter and go to settings. Then click on Home Power.
- Page 8 Registered office Free2move eSolutions S.p.A Piazzale Lodi, 3 20137 Milan - Italy esolutions.free2move.com...
