Power supply connection

The appliance must be powered by cables of an appropriate size and capable of
withstanding the current for which the product has been designed. Make sure
the cables are of a suitable size before wiring, and that the maximum permissible
bending radius is not exceeded. The appliance's electrical data, which should be
referred to in order to size the power supply system correctly, are displayed on the
identification label of the device (refer to paragraph 2.3 Identification label).
The following guidelines provide information on which power supply cables to use
and the recommended conductor size:
•

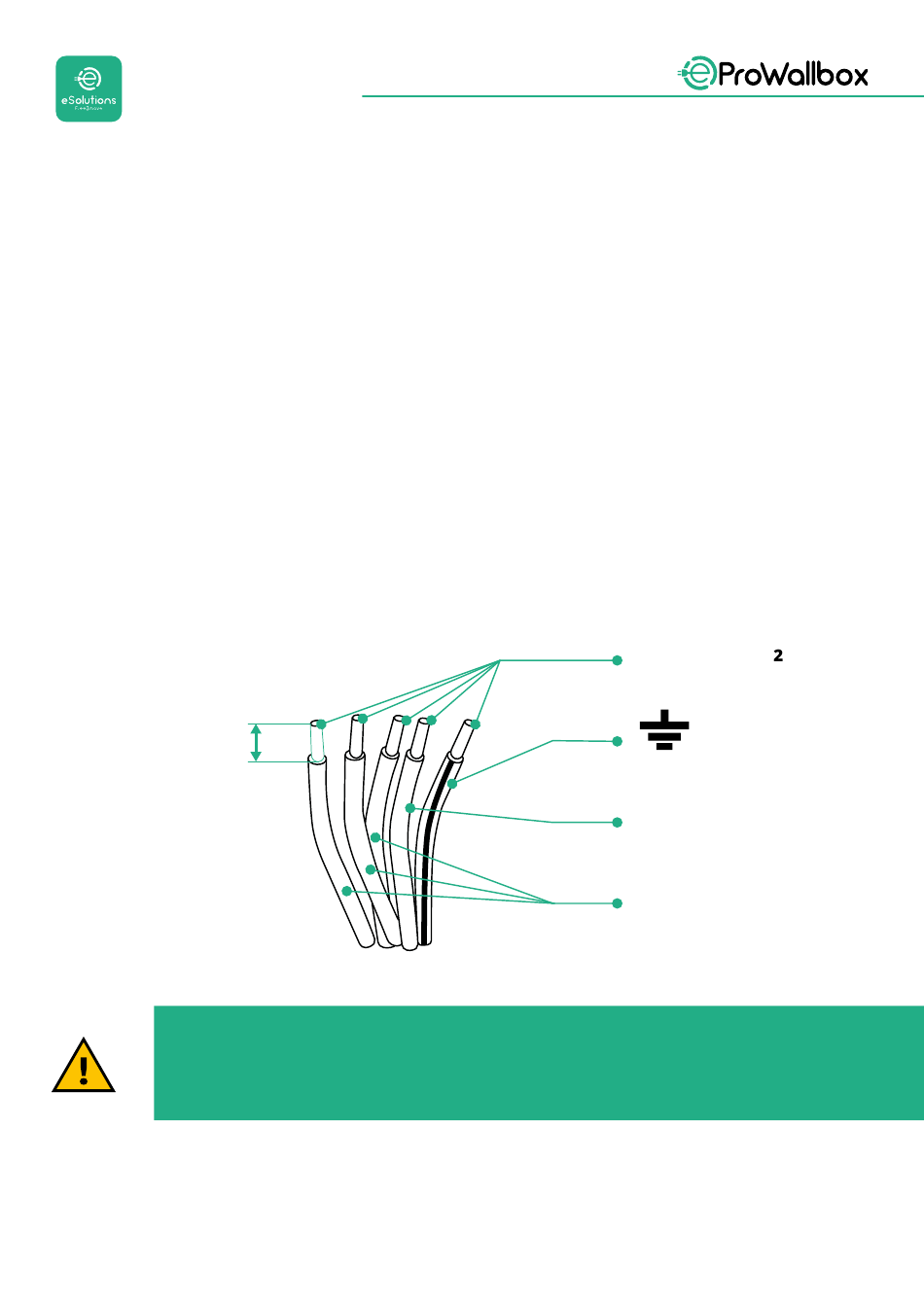

Suggested minimum conductor size: 6 mm
the input connector can accept also 4 mm
•
Suggested maximum conductor size: 16 mm
•
Stripping length for power supply cables: 18 mm
≈18 mm
DANGER
The power supply to the device must remain switched off
throughout this step.
,
2
2
2
25
Inst a llat io n M an ual
6 ÷ 16 mm
N
L
