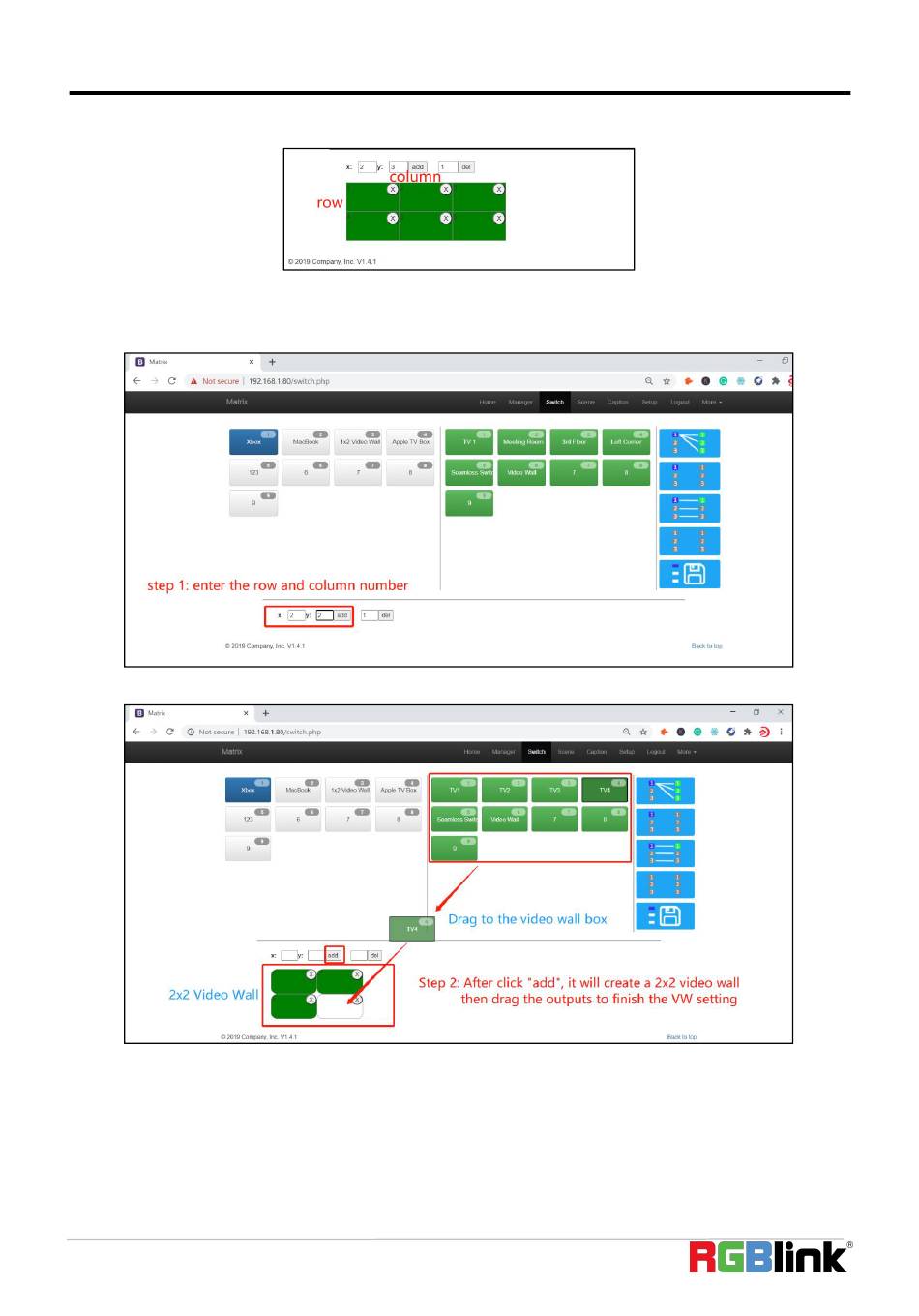

Users also can do the Video wall settings on the WEB GUI bottom by simply adding the x&y(x: for the rows; y: for
column).
Note that this video wall function only works with the 1080P HDMI/HDBaseT and 4K60 HDMI output card only.
Below the steps to create the video walls:
Step1: Enter the video wall Row(x) and column(y) numbers, and then click "add", example to create a 2x2:
Step 2: Click "add" to create the 2x2 video wall, then drag the outputs to the video wall box.
Users can have multiple video walls by the same way to create, for the 9x9 matrix switcher, the video wall
configuration will be limited to 9, it means the configuration could be 3x4 video wall.
