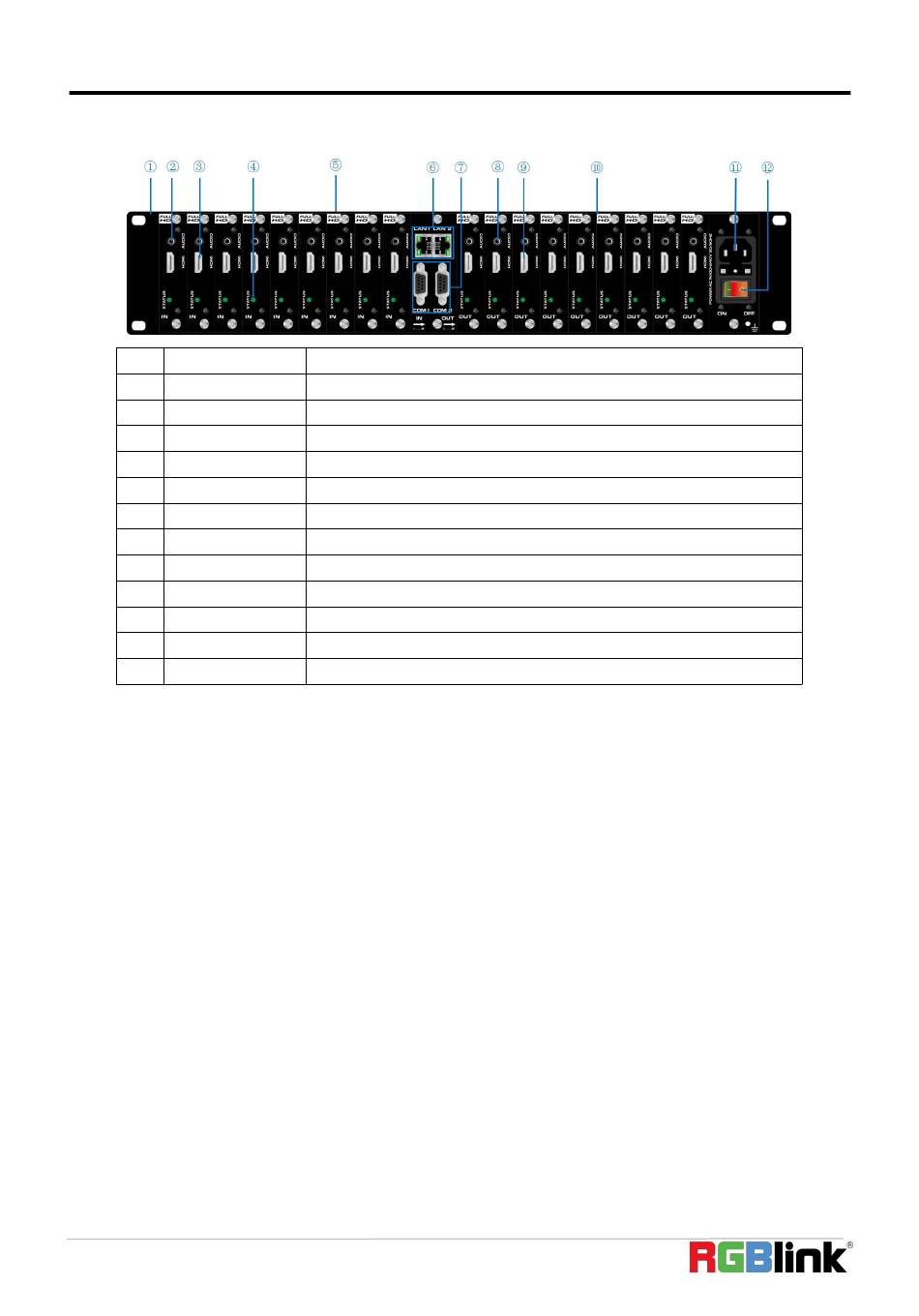

Rear Panel
No.
Name
Rack Ear
3.5mm Audio
HDMI Port
Status Indicator
Input Slots
LAN Ports
RS232 Ports
3.5mm Audio
HDMI Port
Output Slots
Power Port
Power Switch
© Xiamen RGBlink Science & Technology Co., Ltd.
| support@rgblink.com | www.rgblink.com
Ph: +86 592 5771197
For installing on the 19 inch Rack Cabinet
External 3.5mm audio embedded
HDMI input card
Power on indicator
Supports DVI/HDMI/VGA/CVBS/YPbPr/FIBER/HDBaseT inputs
Dual LAN ports for WEB/TCP/IP control
Dual RS232 ports for 3
rd
parties control
External 3.5mm audio de-embedded
HDMI output card
Supports DVI/HDMI/VGA/CVBS/YPbPr/FIBER/HDBaseT outputs
AC 220V-240V 50/60Hz
Power ON/OFF switch with light
