UG-AD7656-1/57-1/58-1

EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION

The EVAL-AD7656-1/57-1/58-1SDZ evaluation kit includes
software on a CD. Click the setup.exe file from the CD to run
the install. The default location for the software is
C:\Program Files\Analog Devices\AD7656-1_57-1_58-1
Note:
Install the evaluation software before connecting the
evaluation board and EVAL-SDP-CB1Z board to the USB
port of the PC to ensure that the evaluation system is correctly
recognized when connected to the PC.
There are two parts to the install:
AD7656-1/57-1/58-1 Evaluation board software
Install.
EVAL-SDP-CB1Z System Demonstration Platform
Board Drivers install
Figure 3 to Figure 7 show the separate stages of the AD7656-
1/57-1/58-1 evaluation software. Figure 8 to Figure 12 show the
separate steps to install the EVAL-SDP-CB1Z drivers. Proceed
through all of the installation steps allowing the software and
drivers to be placed in the appropriate locations.
Only after the software and drivers have been installed
should you connect the EVAL-SDP-CB1Z board to the PC.

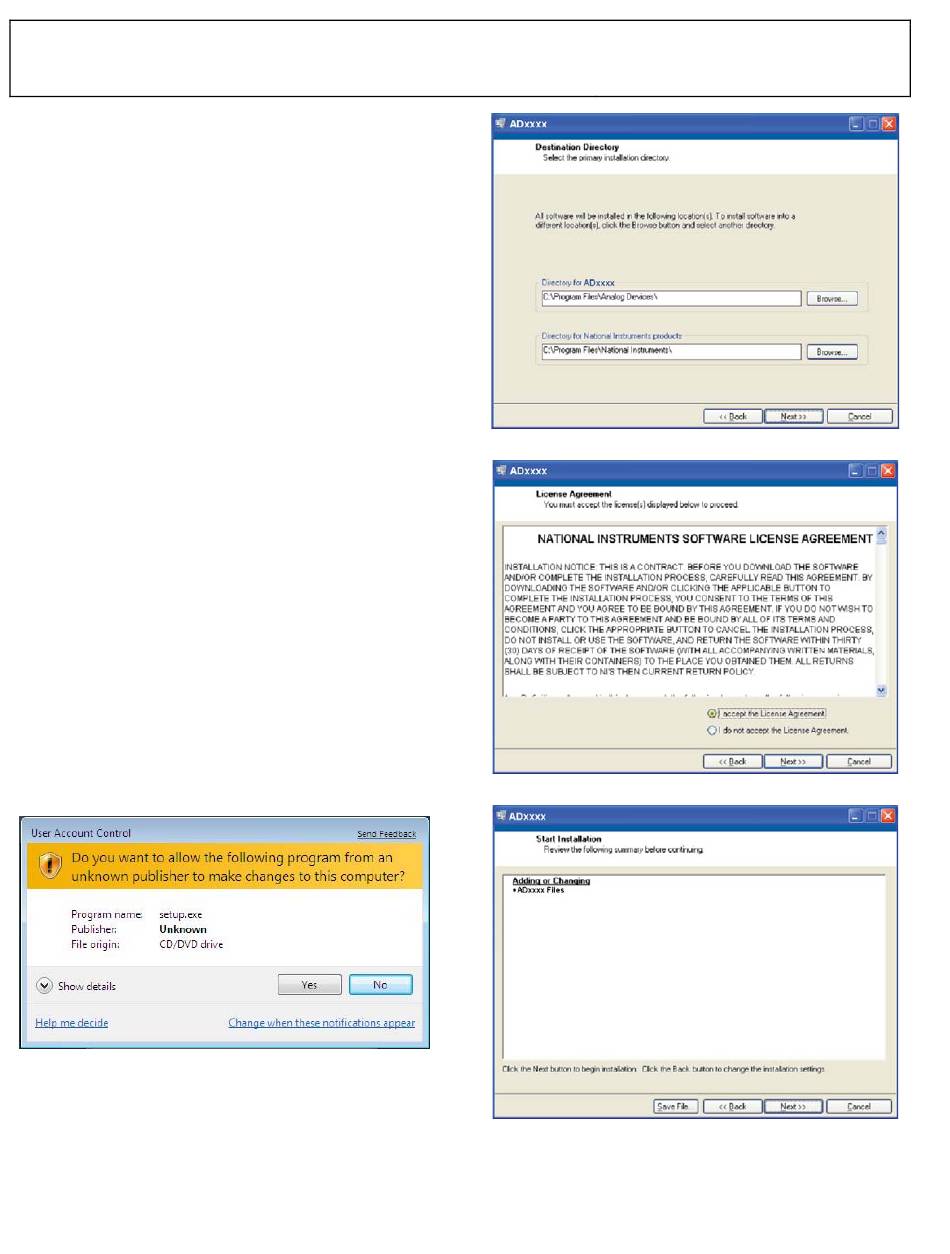

Figure 3. AD7656-1/57-1/58-1 Install Window 1
Figure 4 AD7656-1/57-1/58-1.Install Window 2
Figure 6. AD7656-1/57-1/58-1 Install Window 4
Rev. PrA | Page 14 of 32
Evaluation Board User
Figure 5 Install Window 3
