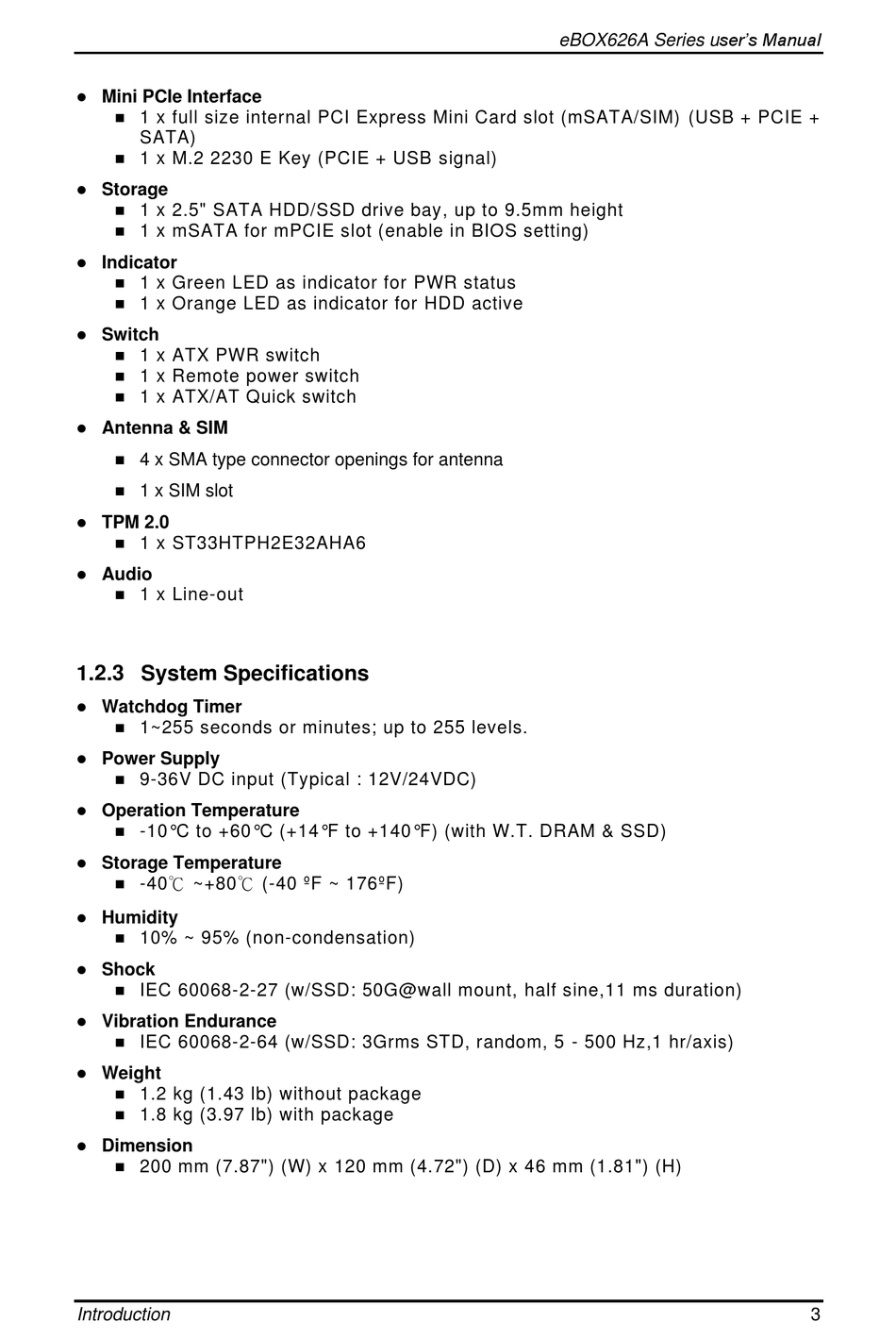

⚫ Mini PCIe Interface
◼
1 x full size internal PCI Express Mini Card slot (mSATA/SIM) (USB + PCIE +
SATA)
◼ 1 x M.2 2230 E Key (PCIE + USB signal)
⚫ Storage
◼ 1 x 2.5" SATA HDD/SSD drive bay, up to 9.5mm height
◼ 1 x mSATA for mPCIE slot (enable in BIOS setting)
⚫ Indicator
◼ 1 x Green LED as indicator for PWR status
◼ 1 x Orange LED as indicator for HDD active
⚫ Switch
◼ 1 x ATX PWR switch
◼ 1 x Remote power switch
◼ 1 x ATX/AT Quick switch
⚫ Antenna & SIM
◼ 4 x SMA type connector openings for antenna
◼
1 x SIM slot
⚫ TPM 2.0
◼ 1 x ST33HTPH2E32AHA6
⚫ Audio
◼ 1 x Line-out

1.2.3 System Specifications

⚫ Watchdog Timer
◼ 1~255 seconds or minutes; up to 255 levels.
⚫ Power Supply
◼
9-36V DC input (Typical : 12V/24VDC)
⚫
Operation Temperature
◼
-10°C to +60°C (+14°F to +140°F) (with W.T. DRAM & SSD)
⚫ Storage Temperature
◼ -40℃ ~+80℃ (-40 ºF ~ 176ºF)
⚫ Humidity
◼
10% ~ 95% (non-condensation)
⚫ Shock
◼ IEC 60068-2-27 (w/SSD: 50G@wall mount, half sine,11 ms duration)
⚫ Vibration Endurance
◼ IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz,1 hr/axis)
⚫ Weight
◼ 1.2 kg (1.43 lb) without package
◼ 1.8 kg (3.97 lb) with package
⚫ Dimension
◼ 200 mm (7.87") (W) x 120 mm (4.72") (D) x 46 mm (1.81") (H)
