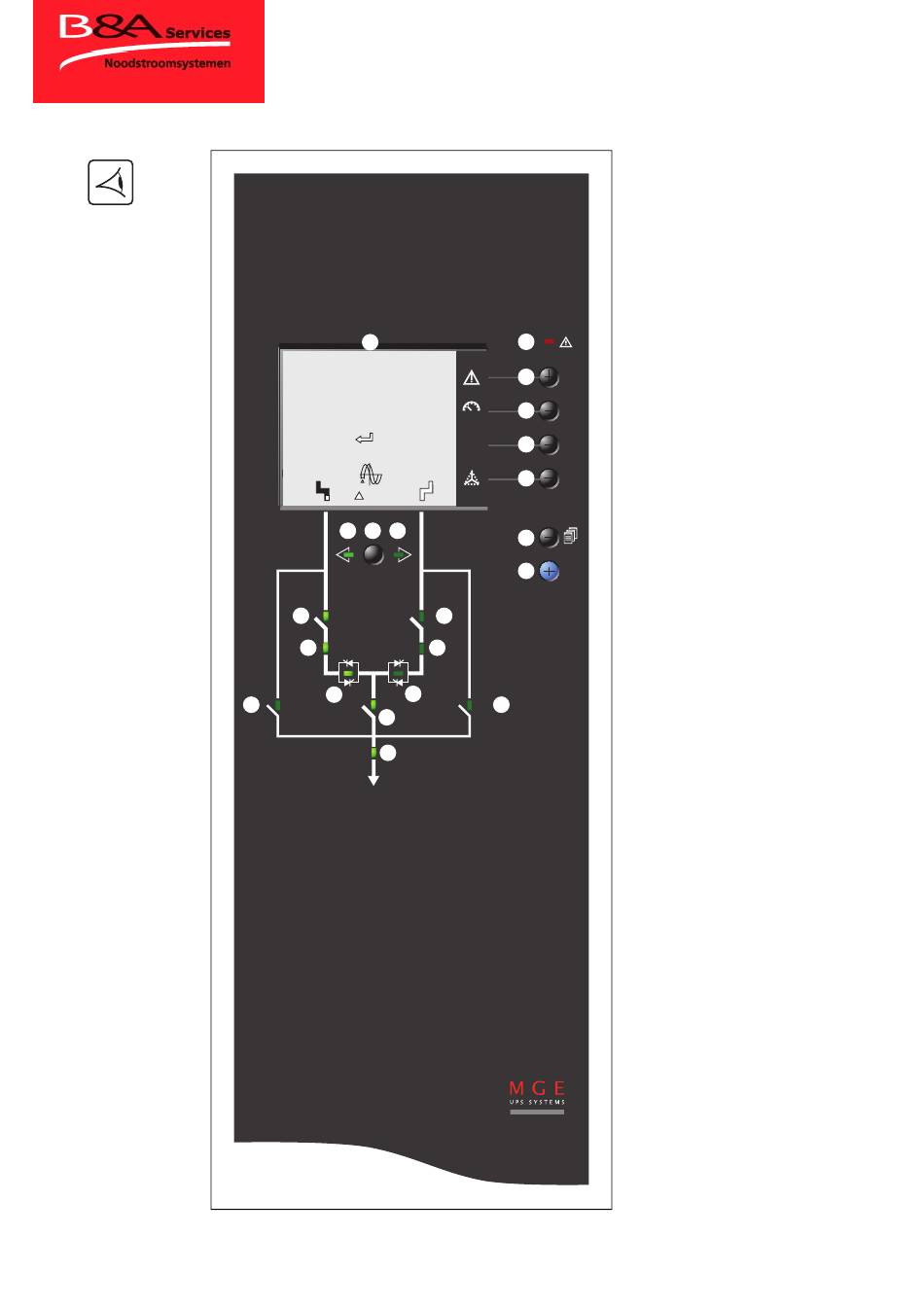

1.3 Control panel and display

32
20
Menu
Menu NORMAL OPERATION
I1 17 A I2 9 A I3 2 A
1 KW 6 KVA
Transfert
Alarme
Alarme
PF 0.3
Mesures
Mesures
Etats Etats
Historique
Historique
UPS 1 UPS 2
preferred
U12 413 V U12 412 V
U23 414 V U23 415 V
synchro
U31 414 V U31 413 V
50.0 Hz 50.0 Hz
Source prioritaire Source secours
UPS galaxy
UPS galaxy UPS galaxy UPS galaxy
deuxième étage, salle 14
deuxième étage, salle 14 deuxième étage, salle 13 deuxième étage, salle 13
= 0°
23 24 25
28 29
Q1 Q2
30 31
35
33
Q1BP Q3
34
37
load
charge
21
22
22
volt
22
22
26
27
?
36
Q2BP
Upsilon STS
1. Presentation
(20) Graphic display
(21) General alarm LED
(22) Function buttons
(23) Presence of preferred source S1
(24) Manual transfer button
(25) Presence of preferred source S2
(26) Menu button
(27) Help button
(28) Status LED for input switchQ1 of source
S1:
switch closed: green
switch open: red
(29) LED for status of switch Q2:
switch closed: green
switch open: red
(30) LED for status of source S1:
source present green
source outside tolerances: orange
source absent: red
(31) LED for status of source S2:
source present green
source outside tolerances: orange
source absent: red
(32) LED for status of bypass switch Q1BP
(33) LED for status of static switch 1: switch
closed: green
switch open: red
(34) LED for status of switch Q3:
(35) LED for status of static switch 2: switch
closed: green
switch open: red
(36) LED for status of bypass switch Q2BP
(37) LED for status of system output to the
load:
voltage present: green
voltage absent: red
34400847FR/AA
- Page 7
