MGE UPS Systems Upsilon STS 800A Installation And User Manual page 12

2. Installation
2.2 Assembling the cabinets
◗ Move the cabinets to their intended positions.
◗ Level the cabinets and align the doors by adjusting the front foot pads.

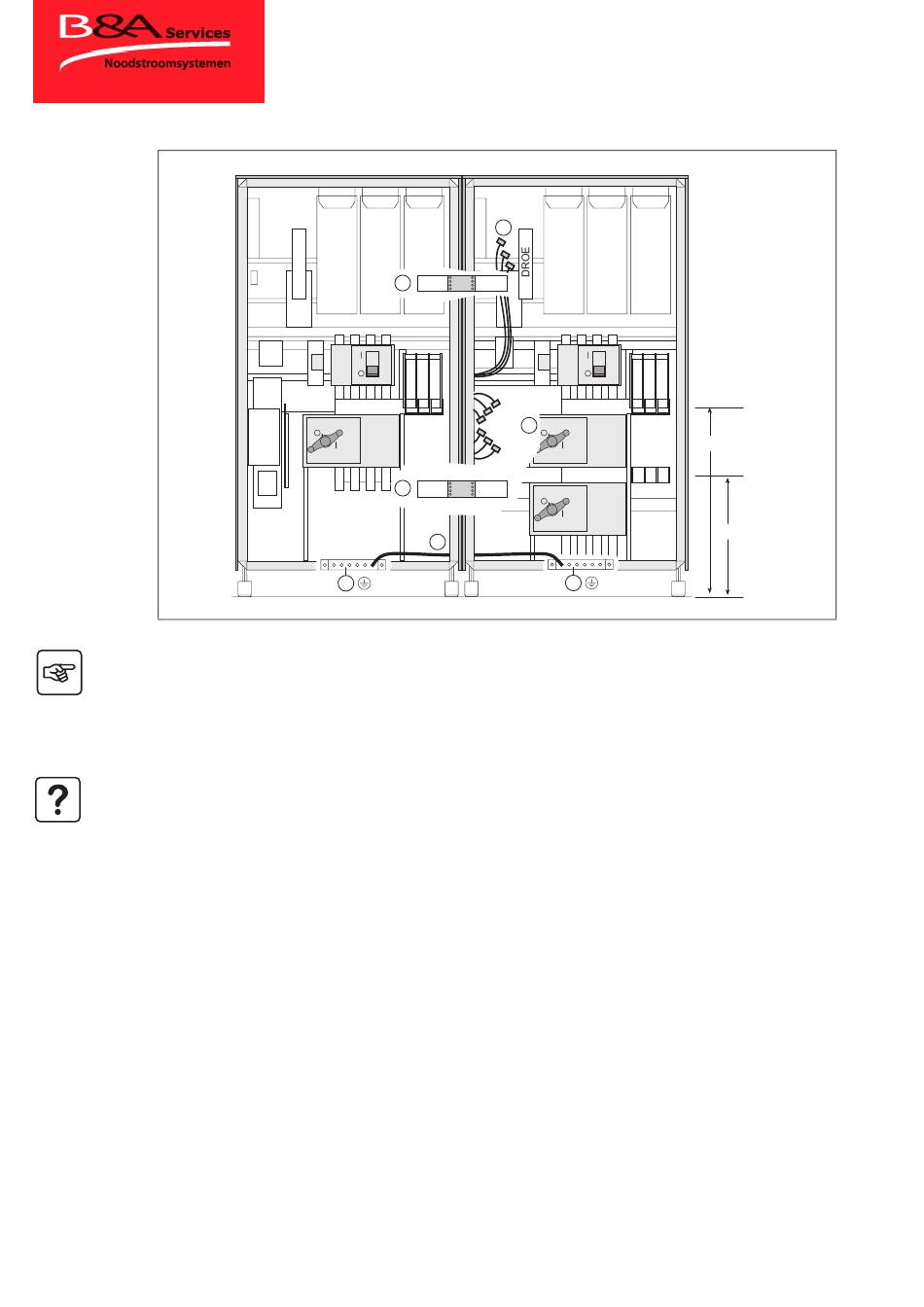

◗ Assemble the two cabinets using the supplied kit.
◗ Fit and bolt the splices to join the 4 busbars L1, L2, L3, N at the top (a) and bottom (b) of the two cubicles.
◗ Connect the two earth bars (14) together using the supplied cable (c).
◗ Connect connectors XM30, XM31, XM32 to connectors XF30, XF31, XF32 (d) respectively.
◗ Connect connectors XF14, XF15 and XF16 to board DROE of the right-hand cabinet (e).
Note: If access from the rear of the cabinets is impossible, they must be assembled before positioning. The two
cabinets can be moved together after assembly.
- Page 10
34400847FR/AA
a
Q1
Q4
N L1 L2 L3
Q1BP
b
c
14
e
Q2
Q6
XF32
XF31
XF30
N L1 L2 L3
d
Q2BP
XM30
XM31
XM32
N L1 L2 L3
Q3
14
800 mm
500 mm
