5.8 Practice Test
Click the button below to perform the simulation test.

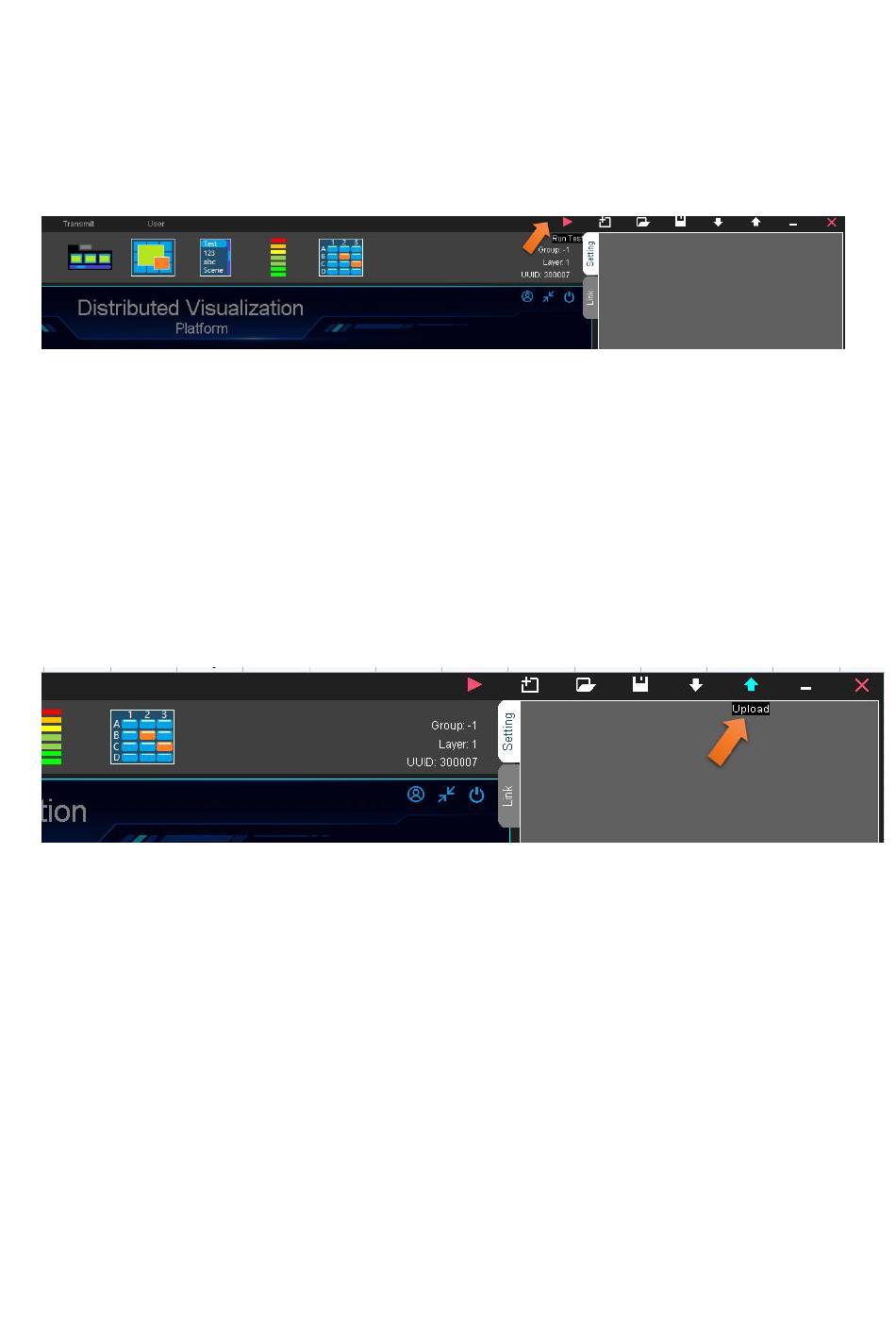

5.9 Configure Upload and Download
5.9.1 Configure Upload
After the configuration is complete, you need to upload it to each node for the
configuration to take effect.
If the output node is configured in KVM mode for the first time, you need to completely
power off. That is, you need to remove one port for all power supplies, including 12V
power supply, POE power supply, and HDMI cables, and then reinsert them one by one.
If the file fails to be uploaded, upload it again.
If the upload fails for several times, a network exception may occur, such as an offline node
or a large picture. The image size should not exceed 500K.
5.9.2 Download Configuration
Click Download to overwrite the current configuration. Therefore, you need to save the
current configuration before downloading.
37
