Step 4: The RS232 device sends the serial port instruction, and the node receives
the serial port instruction and forwards it to the network device through the network. The
parameter Settings are as follows. For example, IP address and port number of the
network device 192.168.0.222:16232。

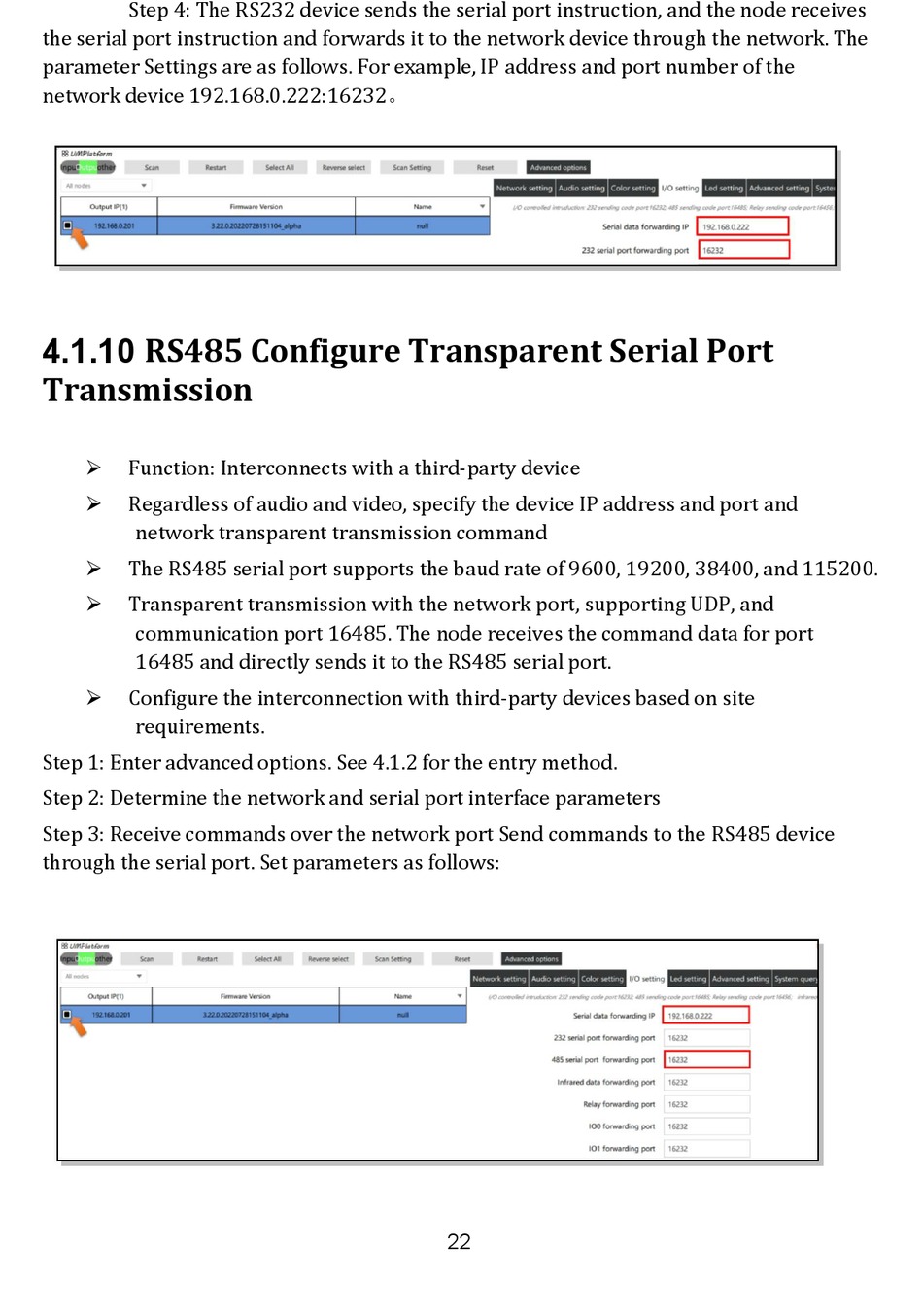

4.1.10 RS485 Configure Transparent Serial Port
Transmission
Function: Interconnects with a third-party device
Regardless of audio and video, specify the device IP address and port and

network transparent transmission command

The RS485 serial port supports the baud rate of 9600, 19200, 38400, and 115200.
Transparent transmission with the network port, supporting UDP, and

communication port 16485. The node receives the command data for port

16485 and directly sends it to the RS485 serial port.
Configure the interconnection with third-party devices based on site
requirements.

Step 1: Enter advanced options. See 4.1.2 for the entry method.
Step 2: Determine the network and serial port interface parameters
Step 3: Receive commands over the network port Send commands to the RS485 device
through the serial port. Set parameters as follows:
