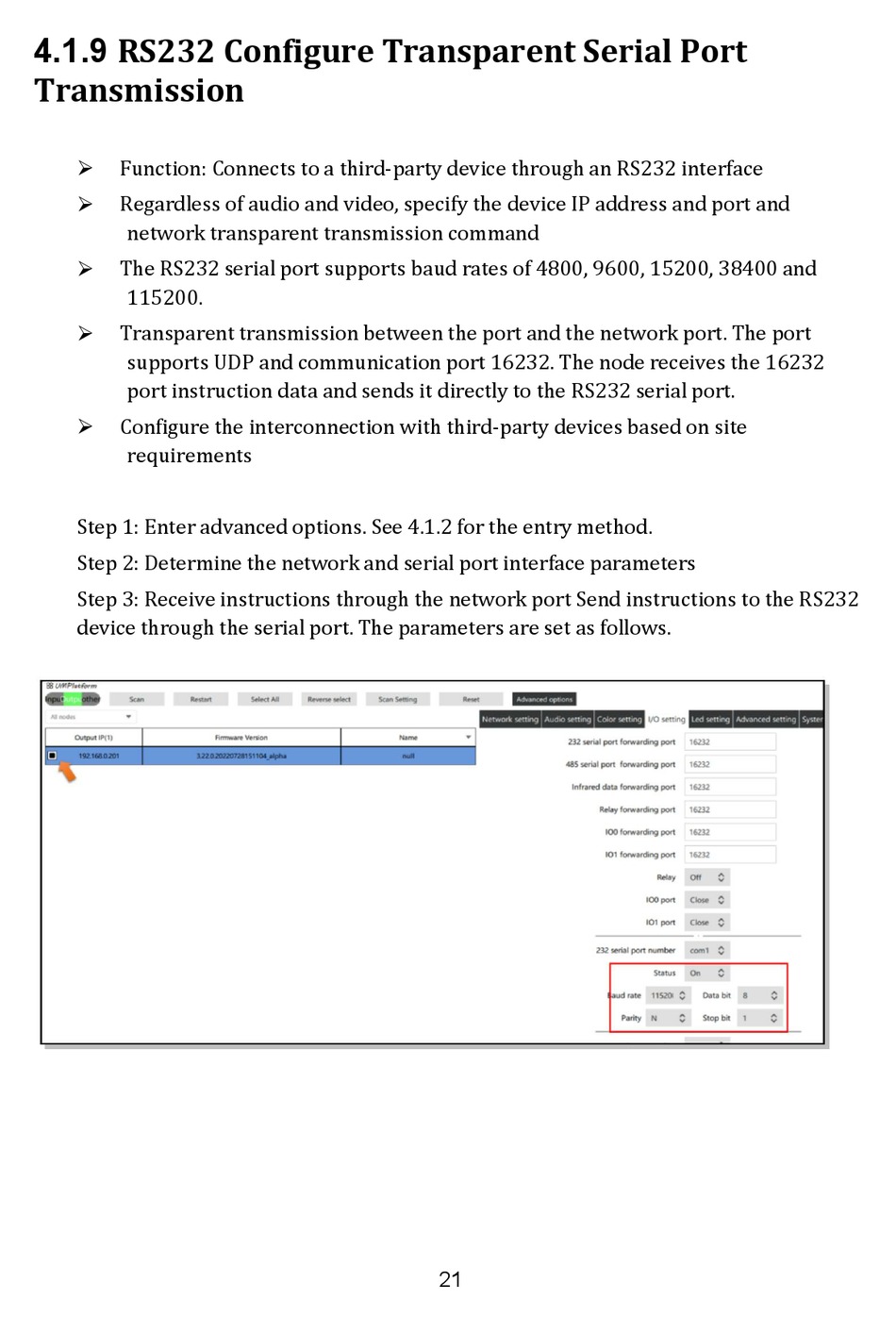

4.1.9 RS232 Configure Transparent Serial Port
Transmission
Function: Connects to a third-party device through an RS232 interface
Regardless of audio and video, specify the device IP address and port and

network transparent transmission command

The RS232 serial port supports baud rates of 4800, 9600, 15200, 38400 and
115200.

Transparent transmission between the port and the network port. The port
supports UDP and communication port 16232. The node receives the 16232

port instruction data and sends it directly to the RS232 serial port.
Configure the interconnection with third-party devices based on site
requirements

Step 1: Enter advanced options. See 4.1.2 for the entry method.
Step 2: Determine the network and serial port interface parameters
Step 3: Receive instructions through the network port Send instructions to the RS232
device through the serial port. The parameters are set as follows.
