Step 4: The network sends instructions to the RS485 device through the node.
After receiving the serial port instructions, the node sends them to the RS485 device
through the serial port.

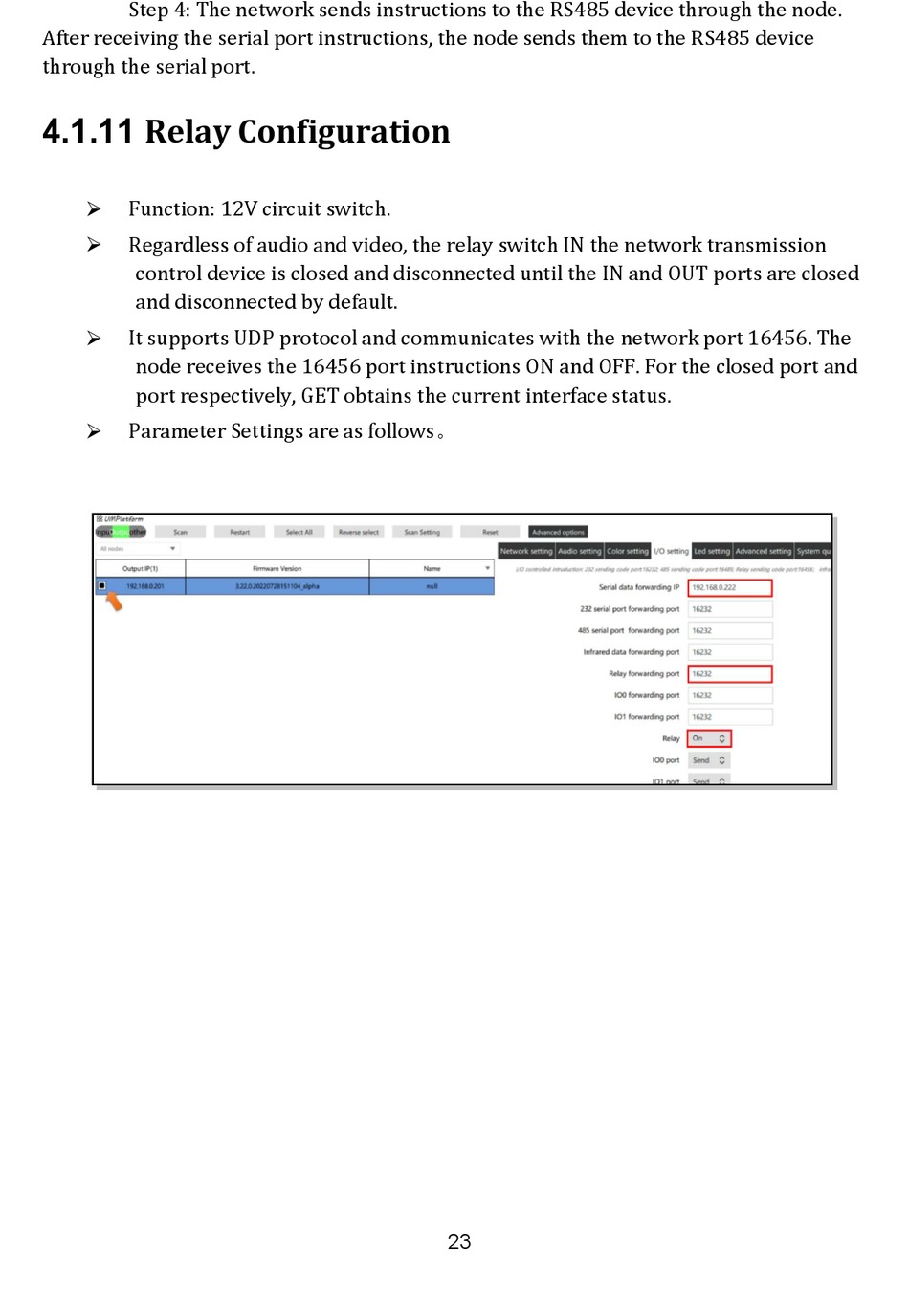

4.1.11 Relay Configuration

Function: 12V circuit switch.
Regardless of audio and video, the relay switch IN the network transmission

control device is closed and disconnected until the IN and OUT ports are closed

and disconnected by default.
It supports UDP protocol and communicates with the network port 16456. The
node receives the 16456 port instructions ON and OFF. For the closed port and

port respectively, GET obtains the current interface status.
Parameter Settings are as follows。

23
