(9) Advanced options：Mainly set some very useful and advanced parameters,
password = (current year + month + day) X current time, such as 15:31 on March
1, 2022. Password = (2022+3+1) x15=30375
(10) Node handsome selection function: This function is used to select nodes of
different device models for upgrade.
(11) Node list: Click and enter the IP address to sort the IP address. You can view the
current version number.
(12) Click to view the name, external device, master/slave, product name (model), and
access resolution information.
(13) Node setting options: including network parameters, codec Settings, audio
Settings, LCD Settings, advanced Settings, etc.
(14) Settings: After modifying the parameters, click Settings and determine whether to
restart the system based on the information displayed in 15.
(15) Prompt area: A prompt is displayed when you modify parameters.

4.1.2 Set the Node Name and IP Address

Step 1: Connect devices based on the networking diagram
Set the computer IP address to 192.168.0.x, mask to 255.255.0.0, and gateway to
192.168.0.1, as shown in the following figure.

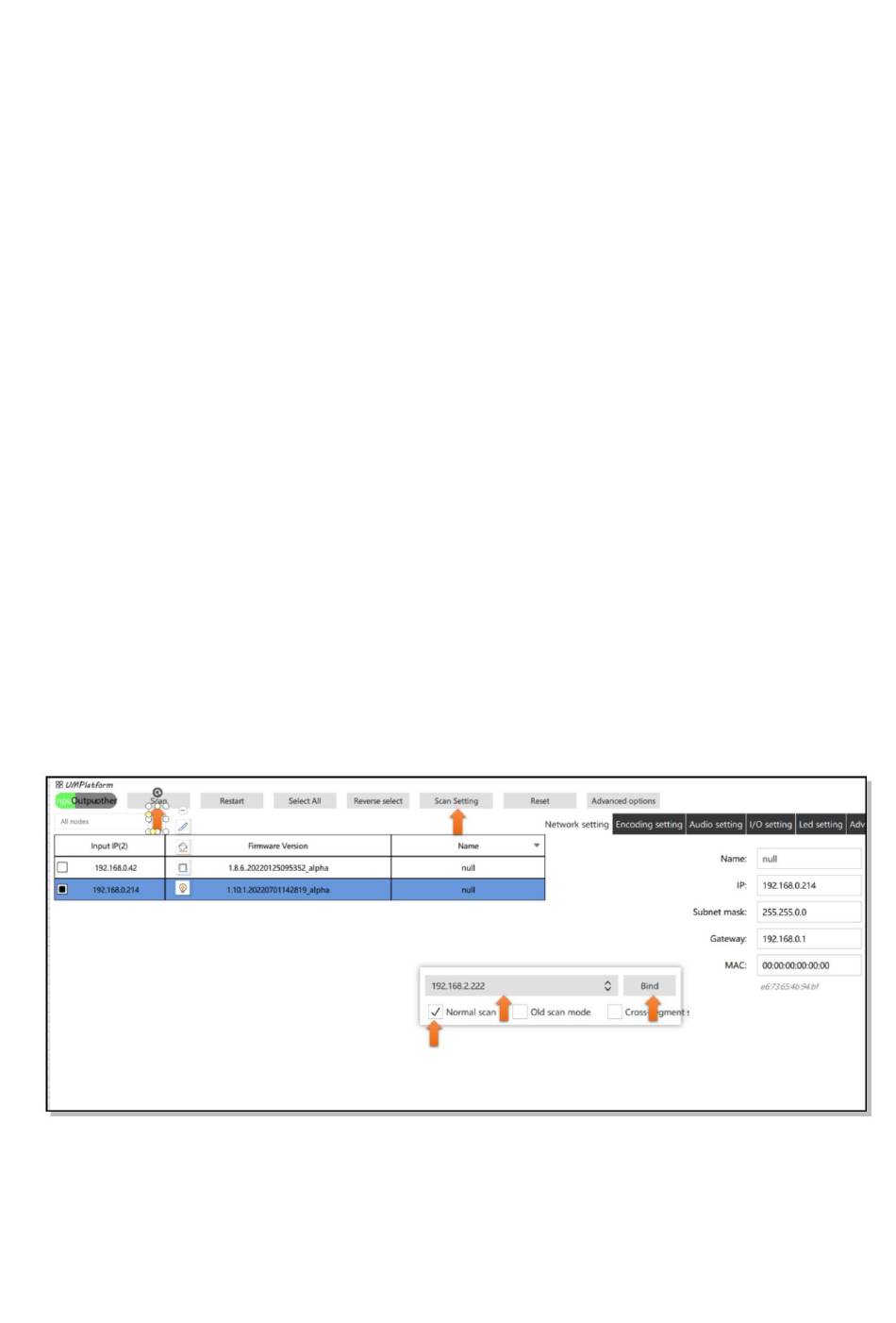

Step 2: Use the UMP software to perform the following steps to scan for the input and
output IP addresses of the current connection.
10
