Model G End Control-Single Phase And Three Phase - Chore-Time C Installation Manual

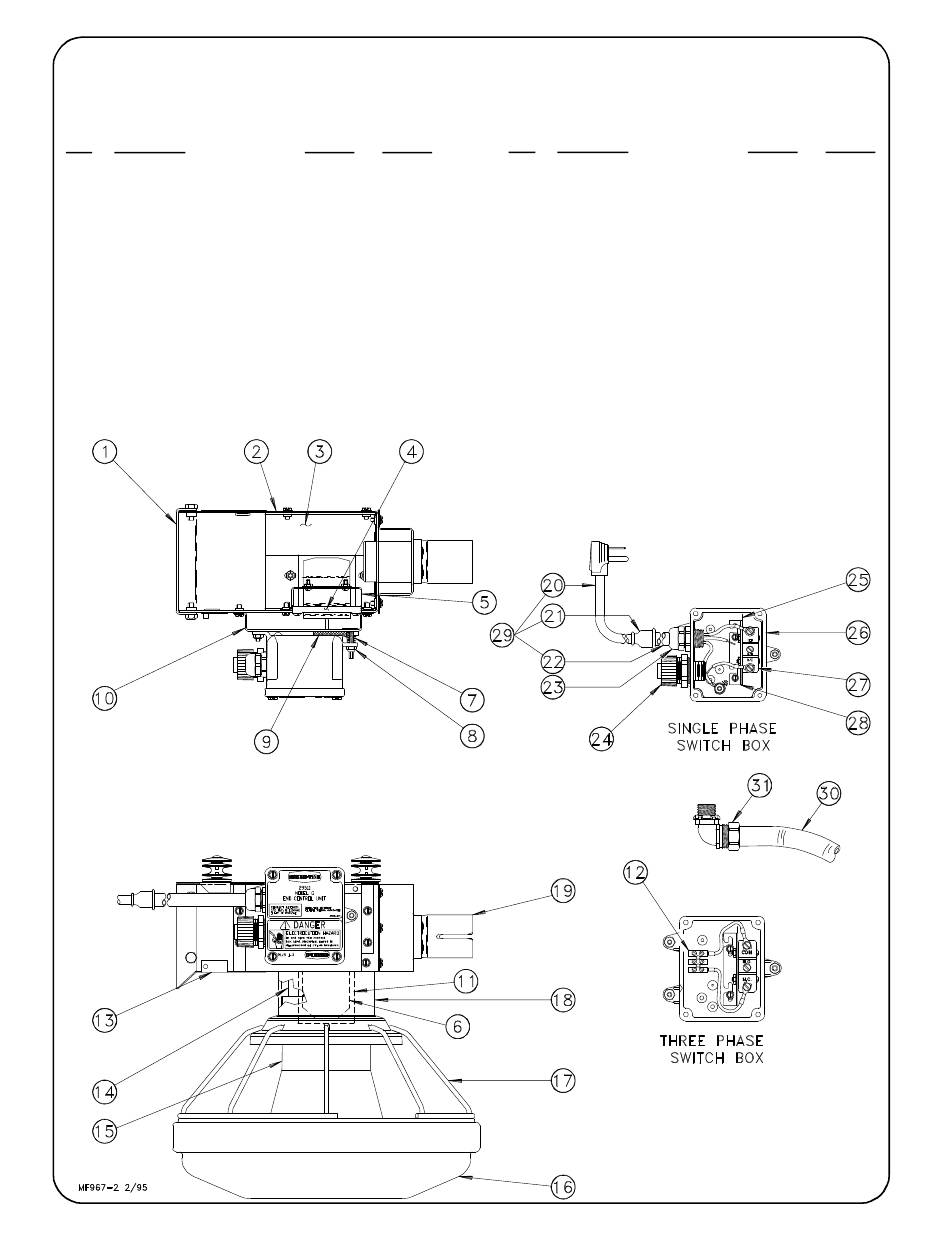

Item Description
1 Anchor
2 Control Body
3 Switch Bracket
4 Paddle Retainer
5 Stop Panel
6 Paddle
7 Spring
8 10-32 Locknut
9 Gasket
10 Switch Box Mount
11 Mylar Assembly
12 3-Terminal Block
13 Bottom Cover
14 Support Cone
15 Control Adjustment Cone
16 Feeder Pan
Model C, C2, G, & H2 Operator's Manual
Model G End Control-Single Phase: 29511
Model G End Control-3 Phase: 29521
1 Phase 3 Phase
Part No. Part No.
4188 4188
14434 14434
14435 14435
25045 25045
25433 25433
24848 24848
6972 6972
6963 6963
6968-1 6968-1
25084 25084
25318 25318
- - - - 27845-3
14432 14432
28134 28134
29064 29064
7700 7700
• Page 71
Item Description
17 Model G Grill Assembly
18 Control Unit Sleeve
19 Support Bracket
20 Cord Stock
21 Reducing Seal
22 Vinyl Tubing
23 1/2" Watertight Connector
24 1/2" Watertight Connector
25 Switch Insulation
26 Switch Box
27 Actuator Switch
28 Switch Bracket
29 Control Cord Assembly
30 14" Flexible Conduit
31 90 Degree Connector
-- Anti-Roost Guard
1 Phase 3 Phase
Part No. Part No.
29300 29300
29349 29349
24683 24683
5044-3 - - - -
7815 - - - -
7814 - - - -
24685 24685
24680 24680
1907-5 1907-5
24702 7841
7114 7114
7068 7068
25495 - - - -
26982-1 - - - -
23810 23810
2798 2798
