2883 Power Winch - Chore-Time C Installation Manual

Model C, C2, G, & H2 Operator's Manual

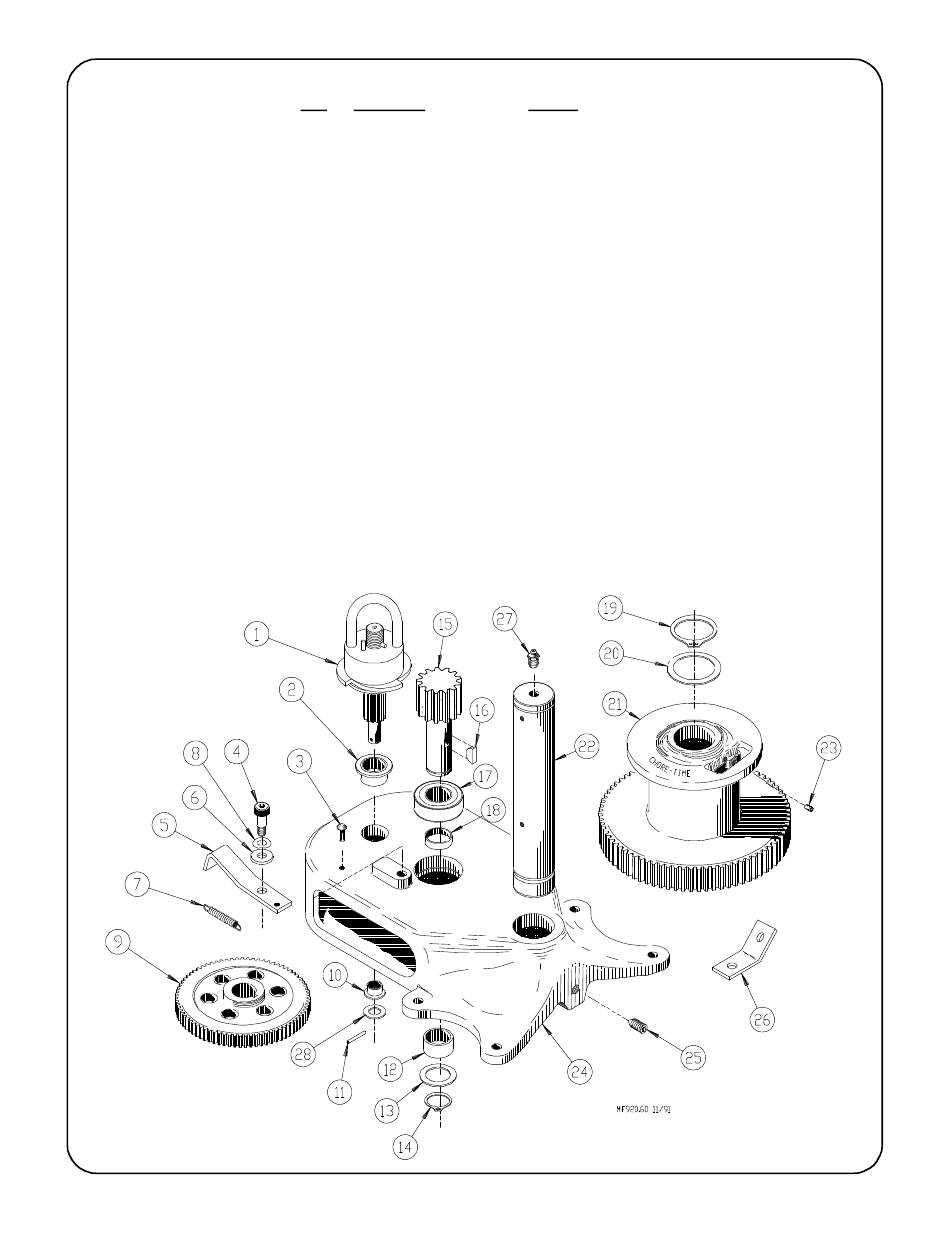

2883 Power Winch

Item Description
1 Input Shaft Assembly
2 Flange Bushing
3 Drive Stud
4 Shoulder Bolt
5 Pawl
6 Spring Washer
7 Spring
8 5/16" Flat Washer
9 Intermediate Gear
10 Flange Bushing
11 Spirol Pin
12 Bushing
13 Washer
14 Retaining Ring
15 Drive Pinion
16 Woodruff Key
17 1" Bearing
18 Spacer
19 Retaining Ring
20 Washer
21 Winch Drum
22 Drum Shaft
23 Setscrew
24 Winch Frame
25 Setscrew
26 Cable Hook
27 Grease Zerk
28 Washer
• Page 73
Part No.
14885
2967-2
4128-1
4022-2
6672
4023
1543
2255-44
2890
3252
2960-3
2967-4
2955-1
2958-1
2962
2959
4937
4936
3556
2955-2
3723
3637
603
3719
3727
2985
24499
2499
