Optional Intermediate Controls may be used for partial house brooding, as shown in
Figure 1.
S y s t e m s w i t h l i n e l e n g t h s o v e r 4 0 0 ' ( 1 2 2 m ) s h o u l d b e s p l i t i n t h e c e n t e r , a s
s h o w n i n F i g u r e 2 . T h i s w i l l r e d u c e a u g e r r u n n i n g t i m e a n d e l i m i n a t e t h e n e e d
f o r I n t e r m e d i a t e C o n t r o l s f o r p a r t i a l h o u s e b r o o d i n g .

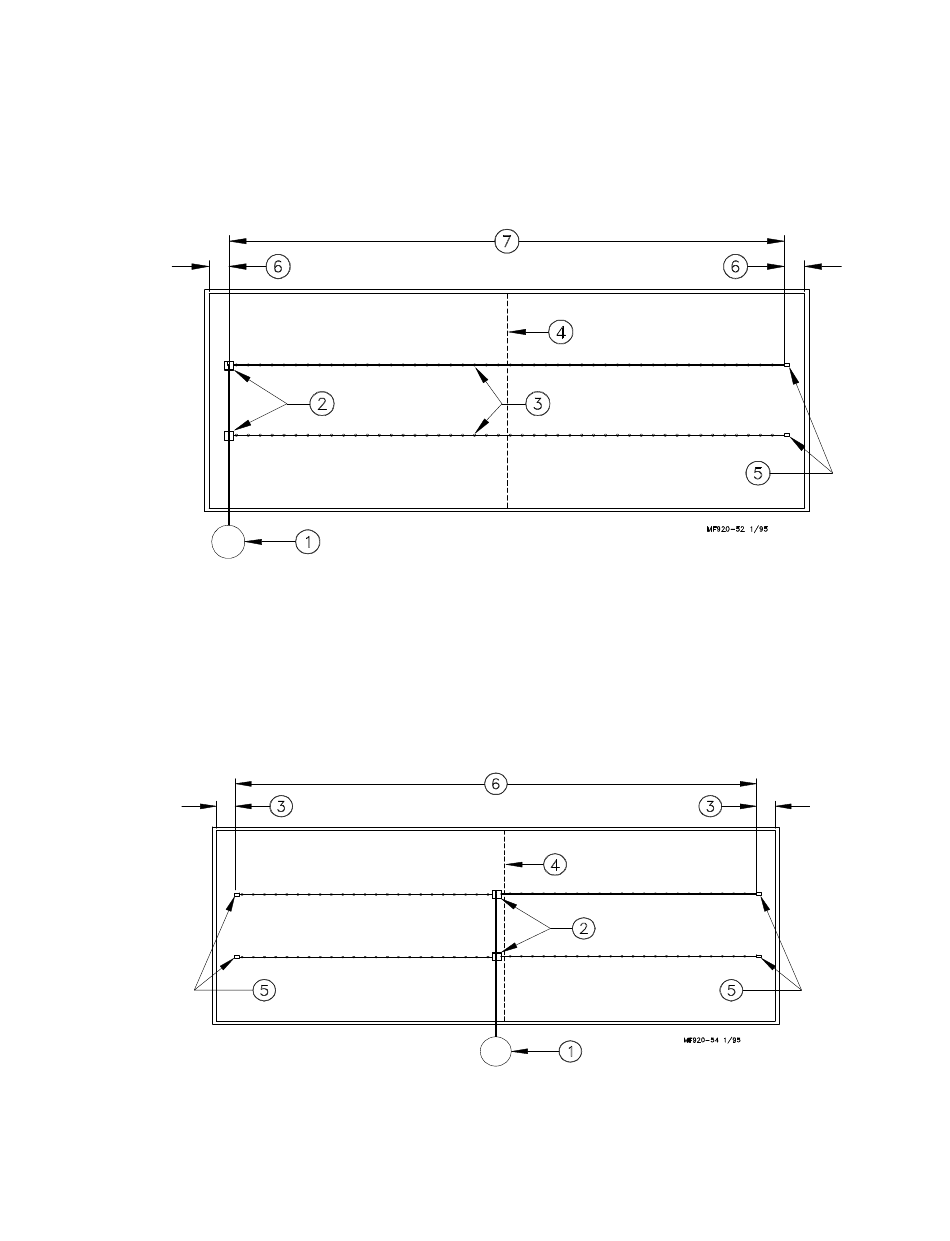

Figure 1. Component location diagram for systems
up to 400 feet (122 m). (Top View).
Figure 2. Component location diagram for systems
over 400 feet (122 m). (Top View).
Model C, C2, G, & H2 Operator's Manual
• Page 11
K e y D e s c r i p t i o n
1 F e e d B i n
2 F e e d H o p p e r
3 I n t e r m e d i a t e C o n t r o l
4 B r o o d C u r t a i n
5 E n d C o n t r o l / P o w e r U n i t
6 1 0 ' ( 3 m ) m i n i m u m
7 U p t o 4 0 0 ' ( 1 2 2 m )
K e y D e s c r i p t i o n
1 F e e d B i n
2 F e e d H o p p e r s
3 1 0 ' ( 3 m ) m i n i m u m
4 B r o o d C u r t a i n
5 E n d C o n t r o l s / P o w e r U n i t
6 O v e r 4 0 0 ' ( 1 2 2 m )
