AD7195
Continuous Conversion Mode
Continuous conversion is the default power-up mode. The
AD7195 converts continuously, and the RDY bit in the status
register goes low each time a conversion is complete. If CS is
low, the DOUT/ RDY line also goes low when a conversion
is completed. To read a conversion, the user writes to the
communications register, indicating that the next operation is
a read of the data register. When the data-word has been read
from the data register, DOUT/ RDY goes high. The user can
read this register additional times, if required. However, the
user must ensure that the data register is not being accessed at
the completion of the next conversion or else the new conversion
word is lost.
CS
DIN
DOUT/RDY
SCLK
Downloaded from Elcodis.com electronic components distributor
When several channels are enabled, the ADC continuously
loops through the enabled channels, performing one conversion
on each channel per loop. The data register is updated as soon
as each conversion is available. The DOUT/ RDY pin pulses low
each time a conversion is available. The user can then read the
conversion while the ADC converts on the next enabled channel.
If the DAT_STA bit in the mode register is set to 1, the contents
of the status register are output along with the conversion each
time that the data read is performed. The status register
indicates the channel to which the conversion corresponds.
0x58
DATA

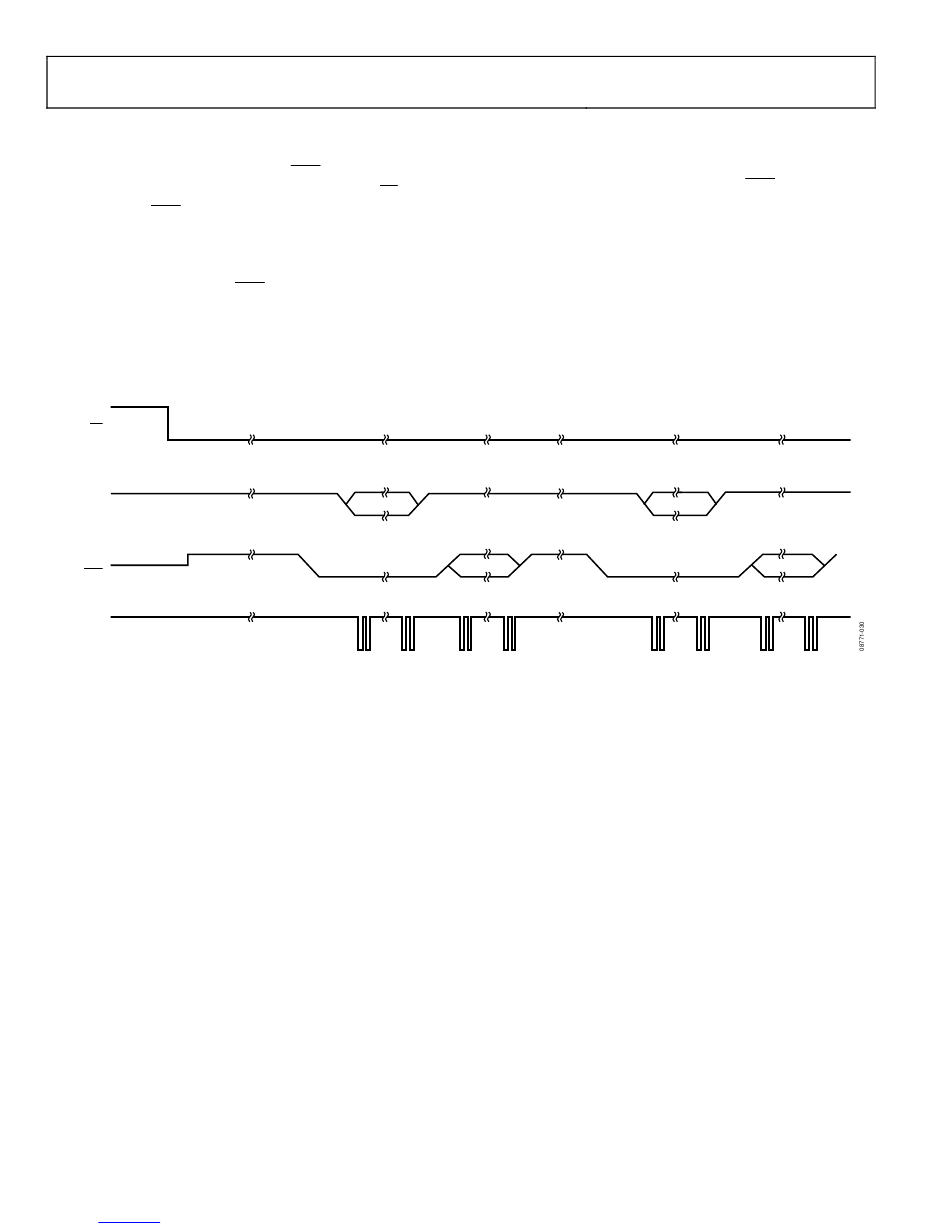

Figure 22. Continuous Conversion
Rev. 0 | Page 30 of 44
0x58
DATA
