Johnson Controls METASYS IFC-1010 Hardware Installation page 88

24 VDC Four Wire Smoke Detector Power
Up to one ampere for four wire smoke detectors can be drawn from TB3
Terminals 1 (+) and 2 (-). Power is removed from these terminals during
system reset. This 24 VDC regulated source is power-limited but must be
supervised via an end-of-line power supervision relay (refer to Figure 62
and Figure 63).
SLC Loop
Channel A
RA400Z
MPS-24A/E, TB3 Terminal 1 (+) and 2 (-)
APS-6R, TB2 Terminal 1 (+) and 2 (-)

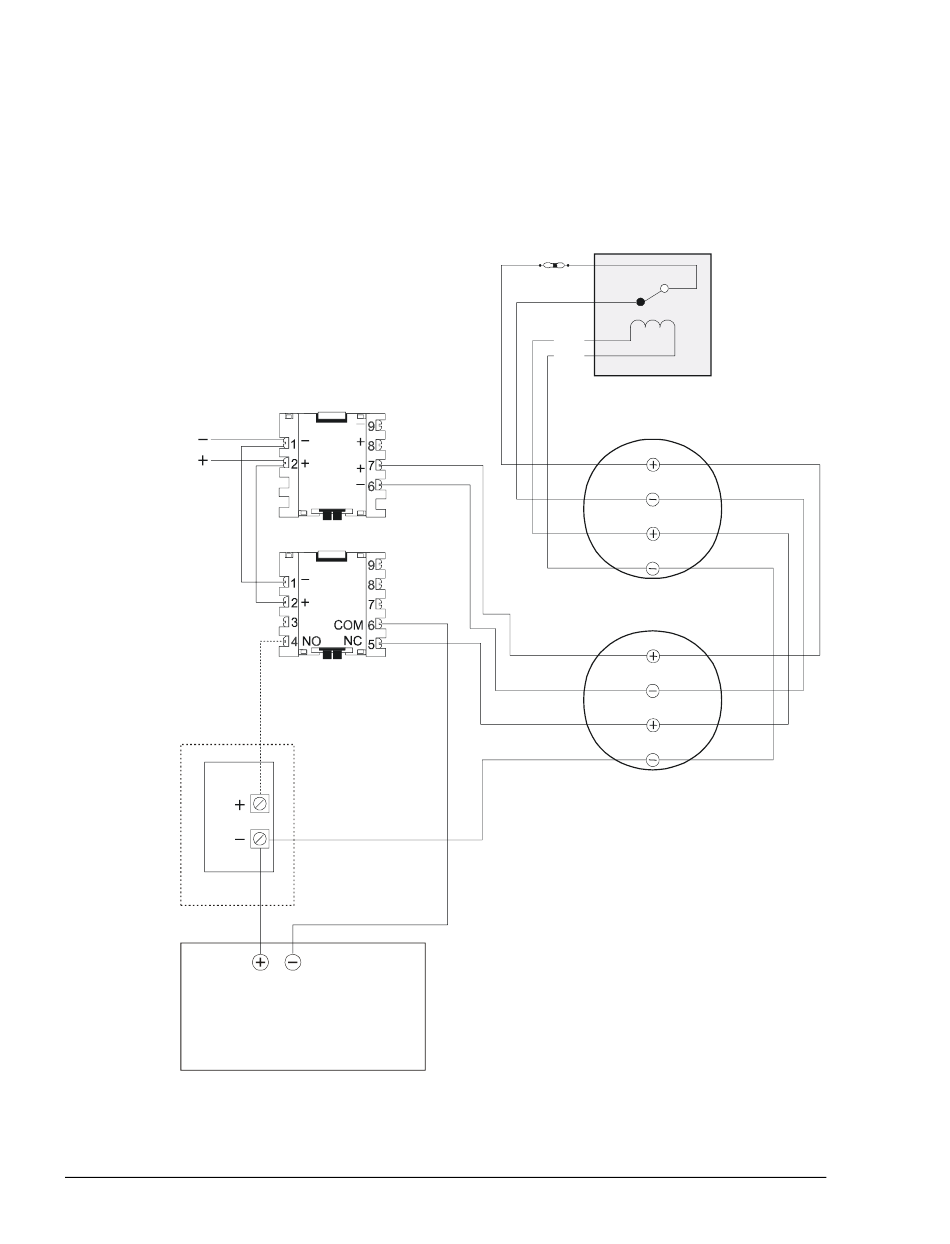

Figure 62: Employing Four Wire Smoke Detectors (Style B IDC)
88 Hardware Installation—Installing the IFC-1010/2020
All manuals and user guides at all-guides.com
47K ELR, 1/2W,
Part Number A2143-20
Software
M500MJ
Type SCON
M510CJ Software
Type PWRC
Break tabs.
The M510CJ resets power
to the detectors. It is not
needed for power supplies
using resettable smoke power.
The RA400Z
annunciates the reset
of smoke detector
power. It is optional.
Power-limited
UL Listed 24 VDC
Power Supply for
Fire Protective Signaling
or
and Terminal 3 (+) and 4 (-)
UL Listed
Supervision
Red
Black
IDC (+)
IDC (-)
24 VDC (+)
Common (-)
UL Listed 24 VDC
Four Wire Detectors
IDC (+)
IDC (-)
24 VDC (+)
Common (-)
Power
Relay
stylbidc
N29
