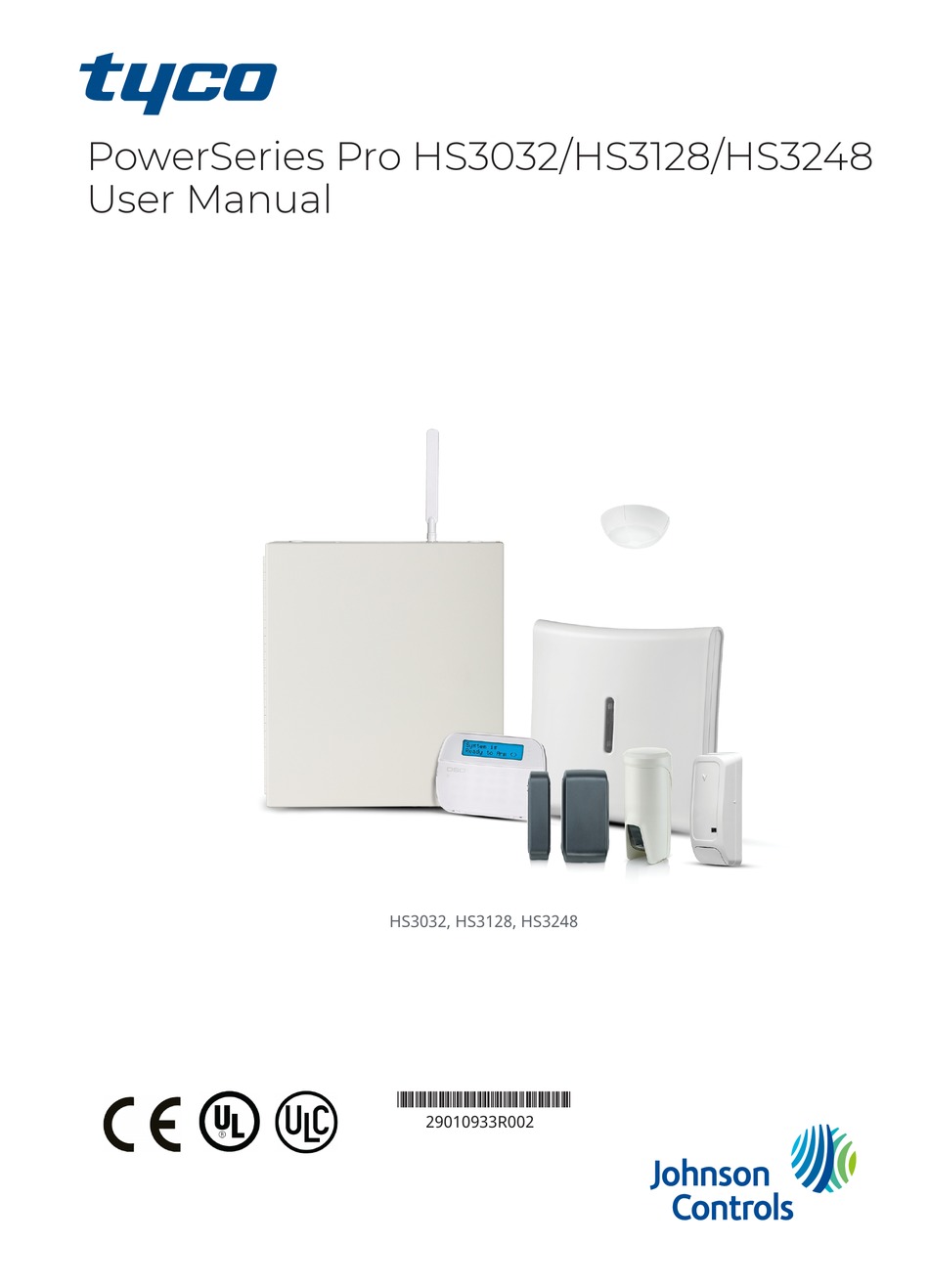

PowerSeries Pro HS3032/HS3128/HS3248
User Manual
HS3032, HS3128, HS3248
*29010933R002*
29010933R002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tyco PowerSeries Pro HS3032 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls Tyco PowerSeries Pro HS3032

Summary of Contents for Johnson Controls Tyco PowerSeries Pro HS3032

  • Page 1 PowerSeries Pro HS3032/HS3128/HS3248 User Manual HS3032, HS3128, HS3248 *29010933R002* 29010933R002...
  • Page 2 PowerSeries Pro HS3032/HS3128/HS3248 User Manual...

  • Page 3: Table Of Contents

    Contents Quick reference.............................. 7 Safety instructions............................8 The PowerSeries Pro security system......................9 General system operation........................9 Carbon monoxide detection......................9 Fire detection............................9 Testing the system..........................9 Performing a keypad and siren test....................10 Monitoring............................10 Maintenance............................10 Applicable models..........................10 Securing the premises..........................
  • Page 4 Correcting an arming error........................18 Audible exit faults............................ 18 Correcting an exit fault..........................19 Disarming the system........................19 Disarming the system with a keypad....................19 Disarming the system with a wireless key.................... 19 Disarming the system with a proximity tag..................19 Disarming error............................
  • Page 5 Configuring the late to open feature....................29 Setting the late to open time feature..................... 30 Disabling the late to open time feature..................30 Changing the brightness of the LCD keypad................. 30 Changing the contrast of the LCD keypad..................30 Setting the buzzer volume....................... 31 Setting the voice prompt volume....................
  • Page 6 Carbon monoxide detectors......................46 PowerSeries Pro HS3032/HS3128/HS3248 User Manual...

  • Page 7: Quick Reference

    Quick reference The PowerSeries Pro alarm system uses shortcut keys to access options or features on all models of keypads. When using an LCD keypad, the PowerSeries Pro alarm system additionally uses a menu based navigation system. Use the scroll keys to view the list of options contained within the current menu.

  • Page 8: Safety Instructions

    Action Press Arming and Disarming Away arm for 2 seconds + [Access Code†] Stay arm for 2 seconds + [Access Code†] Night Arm When Armed in stay mode [*][1] + [Access Code†] Disarm [Access Code] No-Entry Arming [*][9] + [Access Code†] When the system is disarmed, press * 0 Quick arm Quick exit...

  • Page 9: The Powerseries Pro Security System

    The PowerSeries Pro security system The PowerSeries Pro has been designed to provide the greatest possible flexibility and convenience. Read this manual carefully and have the installer provide instructions on how to operate the system and which features have been implemented. All users of this system should be equally instructed in its use.

  • Page 10: Performing A Keypad And Siren Test

    Important: You must test all the smoke detectors yearly. Performing a keypad and siren test To perform a keypad and siren test, complete the following steps: On the keypad, press * 6. Enter your access code. Use the Arrow keys to navigate to System Test, and press *. All keypad sounders, bells, sirens, and keypad LEDs activate for 2 seconds.

  • Page 11: Securing The Premises

    • HS2TCHPRO • HS2TCHPROBLK Securing the premises The PowerSeries Pro provides multiple arming modes as described below: Away Mode Use this mode when there is nobody on the premises. Away mode activates all perimeter and interior sensors in the alarm system. Stay Mode Use this mode when someone is on the premises.

  • Page 12: Canceling The Arming Sequence

    Note: For European installations (EN50131 certified), you can not arm the system without a valid user code. If you do not have a valid user code, do not attempt to initiate the arm sequence for the alarm system. After you initiate the arming sequence, the system completes the following actions: •...

  • Page 13: Canceling The Arming Sequence

    When the Exit Delay timer expires, the system is Armed and the following actions occur: • The Ready indicator remains lit. • The Armed indicator remains on. • The keypad stops sounding. Canceling the arming sequence To cancel the arming sequence, complete the following step: •...

  • Page 14: Arming The System In Night Mode

    Note: Ensure that your installer has provided you with a list identifying all programmed night zones. Your installer can configure a function key to arm the panel in Night mode without the system already being armed in Stay mode. Arming the system in Night mode To arm the system in Night mode, complete the following steps: If the system is configured, press and hold the Night Arm key for 2 seconds.

  • Page 15: Exit Delay Time Restart

    Exit Delay Time Restart This option restarts the exit delay timer if an entry/exit zone is tripped a second time before the end of the exit delay. The exit delay timer can only be restarted once. The Quick Exit feature Use the Quick Exit feature if the system is already armed and you would like to leave without disarming and rearming the system.

  • Page 16: Additional Bypass Features

    Additional bypass features Recall Last Bypass Recalls all zones that were bypassed the last time the bypass zone feature was used. Bypass All Open Zones Allows the user to quickly bypass all open zones with a single command. Clear Bypass Instantly clears all bypass conditions from the zones assigned to the partition.

  • Page 17: Recalling The Last Bypassed Zones

    Recalling the last bypassed zones To recall the last bypassed zones, complete the following steps: On the keypad, press [*] [1]. Optional: If it is necessary, enter an access code, or present a proximity tag to the keypad reader. Choose one of the following options: - Press [9] [9] [9].

  • Page 18: Loading A Bypass Group

    - Use the [<] [>] keys to scroll to Bypass Options and press [*], and scroll to Program Bypass Group and press [*]. To exit Bypassing mode, press [#]. Loading a bypass group To load a Bypass group, complete the following steps: On the keypad, press [*] [1].

  • Page 19: Correcting An Exit Fault

    Correcting an exit fault Re-enter the premises. Disarm the system before the entry delay timer expires by entering your access code, or using a proximity tag, or wireless key. Follow the Away arming procedure again, making sure to close the entry/exit door properly. For more details see: “Away arming the System with the Keypad”.

  • Page 20: Using Emergency Keys

    Priority Type of Alarm What you hear Fire Temporal (3 beeps then a pause) or pulsed siren (continuous beeping) Carbon Monoxide 4 beeps, 5 second pause, 4 beeps Intrusion (Burglary) Continuous siren Flood 1 second on, 3 seconds off, repeating Using emergency keys Important: Use only in an emergency.

  • Page 21: Resetting Smoke Detectors

    Resetting smoke detectors After an alarm condition, reset smoke detectors to exit the alarm condition. Note: Verify with your alarm company if this function is required on your system. To reset the sensors Press and hold the Reset key on the keypad for 2 seconds. If the reset is successful, the alarm is cancelled.

  • Page 22: Alarm Cancel Window

    Alarm Cancel window The control panel provides a period of time in which the user can cancel the alarm transmission (minimum duration is 5 minutes). If the programmed alarm transmission delay has expired, canceling an alarm sends a message to the monitoring station. Upon a successful transmission of the cancellation message, the keypad beeps 6 times.

  • Page 23: Managing Users

    Note: Proximity tags must be enrolled on the system (see "Enrolling and Deleting Proximity Tags"). Managing Users The maximum number of access codes are as follows: • 72 for HS3032 • 1000 for HS3128 • 1000 for HS3248 Each user access code can be: •...

  • Page 24: Opening The Access Codes Menu

    Code type Description Master code By default, the master code can access all partitions and can perform any keypad function. This code can be used to program all access codes, including the supervisor and duress codes. The master code number is [01]. User codes This type of access code is used to arm and disarm assigned partitions and can access the User Functions menu.

  • Page 25: Enrolling A Proximity Tag

    Choose one of the following options: - Use the Arrow keys to navigate to the user, and press * *. - Enter the user number, and press **. Note: A dash indicates that there is no user code that corresponds to the user number. Enter a new four, six, or eight digit access code.

  • Page 26: User Labels

    User labels You can add a user label using the keypad to give a user a unique name. You can input letters and numbers using the keypad to add or edit user labels. Each number on the keypad corresponds to three letters and one number.

  • Page 27: Configuring Additional User Options

    Configuring additional user options You can also assign users the following additional options: Table 6: User options [1] Supervisor Code For more information see "Access Code Types". [2] Duress Code For more information see "Access Code Types". [3] Zone Bypass Grants the user the ability to bypass zones.

  • Page 28: Viewing The Event Buffer

    Viewing the event buffer The event buffer displays a list of the last 500 events on the HS3032, and the last 1000 events on the HS3128/HS3248. You can only view the event buffer using an LCD keypad. To view the event buffer, complete the following steps: On the keypad, press * 6.

  • Page 29: Disabling The Auto Arm Time

    Disabling the auto arm time To disable the auto arm time, complete the following steps: On the keypad, press * 6. Enter your access code. Use the Arrow keys to navigate to Auto Arm Time, and press *. Navigate to the day of the week and press *. Enter 9999.

  • Page 30: Setting The Late To Open Time Feature

    Enter your access code. Use the Arrow keys to navigate to Late to Open. Press * to enable or disable the feature. Setting the late to open time feature To set the late to open time feature, complete the following steps: On the keypad, press * 6.

  • Page 31: Setting The Buzzer Volume

    Press # . Setting the buzzer volume To set the buzzer volume, complete the following steps: On the keypad, press * 6. Enter your access code. Use the Arrow keys to navigate to Buzzer Control, and press *. Navigate to the volume level that you want. Press #.

  • Page 32: Initiating A Walk Test

    must contact the monitoring station and provide the code that's displayed on the keypad. The monitoring station operator will provide a different 5-digit code that the user can enter at the system keypad, which will clear the remote reset condition, allowing the panel to be armed again. Some user functions are still available while the system is locked out.

  • Page 33: Canceling A Walk Test

    Canceling a walk test To cancel a walk test, complete the following steps: On the keypad, press * 6. Enter your access code. Use the Arrow keys to navigate to Walk Test. Press * to cancel the test. Managing partitions A partition is a limited area of the premises which operates independently from the other areas.

  • Page 34: Fire And Co Zone Types

    To loan a keypad to another partition, complete the following steps: Press and hold # for two seconds. Enter your access code. Use the Arrow keys to navigate to a partition, and press *. The keypad is temporarily loaned to this partition. If the keypad is inactive for more than 30 seconds, it reverts to its original partition.

  • Page 35: Turning The Chime On Or Off

    - For quick access, press [*] [*], and scroll through the menu to view the temperature capable zones. To exit, press [#]. Turning the chime on or off Turning the chime on audibly notifies you when an entry/exit sensor is activated. To turn the chime on or off, complete the following step: •...

  • Page 36: Configuring A Command Output To Follow A Schedule

    Use the Arrow keys to navigate to the output control option you want, and press *. Enter your access code to activate the command output. Configuring a command output to follow a schedule To configure a command output to follow a schedule, complete the following steps: On the keypad, press * 7.

  • Page 37: Trouble Conditions

    Trouble conditions When a trouble condition occurs your Alarm System identifies the problem and displays an error message. Refer to the table below when you see an error message on the display. If additional help is required, contact your distributor for service. When the system detects a trouble condition the following occurs: •...
  • Page 38 Table 8: Trouble conditions Trouble Condition Trouble Level 1 Description Trouble Types Trouble Level 2 Notification Level 3 Battery Trouble The system has Low Battery detected a battery No Battery trouble condition. Low Battery Module 1-4 Call for service. High-current O/P No Battery Module 1-4 High-current O/P...
  • Page 39 Table 8: Trouble conditions Trouble Condition Trouble Level 1 Description Trouble Types Trouble Level 2 Notification Level 3 Device Faults The system has Zone Zone label or 001-248 detected an issue Keypad Keypad 1-32 with one or more Siren Siren 1-16 connected devices.
  • Page 40 Table 8: Trouble conditions Trouble Condition Trouble Level 1 Description Trouble Types Trouble Level 2 Notification Level 3 Module Tampers The system has HSM2HOST detected a tamper Keypad Keypad 1-32 condition with one Zone Expander Zone Expander 1-30 or more modules Power Supply Power Supply 1-4 on the system.

  • Page 41: Reference Sheets

    Reference sheets Fill out the following information for future reference and store this guide in a safe place. System information o [F] FIRE o [M] MEDICAL o [P] PANIC The Exit Delay Time is _______ seconds. The Entry Delay Time is _______ seconds. Service contact information Central Station Information Account #: _____________________ Telephone #: _____________________...

  • Page 42: Access Codes

    Access codes Master Code [01] : _________________________ User Access code User Access code User Access code User Access code Note: Copy this page as needed to record additional access codes. PowerSeries Pro HS3032/HS3128/HS3248 User Manual...

  • Page 43: Sensor And Zone Information

    Sensor and zone information Zone Protected area Sensor type Zone Protected area Sensor type Note: Copy this page as needed to record additional zone information. PowerSeries Pro HS3032/HS3128/HS3248 User Manual...

  • Page 44: Locating Detectors And Escape Plan

    Locating detectors and escape plan The following information is for general guidance only and it is recommended that local fire codes and regulations be consulted when locating and installing smoke and CO alarms. Smoke detectors Research has shown that all hostile fires generate smoke to a greater or lesser extent. Experiments with typical fires in homes indicate that detectable quantities of smoke precede detectable levels of heat in most cases.

  • Page 45: Fire Escape Planning

    Figure 1 Figure 2 Figure 3 Figure 3a Figure 4 Fire escape planning There is often very little time between the detection of a fire and the time it becomes deadly. It is very important that an emergency escape plan be developed and rehearsed. •...
  • Page 46 • Write the fire escape plan down and rehearse it frequently so that should an emergency arise, everyone will know what to do. Revise the plan as conditions change, such as the number of people in the home, or if there are changes to the building’s construction. •...
  • Page 47 off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Re-orient the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Page 48 Changes in Telephone Company Equipment or Facilities The Telephone Company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the Telephone Company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.
  • Page 49 FCC AND ISED CANADA FOR WIRELESS KEYPADS WARNING: To comply with FCC and ISED Canada RF exposure compliance requirements, the HS2LCDRFPRO9 or HS2LCDWFPRO9, and HS2LCDWFVPRO9 keypads should be located at a distance of at least 20 cm from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with any other antenna or transmitter.
  • Page 50 Hereby, Tyco Safety Products Canada Ltd declares that the radio equipment type is in compliance with Directive 2014/53/EU. The full text of the EU declarations of conformity for the models mentioned below are available at the following internet addresses: HS2LCDPRO: http://dsc.com/pdf/1903004 HS2TCHPRO(BLK): http://dsc.com/pdf/1903007...
  • Page 51 Important If using a remote device to remotely set/unset your intruder alarm system, your attention is drawn to the fact that whenever a premises is unattended but its intruder alarm system(s) is (are) not fully set, any related insurance cover might be inoperative. For advice on this matter, it is recommended that you consult your insurer(s).”...
  • Page 52 (b) Separation of Components - The SOFTWARE PRODUCT is licensed as a single product. Its component parts may not be separated for use on more than one HARDWARE unit. (c) Single INTEGRATED PRODUCT - If You acquired this SOFTWARE with HARDWARE, then the SOFTWARE PRODUCT is licensed with the HARDWARE as a single integrated product.
  • Page 53 Not all products include all features. Availability varies by region; contact your sales representative. © 2019 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and DSC are trademarks and/or registered trademarks. Unauthorized use is strictly prohibited. Toronto, Canada ∙ www.dsc.com Tech support: 1-800-3630 (Canada and U.S), or 1-905-760-3036 (International)
