Johnson Controls METASYS IFC-1010 Hardware Installation page 32

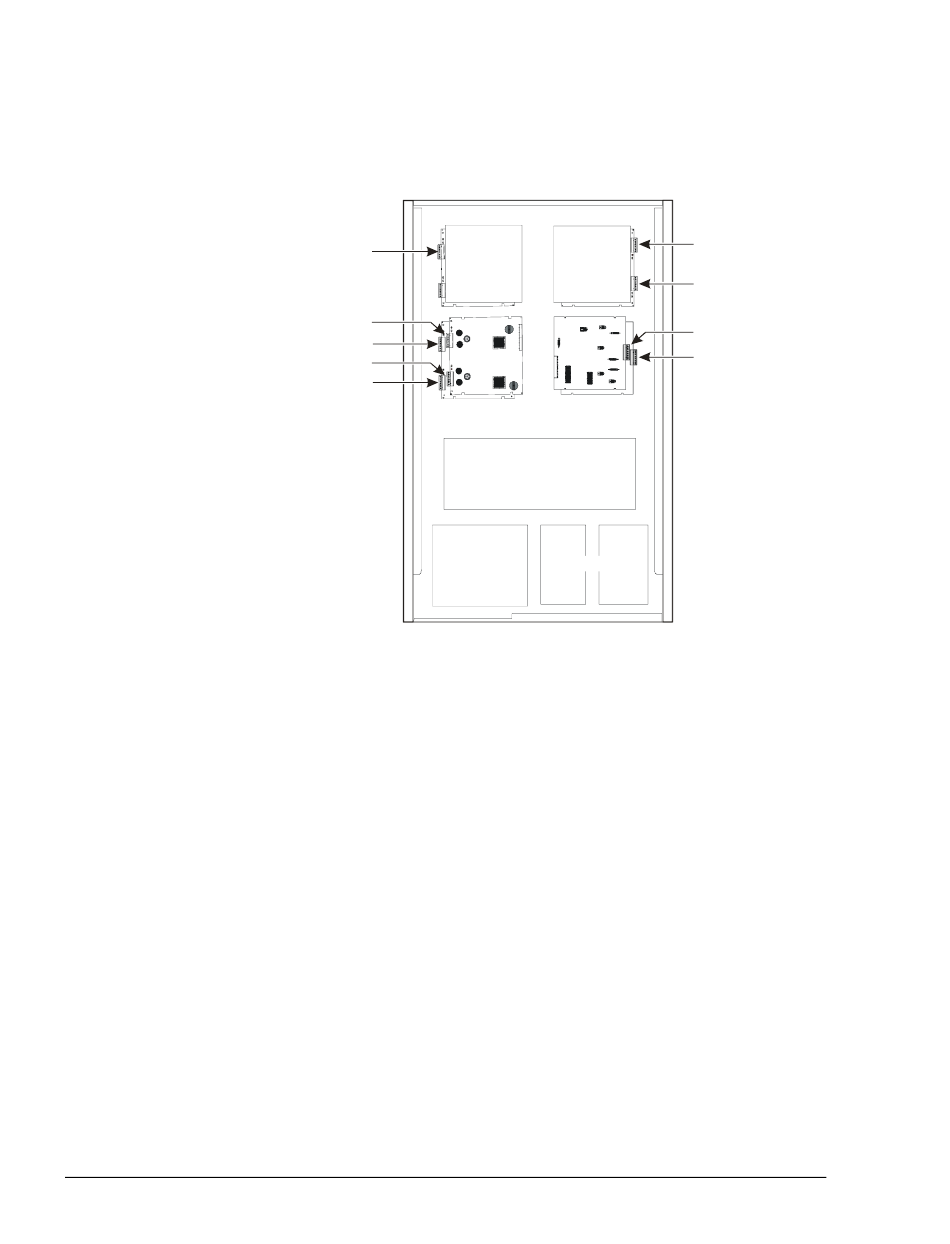

Figure 24 depicts a CAB-C3 cabinet used with LIB-400 modules
exclusively, which means it may house a maximum ten loop IFC-2020
system. AN ICA-4L or ICA-4 chassis (neither of which is shown in the
figure) is required for mounting the LIB-400.
32 Hardware Installation—Installing the IFC-1010/2020
All manuals and user guides at all-guides.com
Loop 1
SIB
Loop 3
Loop 5
Loop 8
Loop 10
A
MPS-24A
Figure 24: LIB-400 Placement in an IFC-2020
CPU
CHS-4/4L
B C D
Batteries
lib400pl ex
Loop 7
Loop 2
Loop 9
Loop 4
N34
