The XP Series Transponder provides the IFC-1010/2020 system with an
XP Series
efficient multiplex subsystem capability and standalone operation in case
Transponder
of failure. The XP Transponder communicates directly with the control
panel's CPU along the SLC communications loop.
The XP Transponders are extremely effective in both high-rise and
low-rise buildings where power losses over long wiring distances dictate
the use of remote control equipment, amplifiers, or audio/visual power
supplies. Each XP Transponder may contain up to three expansion
modules, each with up to eight IDCs, NACs, or Form-C relays. To the
IFC-1010/2020, XP Transponder circuits appear as individual monitor or
control modules.
BE-XP The BE-XP includes the XPP-1 Transponder Processor Module, an XPDP
Transponder
dress panel (refer to Figure 76), a CHS-4 chassis, all required cables, and
Starter
instructions. The XPP-1 module provides two field-programmable
Complement
addressable dual Form-C relays.
(Power-limited)
XPC-8 Control Provides eight Class B or four Class A Notification Appliance Circuits.
Module
For audio evacuation applications, the XPC-8 can drive eight speaker
(Power-limited)
circuits Style Y (Class B) or four Style Z (Class A), or can be alternately
configured to control and annunciate fireman's telephone circuits.
All manuals and user guides at all-guides.com
XP
SERIES
Transponder Status
Press To:
Silence
Reset
Display
Troubles
Lamp Test

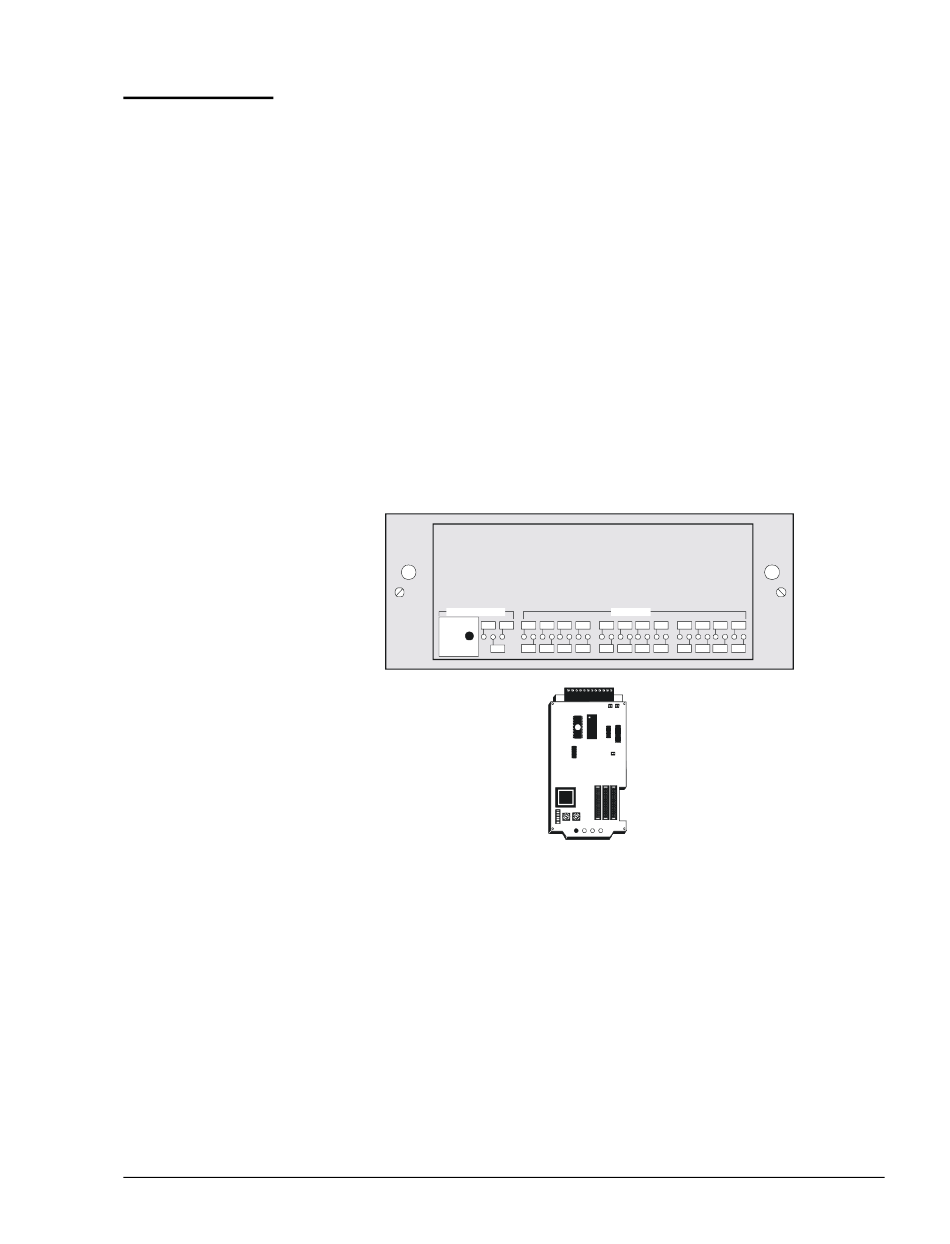

Figure 76: XP Dress Panel and XPP-1 Module
Hardware Installation—Installing the IFC-1010/2020
N3
XP Dress Panel (XPDP)
TRANSPONDER
Circuit Status
1 3 5 7 9 11 13 15 17
2 4 6 8 10 12 14 16 18
12 11 10 9 8 7 6 5 4 3 2 1
JP2 JP3
JP4
P1 P2 P3
XPP-1 Module
19 21 23
20 22 24
xpdpxpp1
