7

Extension connectors

Six extension connectors are implemented on the STM32U5 Nucleo-144 board:
• Zio connectors (CN7, CN8, CN9, and CN10) supporting ARDUINO
• ST morpho connectors (CN11 and CN12)
7.1
Zio connectors supporting ARDUINO
The Zio connectors (CN7, CN8, CN9, and CN10) are female connectors supporting the ARDUINO
standard. Most shields designed for ARDUINO
Caution: Most of the STM32 microcontroller I/Os are 5 V‑tolerant, but few of them are only 3V3‑compatible, while
®
ARDUINO Uno V3 is 5 V‑compatible. Refer to the STM32U5 Series data brief and STM32U5xx product
datasheets for their I/O structure.
The related pinout for the ARDUINO
UM2861 - Rev 5
®
®
can fit the Nucleo board.

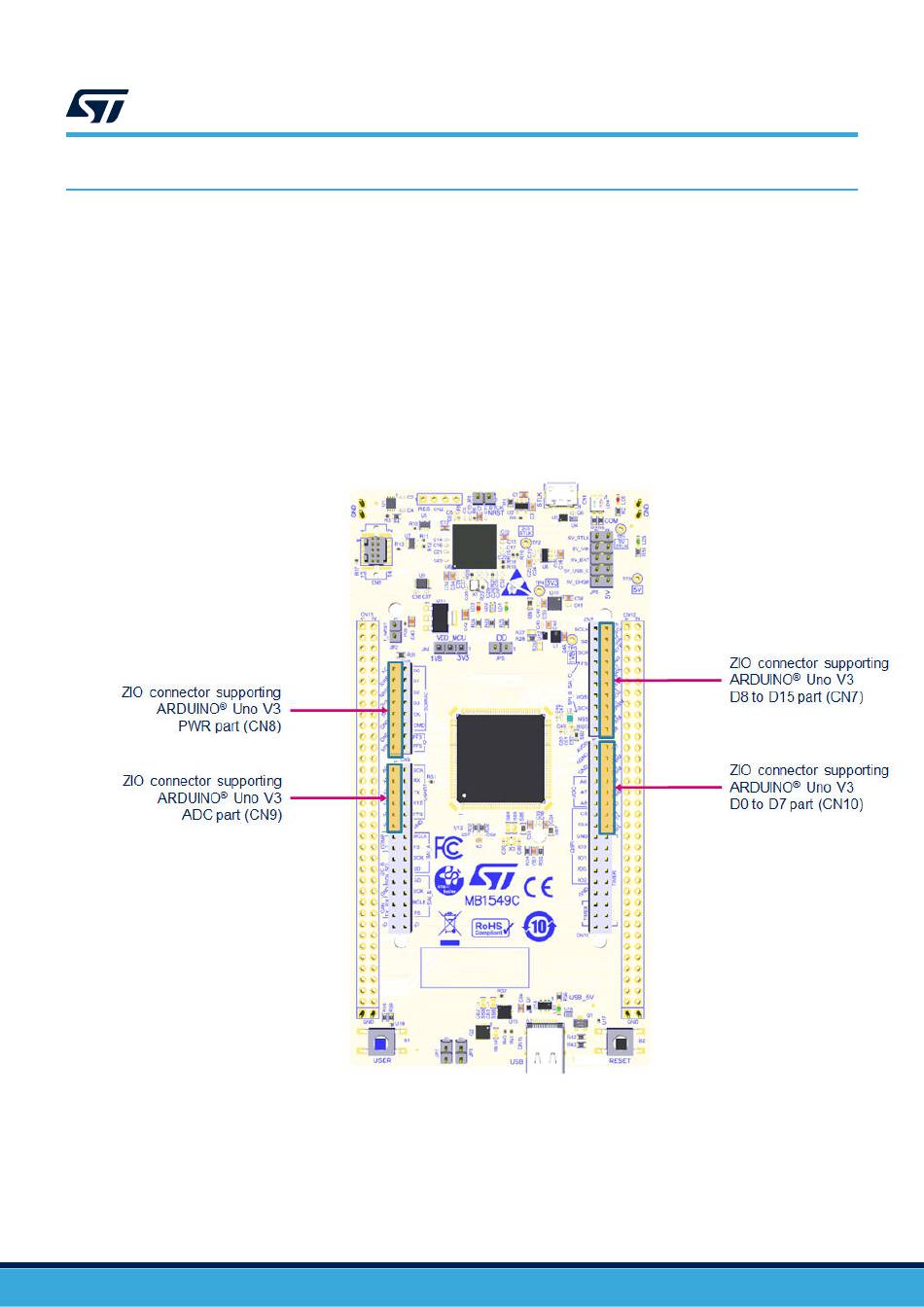

Figure 15. Zio connectors supporting ARDUINO
®
connector is listed in
®
Uno V3
Uno V3
®
Uno V3
Table 15, Table 16, Table
UM2861
Extension connectors
®
Uno V3
17, and Table 18.
page 32/49
