Table 7. Stdc14/Mipi10 Debug Connector (Cn5) Pinout; Figure 8. Stdc14/Mipi10 Debug Connector (Cn5) - ST STM32U5 User Manual

Figure 8 shows the STDC14/MIPI10 connector (CN5).
Table 7 describes the STDC14/MIPI10 connector (CN5) pinout.
MIPI10 pin
-
-
1
2
3
4
5
6
7
8
9
10
-
-
1. Do not connect to the target. It is not connected to the STM32U5 Nucleo-144 board.
2. Input for the external debug tools and output for the STM32U5 Nucleo-144 board.
3. Optional loopback of JTCK on the target side.
4. NC means not required for the SWD connection, not connected on the STM32U5 Nucleo-144 board.
5. Tied to GND. It might be used by the target for the detection of the tool.
6. Output for the external debug tools and input for the STM32U5 Nucleo-144 board.
Two level shifters are used on VCP and SWD interfaces to offer a debug capability with MCU powered by a 1.8 V
power source. The level Shifters are used for signals from target MCU (1.8/3.3 V) to STLINK-V3E (3.3 V).
UM2861 - Rev 5

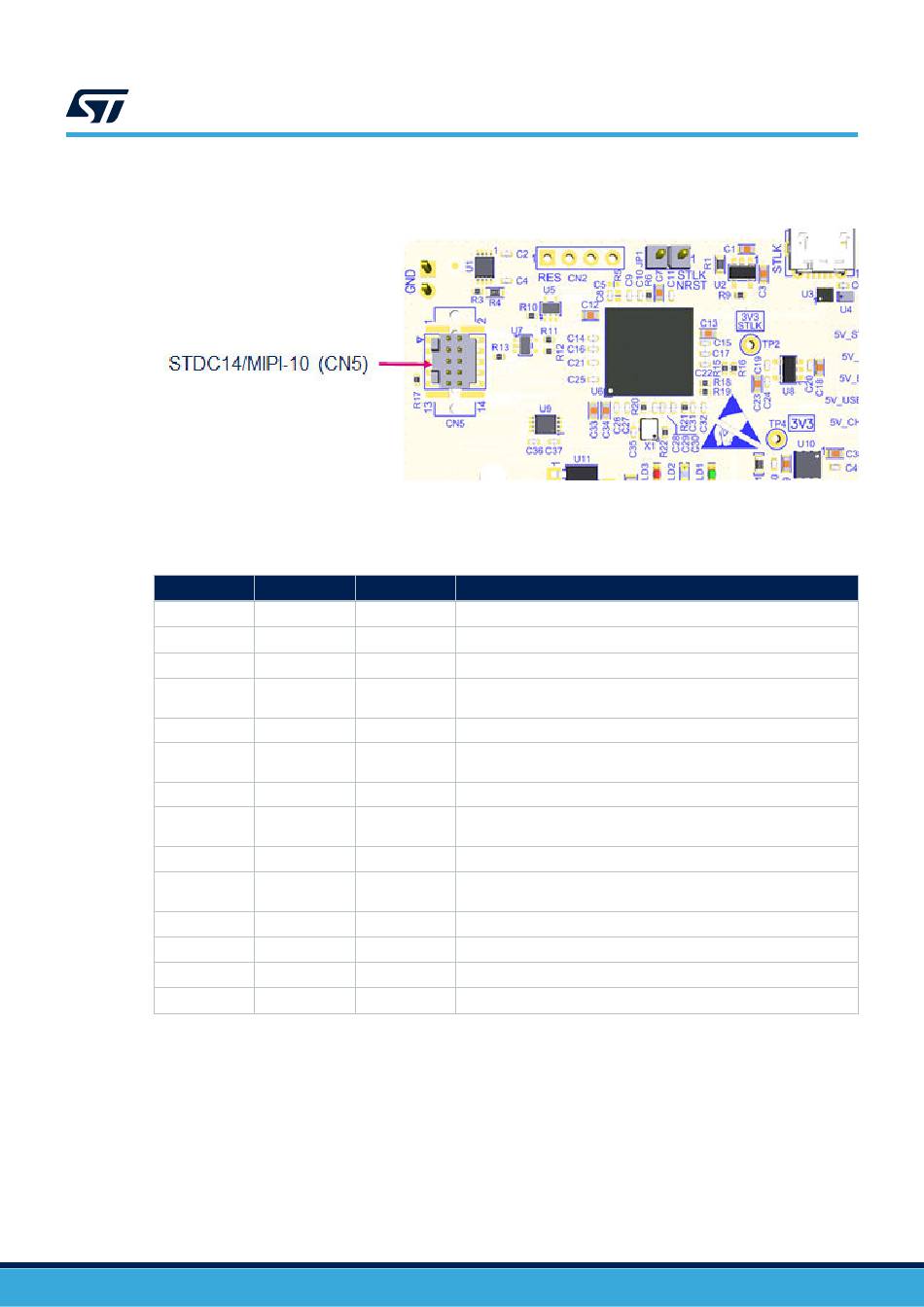

Figure 8. STDC14/MIPI10 debug connector (CN5)
