UM2861
Power supply and power selection
5V_USB_C is the DC power source coming from the 5V USB connector (CN15). The 5V jumper selection (JP6)
must be set on [7-8] and must be connected as shown in Figure 12.

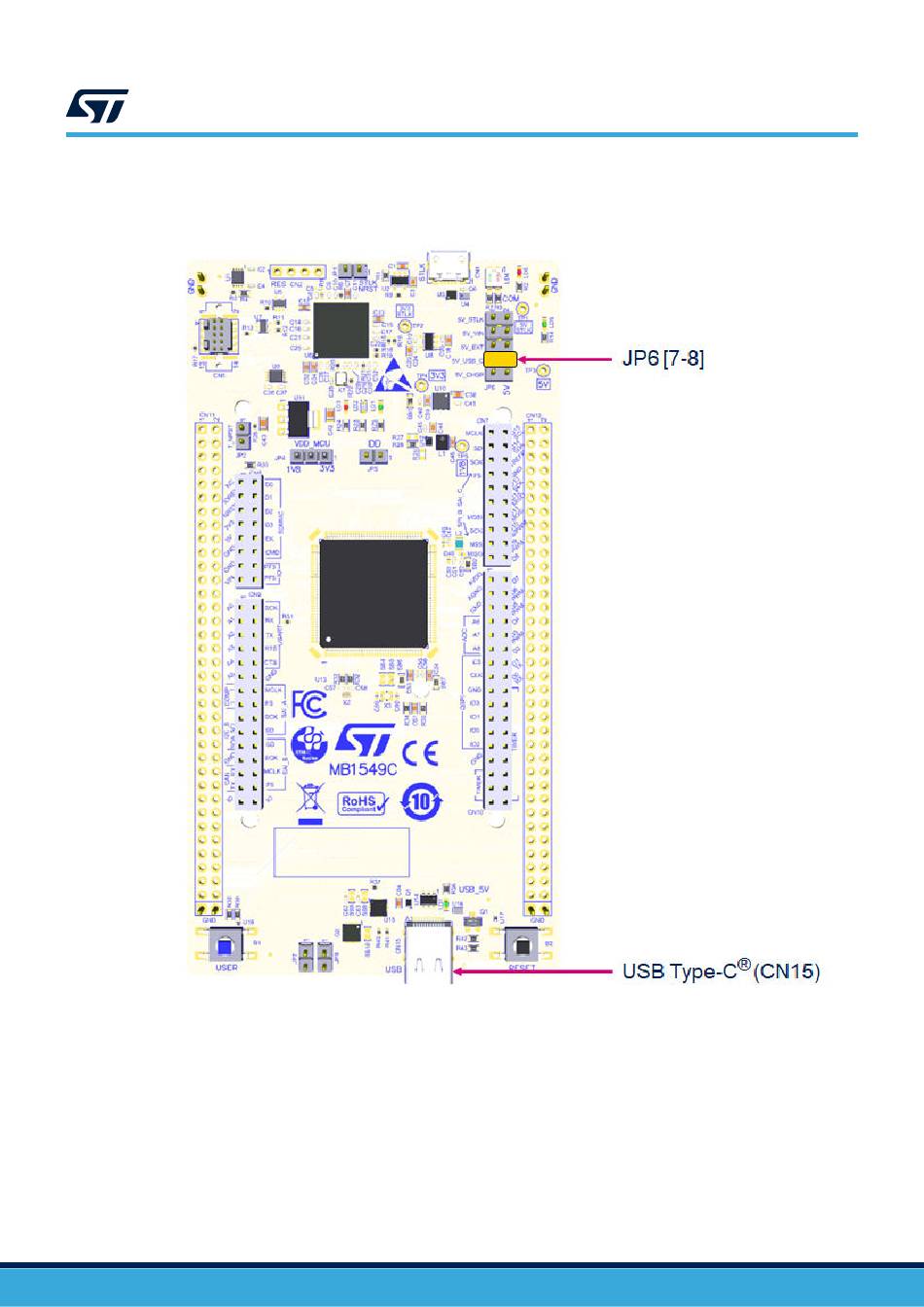

Figure 12. JP6 [7-8]: 5V_USB_C power source
UM2861 - Rev 5
page 20/49
