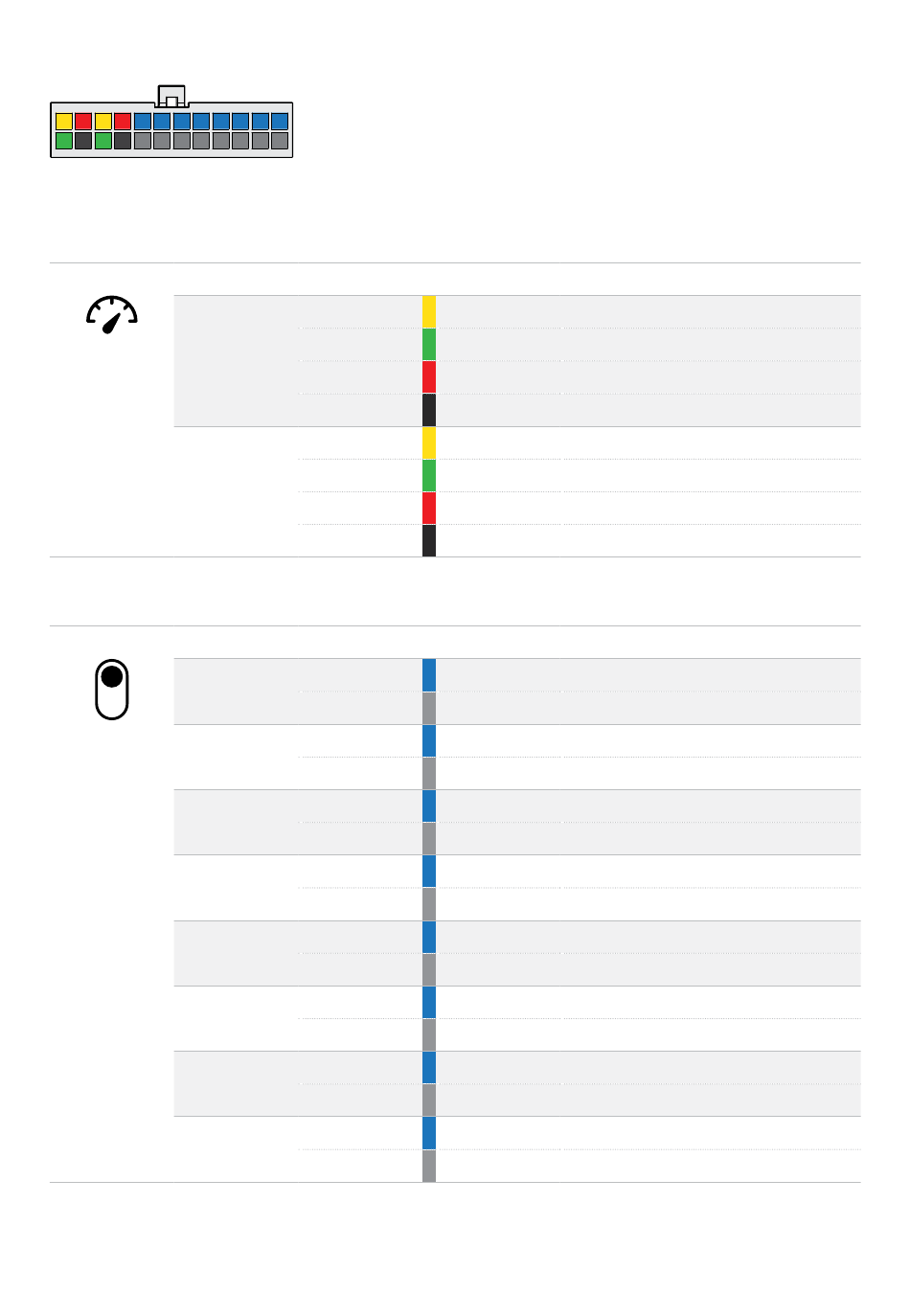

INPUT CABLE CONNECTOR (E) PINOUTS
24 23 22 21 20 19 18 17 16 15 14 13
12 11 10 9 8 7 6 5 4
(Wire entry view)
SENSORS
Channel ID
E A1
E A2
SWITCHES
Channel ID
3 2 1
Terminal
24
12
23
11
22
10
21
9
Terminal
20
E1
8
19
E2
7
18
E3
6
17
E4
5
16
E5
4
15
E6
3
14
E7
2
13
E8
1
Colour Function
Yellow Sensor Input 1 Sense Positive
Green Sensor Input 1 Sense Common
Red Sensor Input 1 Supply Positive
Black Sensor Input 1 Supply Negative
Yellow Sensor Input 2 Sense Positive
Green Sensor Input 2 Sense Common
Red Sensor Input 2 Supply Positive
Black Sensor Input 2 Supply Negative
Colour Function
Blue Switch Input 1 Positive
Grey Switch Input 1 Common
Blue Switch Input 2 Positive
Grey Switch Input 2 Common
Blue Switch Input 3 Positive
Grey Switch Input 3 Common
Blue Switch Input 4 Positive
Grey Switch Input 4 Common
Blue Switch Input 5 Positive
Grey Switch Input 5 Common
Blue Switch Input 6 Positive
Grey Switch Input 6 Common
Blue Switch Input 7 Positive
Grey Switch Input 7 Common
Blue Switch Input 8 Positive
Grey Switch Input 8 Common
