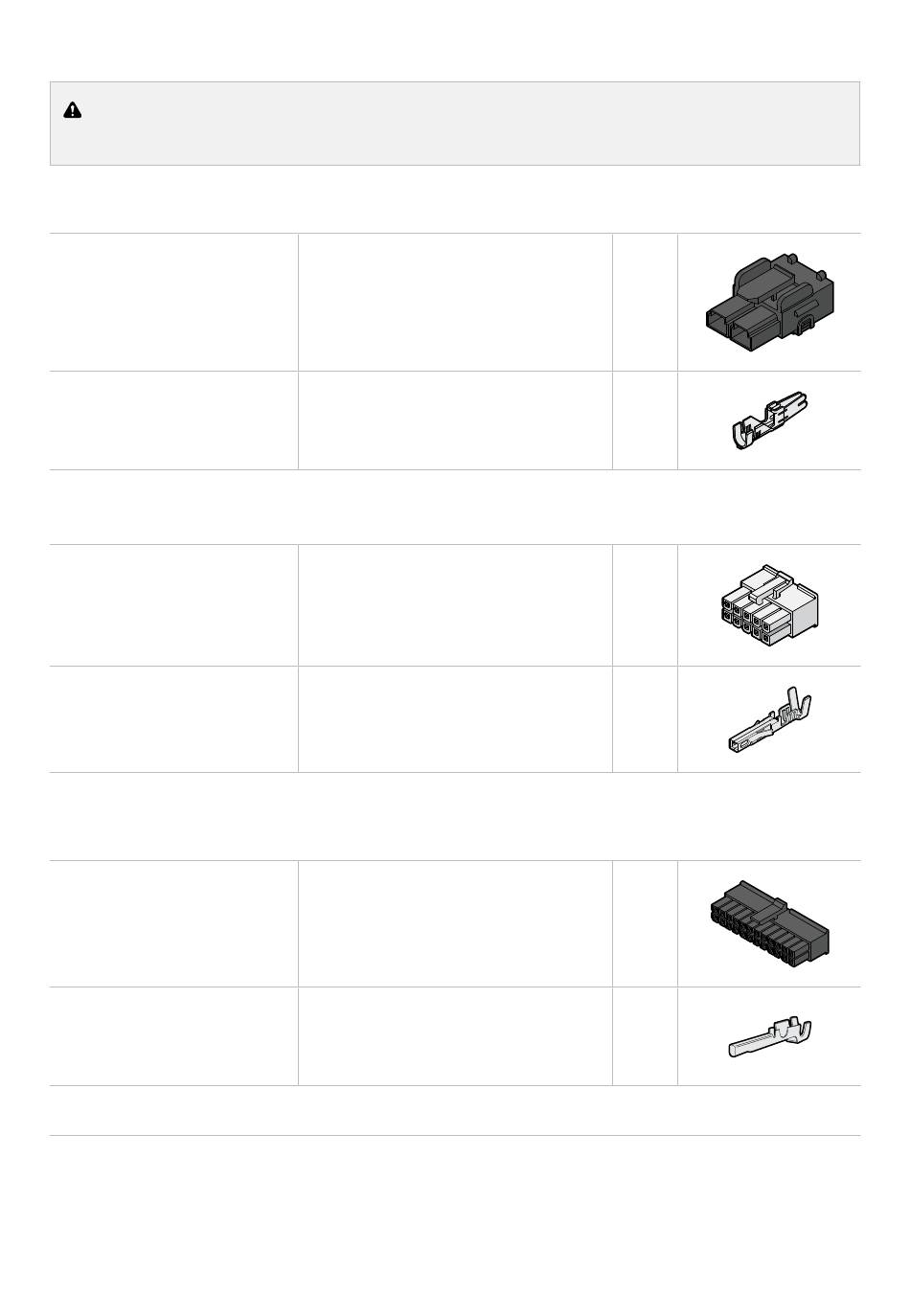

CONNECTOR PART NUMBERS

CAUTION: Installer-supplied connector housings and crimp terminals must be the same as
those specified.
POWER INPUT CABLE CONNECTOR
Molex 428160212
Molex 428150134
OUTPUT CABLE CONNECTOR
Molex 039012100
Molex 457503111 (reel)
INPUT CABLE CONNECTOR
Molex 430252400
Molex 430300001 (reel)
Molex 430300038**
** Alternative option – the larger 18 AWG contact can be used.
10.00 mm Pitch Mini-Fit Sr.
Receptacle Housing, Single Row,
2 Circuit, Black
Mini-Fit Sr. Crimp Terminal, Female,
8 AWG, Silver (Ag)
Mini-Fit Jr. Receptacle Housing, Dual
Row, 10 Circuits, UL 94V-2, Natural
Mini-Fit Plus Crimp Terminal,
16 AWG, Copper (Cu) Alloy, Tin (Sn)
Micro-Fit 3.0 Receptacle Housing,
Dual Row, 24 Circuits, UL 94V-0,
Black
Micro-Fit 3.0 Crimp Terminal,
Female, with Tin Plated Phosphor
Bronze Contact, 20–24 AWG
×1
×2
×2
×20
×1
×24
Technical Specifications | 47
