ABOUT TERMINATING RESISTORS
R-Bus and CAN Bus (Controller Area Network) systems connect devices in a continuous
daisy-chain network. Terminating Resistors must be present at each end of the daisy-chain to
complete the CAN Bus system.

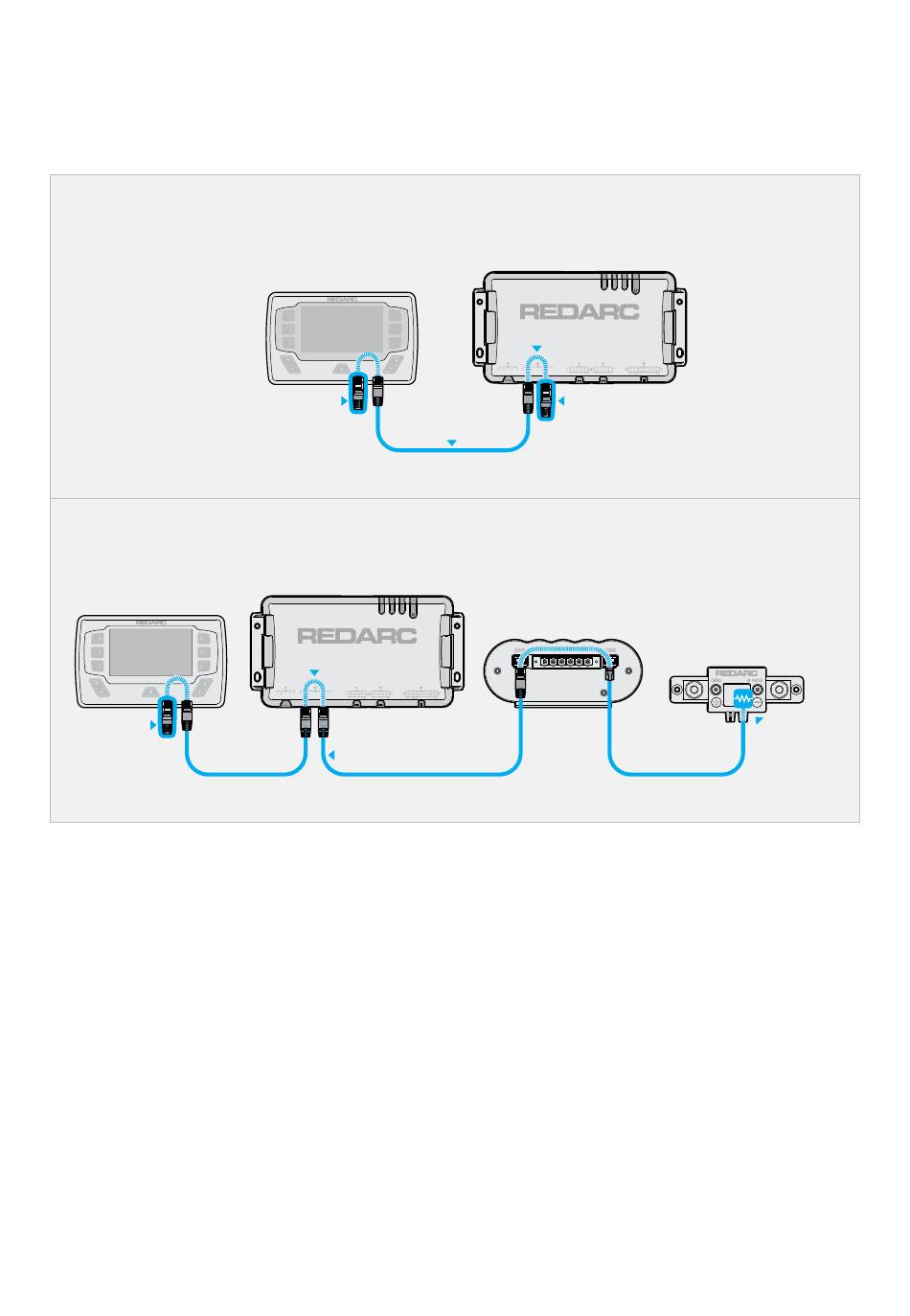

Basic Installation
Terminating Resistor #1
BMS + Battery Sensor Installation
Display
Terminating
Resistor
Display
RJ45 (CAN Bus)
Cable
TVMS Rogue
CAN Bus 'Spine'
RJ45 (CAN Bus) Cables
TVMS Rogue
CAN Bus 'Spine'
Terminating Resistor #2
Manager
Battery Sensor
Installation — Wiring | 31
Terminating
Resistor
(Inbuilt)
