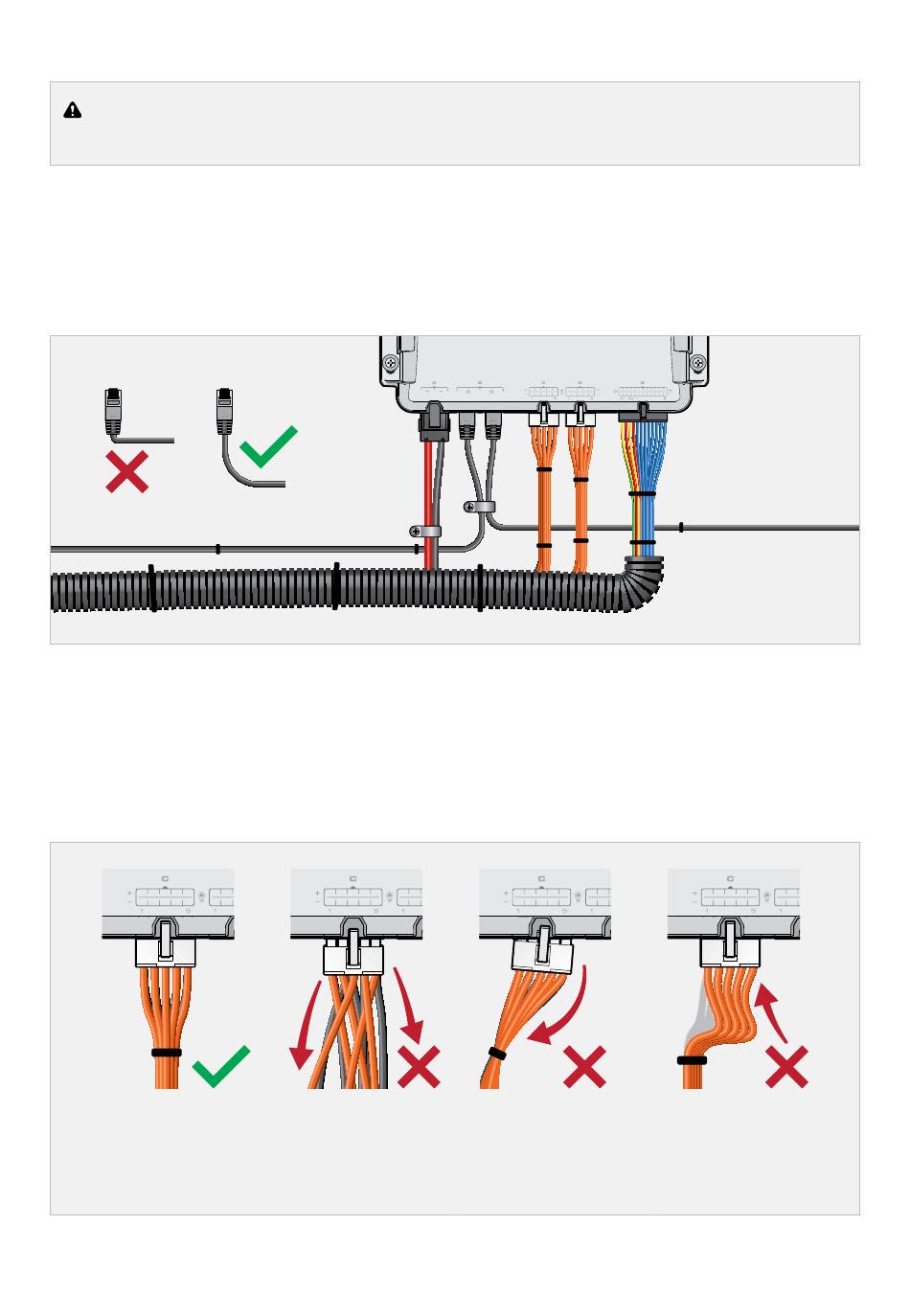

STRAIN-RELIEF AND CABLE MANAGEMENT
CAUTION: Do not route cables over hot surfaces and sharp objects, or over/through parts of
the vehicle that move during operation or maintenance.
PROTECT AND SECURE THE CABLES
Secure the cables to a fixed point close to the TVMS Rogue Main Unit, within 50 to 150 mm
(2" to 6"). Cable ties, cable clips and P-clips are recommended. Flexible conduit can be used to
manage and protect bundled cables.
COUPLING THE LOOM CONNECTORS
Ensure all cables/loom connectors are firmly coupled. Cables must be firmly secured to the vehicle
and routed so that they are not pushing or pulling on the connector interfaces in the Main
Unit. Internal components and connectors may become damaged if they are subjected to repeated
strain/vibration due to inadequate cable restraint.
Cables are not too loose/
tight, and are neatly
bundled
32 | Installation — Wiring
Do not leave cables
suspended/hanging
loosely from the connector
interface
Do not pull cables too tight
or sideways
Do not loop wires such
that they apply force to the
connector interface
