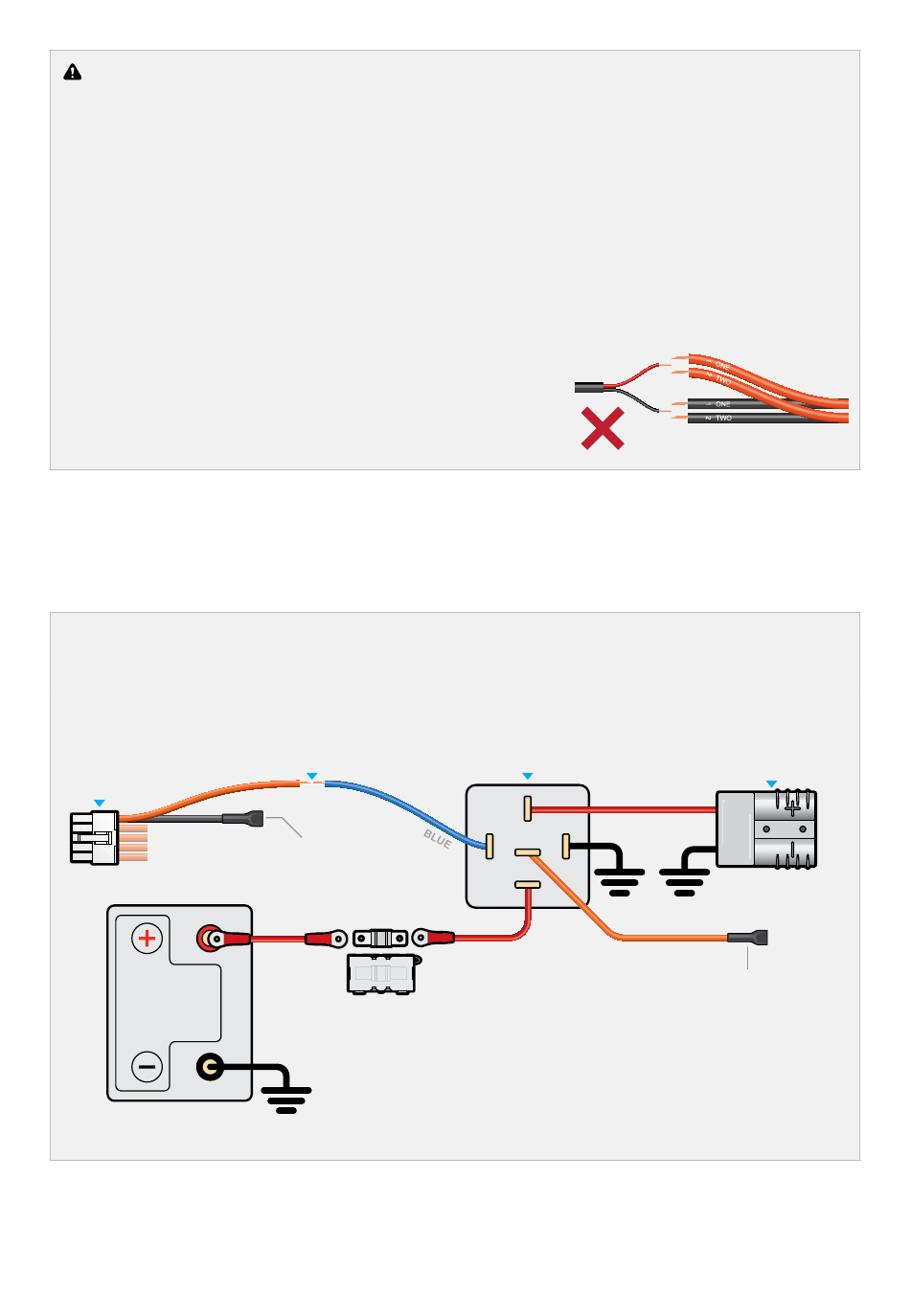

CAUTION
Power sources must NOT be connected to the TVMS Rogue Outputs (C/D). Connecting
batteries or power supplies to the Outputs (C/D) may damage the TVMS Rogue.
NEVER connect the TVMS Rogue output ground to chassis ground. Either connect the
TVMS Rogue output ground to the negative of a load OR connect chassis ground to the
negative of a load and leave the TVMS Rogue output ground unconnected.
The TVMS Rogue outputs are internally software-fused at 10 A. If wiring to a circuit that has
a lower current capability e.g. thinner wire, a suitable fuse must be fitted to protect the circuit
and prevent damage/fire.
NOTICE: Do NOT parallel the outputs on the Output Loom
to try to increase the output current rating. This capability is
NOT supported and may trigger a Fault.
WIRING SWITCH RELAYS
Installing a relay allows the 10 A rated Outputs to support switching and control of loads greater
than 10 A. The REDARC RK1260 Relay Kit is recommended.
Wiring Switch Relays
Using a Relay (RK1260) to wire a switched 50 A Anderson plug outlet from an auxiliary battery.
Output
Loom
Auxiliary
Battery
Connect Orange to
RK1260 Blue
Insulate ends of
individual unused wires
Fuse
RK1260
60A Relay
RED
RED
87
86
87a
85
30
ORANGE
RED
Connector
(e.g. Anderson)
Unused
Insulate ends of
individual unused wires
Installation — Wiring | 21
