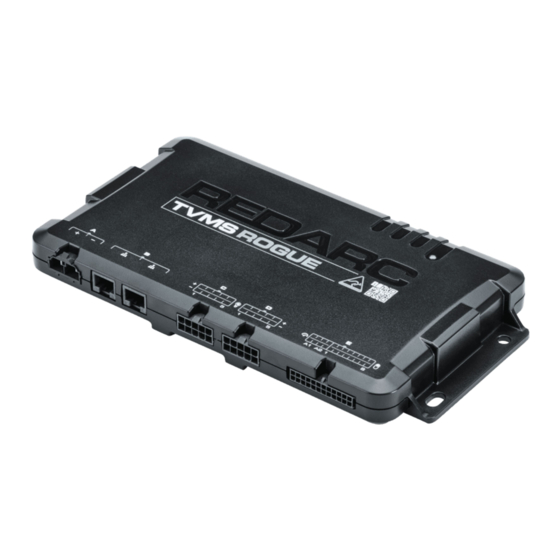

Redarc TVMS Rogue Manual

12 v 40 a control and distribution module
Hide thumbs Also See for TVMS Rogue:
Table of Contents

Advertisement

Quick Links

Download this manual
TVMS Rogue
12 V 40 A Control and Distribution Module
MODEL:
TVMS1240
ƒ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVMS Rogue and is the answer not in the manual?

Questions and answers

Related Manuals for Redarc TVMS Rogue

Summary of Contents for Redarc TVMS Rogue

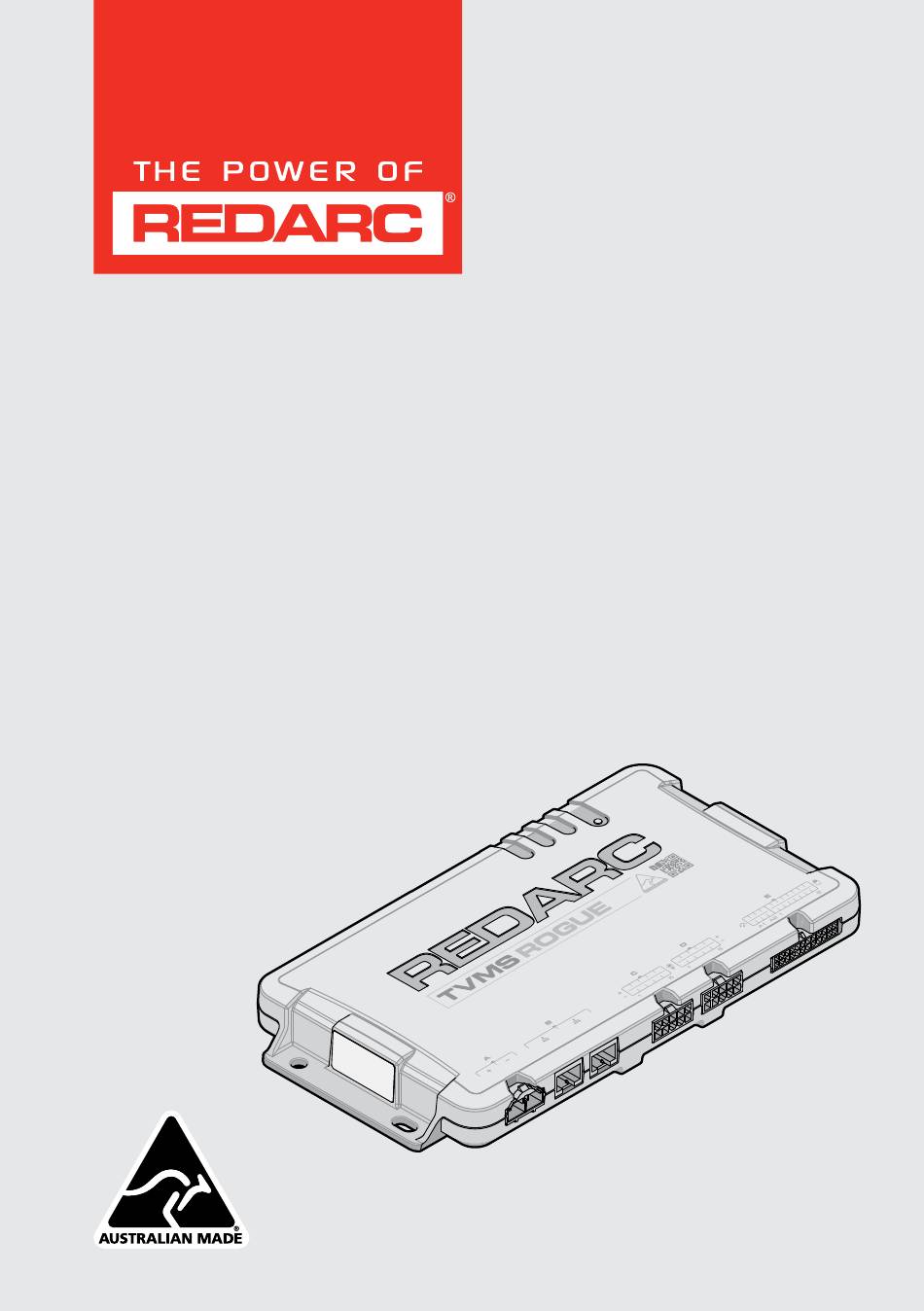

  • Page 1 TVMS Rogue 12 V 40 A Control and Distribution Module MODEL: TVMS1240 ƒ...
  • Page 2 TVMS ROGUE The REDARC TVMS Rogue is a Total Vehicle Management System that allows the centralised control and monitoring of multiple on-board devices in a 4×4, caravan, camper trailer, or motorhome. When combined with a Display (REDARC DISP4300) the TVMS Rogue can be configured and controlled wirelessly using your smartphone via Bluetooth wireless technology.
  • Page 3 CONTENTS WARNINGS AND SAFETY CARE AND MAINTENANCE �������������������������� INSTRUCTIONS �������������������������������������������������������� TROUBLESHOOTING ������������������������������������������ OVERVIEW General Troubleshooting ������������������������������������������������������������������� ������������������������������������������ System Example Faults ������������������������������������������������������������� ������������������������������������������������������������������������������� Kit Contents ��������������������������������������������������������������������� TECHNICAL SPECIFICATIONS Parts of the Main Unit ��������������������� �������������������������������������������������� General Specifications Display Compatibility ���������������������������������������������� ������������������������������������������������� Electrical Specifications Wiring Diagram —...

  • Page 4: Warnings And Safety Instructions

    It is the installer’s responsibility to ensure that their installation complies with any applicable legal and regulatory requirements. Disclaimer: REDARC accepts no liability for any injury, loss or property damage which may occur from the improper or unsafe installation or use of its products.
  • Page 5 11. If any mechanism or part of the TVMS Rogue becomes broken or damaged, discontinue use immediately. 12. When using the REDARC Configurator App, DO NOT configure important vehicle safety features (such as driving lights or power awnings) in such a way that they may turn Off/On unintentionally while the vehicle is in motion.

  • Page 6: Customer Benefits

    Configurable software to meet the ƒ RedVision Plug’n’Play — Plug and play with ® specification of different vehicles REDARC R-Bus systems including Managers REDARC reliability, warranty, and after sales ƒ and the RedVision Display. ® service Light Dimming — 10 ×10 A outputs with...

  • Page 7: System Example

    Awning Light Flood Light Water Pump Inverter (signal only) USB and Acc Sockets Fridge Stereo Fans and TV Switch Inputs Free REDARC Light Switches Configurator App Water Pump Switch Ignition Signal Sensor Inputs Tank Level Sensor 1 Display and smartphone not Tank Level Sensor 2 included.

  • Page 8: Kit Contents

    KIT CONTENTS 6 (×2) Ref. Part Description Qty. TVMS1240 Main Unit TVMSWK-001 Wiring Kit Power Wiring Loom (12 V) RJ45 R-Bus Cable, 1 m (3") Black RJ45 R-Bus Terminating Resistor Output Wiring Loom Input Wiring Loom 8 | Overview...
  • Page 9 PARTS OF THE MAIN UNIT 2 (×4) 4 (×2) 5 (×2) 1. Status LED 5. Outputs Interface (×2) Red LED that illuminates for 5 seconds C / D: 10 A software-fused outputs for upon start-up, and also indicates Faults powering loads such as a fridge, fans, (page 41).

  • Page 10: Display Compatibility

    DISPLAY COMPATIBILITY TVMS Rogue is only compatible with REDARC Displays (DISP4300) that have a serial number greater than 2207089886-xxxx. The display Serial Number label is located on the body of the Display. It can be viewed by removing the display fascia.
  • Page 11 WIRING DIAGRAM — WITH A MANAGER Refer to the Instruction Manual supplied with your Manager for detailed Manager mounting and installation instructions, including installation of the Battery Sensor. Display Input E 1−8 To Switches To Ignition Terminating Input E A1/A2 Resistor To Sensors Output C...

  • Page 12: System Planning

    SYSTEM PLANNING Make a list of devices and plan your connections. Prior to beginning Installation, make a list of all components you plan to include in your RedVision ® system. Being logical in this stage will make configuration much easier. Try to connect each Output and its controlling Input on like-numbered channels.

  • Page 13: Installation - Mounting

    INSTALLATION — MOUNTING MOUNTING HARDWARE When mounting the TVMS Rogue, any fasteners may be used so long as: They are suitable for the selected mounting surface and; ƒ They have a clearance-fit through the mounting holes on the Main Unit. ƒ Using four screws/bolts from M6 (1/4") to M4 (#8) with washers is recommended.

  • Page 14: Mounting Location

    MOUNTING LOCATION Mount as close as possible to the auxiliary battery to avoid voltage drop. Refer to the 'Cable ƒ Size Selection Table' (page 27) for the correct cable size for your cable length. Do not mount the Main Unit to moveable panels in your vehicle. ƒ...

  • Page 15: Mounting Clearances

    MOUNTING CLEARANCES Leave at least 100 mm (4") of clearance around the connections on the TVMS Rogue for the ƒ wiring looms to be connected and disconnected. Allow clearance for strain-relief and cable management once wiring is complete. See 'Strain- ƒ Relief and Cable Management' (page 32) for further information.

  • Page 16: Mounting Steps

    MOUNTING STEPS WARNING: Use suitable Personal Protective Equipment (PPE) when operating power tools. NOTICE: Do NOT modify the plastic housing or mounting holes in any way. Modification to the unit will void the warranty. 1. Confirm that the clearances around the TVMS Rogue Main Unit are adequate; see 'Mounting Clearances' (page 15).

  • Page 17: Installation & Wiring

    WIRING PARTS YOU WILL NEED: 1 × TVMS Rogue (TVMS1240 — includes TVMSWK-001 Wiring Kit) ƒ 50 A Midi fuse with fuse holder — REDARC FK50 recommended ƒ Tools and consumables as needed (see below) ƒ If your install includes a REDARC Manager, you will also need: 40 A Midi fuse with fuse holder —...
  • Page 18 For wiring of the Input and Output Looms, a range of connector types are acceptable provided that a solid connection is made. REDARC recommends the following connection types: Butt-splice crimps (pre-insulated or standard), or solder with heatshrink are readily available ƒ...
  • Page 19 Relays — to support switching/control of loads greater than the 10 A limitation of the ƒ TVMS Rogue (REDARC RK1260 recommended) REDARC Inverters — switching only; not to be used for powering an inverter. ƒ SELECTING LIGHTS: LED Light — if you intend to use the dimming capability, check before installing that your ƒ...
  • Page 20 2. Insulate the ends of individual unused wires to prevent them from shorting. DO NOT heatshrink/ tape multiple unused wires together as a single bundle. 3. Configure via the REDARC Configurator App. Wiring Typical Loads The example shows wiring of a fridge, with optional wiring for loads that have a connector.
  • Page 21 WIRING SWITCH RELAYS Installing a relay allows the 10 A rated Outputs to support switching and control of loads greater than 10 A. The REDARC RK1260 Relay Kit is recommended. Wiring Switch Relays Using a Relay (RK1260) to wire a switched 50 A Anderson plug outlet from an auxiliary battery.
  • Page 22 +12 V signal to the inverter. When connecting a REDARC Inverter, read the Instruction Manual supplied with the Inverter before making any connections, and make sure the TVMS Rogue and the REDARC inverter share a common ground. 1. Wire the inverter as per the instructions supplied with your inverter. This includes all power connections which are NOT made to the TVMS Rogue.
  • Page 23 Tank level sensors can be connected to the TVMS Rogue for measuring tank levels including grey water or clean water tanks. Not all tank level sensors are compatible with TVMS Rogue, so check compatibility before purchasing. Float sensors are recommended because they are readily available and have simple two-wire installation.
  • Page 24 (E 1–8). Connect the power wire/s on the sensor switch to an Output (at C or D) to allow the sensor to be switched On or Off by TVMS Rogue. This is a useful configuration for an externally mounted PIR sensor that activates a security light, because it gives you the ability to temporarily disable it.

  • Page 25: Switch Wiring

    Wiring Loom (at E 1-8). 2. Insulate the ends of individual unused wires to prevent them from shorting. DO NOT heatshrink/ tape multiple unused wires together as a single bundle. 3. Configure via the REDARC Configurator App. Basic Switch Wiring (two-wire switch) Switches...
  • Page 26 3. Insulate the ends of individual unused wires to prevent them from shorting. DO NOT heatshrink/ tape multiple unused wires together as a single bundle. 4. Configure via the REDARC Configurator App. Powered Switch Wiring (four-wire switch) Example shows a 12 V PIR sensor switch.
  • Page 27 POWER INPUT WIRING (A) Connecting the TVMS Rogue to the auxiliary battery� Note: Wiring components including fuses, lugs, extension cables and consumables are not supplied. CAUTION Do NOT modify the Power Wiring Loom cable while it is plugged into the Main Unit. ƒ...
  • Page 28 JOINING/EXTENDING CABLES The TVMS Rogue Power Input has heavy gauge cables that require good, low resistance joints that will not degrade over time. For extending cables, REDARC recommends a properly crimped splice connection that is covered with heat shrink. CAUTION: Failure to make a good reliable connection may result in breakdown of the wire insulation and cause a short circuit or potentially a fire.
  • Page 29 POWER INPUT CABLE WIRING Before you begin, purchase the correct cable size needed for your installation (refer to 'Power Input Sizing' (page 27). Note: Poor quality cable can degrade over time when exposed to high Cable temperatures (such as in an engine bay). Make sure you purchase good-quality cable with a suitable temperature rating for your installation.
  • Page 30 CAN BUS CONNECTION (B) Connecting the TVMS Rogue the RedVision system� NOTICE: Do not connect computers or IT equipment to R-Bus Network (B) on the TVMS Rogue. This may damage the Main Unit internal components. CAN BUS CONNECTION STEPS Note: The RedVision Display (DISP4300) is not supplied. ®...
  • Page 31 R-Bus and CAN Bus (Controller Area Network) systems connect devices in a continuous daisy-chain network. Terminating Resistors must be present at each end of the daisy-chain to complete the CAN Bus system. Basic Installation TVMS Rogue Display CAN Bus ‘Spine’ Terminating Resistor #1...
  • Page 32 STRAIN-RELIEF AND CABLE MANAGEMENT CAUTION: Do not route cables over hot surfaces and sharp objects, or over/through parts of the vehicle that move during operation or maintenance. PROTECT AND SECURE THE CABLES Secure the cables to a fixed point close to the TVMS Rogue Main Unit, within 50 to 150 mm (2" to 6").
  • Page 33 WATER INGRESS AVOIDANCE When mounting the Main Unit in any orientation other than with connectors facing downwards (i.e. at the bottom of the unit), ensure that cables are routed with drip loops. This is to prevent moisture from running down the cables into the Main Unit. Installation —...

  • Page 34: System Configuration

    Visit the application pages within your App store to view compatibility details. WARNING: When using the REDARC Configurator App, ensure that you DO NOT configure important vehicle safety features (such as lights or mechanical devices) in such a way that they may turn Off/On unintentionally while the vehicle is in motion.
  • Page 35 PAIR THE CONFIGURATOR APP TO THE DISPLAY 1. Make sure Bluetooth is enabled on your smartphone, then open the Configurator App. Note, ® some smartphones also require Location Services to be enabled. 2. On the RedVision Display, navigate to Display Settings. 3.

  • Page 36: Edit A Configuration

    5. When programming is complete, your smartphone will display a confirmation message, and the Display will show the new configuration. Failed to Program If the Programming process fails, repeat the steps again before contacting REDARC. If it continues to fail, contact REDARC directly, or your local REDARC Distributor. 36 | System Configuration...
  • Page 37 END-USER LOCKOUT TVMS Rogue allows you to add an Installer PIN (personal identification number) to prevent end-users from changing the Configuration of their RedVision system. This is to avoid safety ® hazards if the system is reconfigured in an unsafe way by persons who do not fully understand the system requirements.
  • Page 38 SYSTEM TESTING & OPERATION System testing is an important step to confirm the end-user experience of the configured system. Identifying and correcting errors is important before the system is operational and on-the-road. 1. Download and install the RedVision App. ® 2.
  • Page 39 PAIR THE REDVISION APP TO THE DISPLAY ® 1. Make sure Bluetooth is enabled on your smartphone, then open the RedVision App. Note, ® ® some smartphones also require Location Services to be enabled. 2. On the RedVision Display, navigate to Display Settings. 3.
  • Page 40 6. Enter the Passcode shown on the Display into the input field, then tap Pair. 7. Once you smartphone is successfully paired, the Device Status screen will be displayed. This can take a few minutes.  SUBSEQUENT CONNECTIONS Once a smartphone has been paired with the RedVision Display, it will automatically reconnect ®...

  • Page 41: Care And Maintenance

    If you experience any of the listed problems, follow the recommended actions in order until the problem is resolved — all steps may not be needed to resolve the problem. If the problem persists after completing all of the recommended actions, contact REDARC directly, or your local REDARC Distributor.
  • Page 42 TVMS Rogue. To resolve a communications error, complete the following steps, in order, before directly contacting REDARC or your local REDARC Distributor. 1. Check all CAN Bus (RJ45) cables to make sure they are securely connected to the correct connector interface on each RedVision CAN Bus device in your system.

  • Page 43: Technical Specifications

    TECHNICAL SPECIFICATIONS Specifications subject to change without notice. GENERAL SPECIFICATIONS Main Unit Dimensions 250 × 130 × 25 mm / 9.8" × 5.1" × 1" Main Unit Weight ≈ 430 g / 1 lb Warranty 2 years 235mm (9.3") ø6.2 mm (ø0.25") 25mm (0.98") (0.12") 250mm (9.9") Technical Specifications | 43...

  • Page 44: Electrical Specifications

    ELECTRICAL SPECIFICATIONS POWER INPUT 9–16 VDC ⎓ Supply Voltage Supply Current Limit 40 A Connector Housing Molex 428160212 Connector Contacts Molex 428150134 OUTPUT CHANNELS Number of Channels Channel Current Limit 10 A PWM Dimming Capable Yes, All Channels Harness Connector Molex 039012100 Connector Contacts Molex 457503111...

  • Page 45: Compliance And Standards

    COMPLIANCE AND STANDARDS TVMS ROGUE COMPLIANCE Compliance and Standards listed are for the TVMS Rogue only — For Regulatory and compliance information for other products described in this manual, refer to the Instruction Manual supplied with that product. Regulatory Safety EN 61010.1...
  • Page 46 INDUSTRY CANADA (IC) COMPLIANCE NOTICE This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. IC Radiation Exposure Statement: This device complies with Industry Canada (IC) license-exempt RSS standard(s).

  • Page 47: Connector Part Numbers

    CONNECTOR PART NUMBERS CAUTION: Installer-supplied connector housings and crimp terminals must be the same as those specified. POWER INPUT CABLE CONNECTOR 10.00 mm Pitch Mini-Fit Sr. Molex 428160212 Receptacle Housing, Single Row, ×1 2 Circuit, Black Mini-Fit Sr. Crimp Terminal, Female, Molex 428150134 ×2 8 AWG, Silver (Ag)

  • Page 48: Connector Pinouts

    CONNECTOR PINOUTS POWER CABLE CONNECTOR (A) PINOUTS (Wire entry view) Channel ID Terminal Colour Function 12 V Supply Positive − Black 12 V Supply Negative OUTPUT CABLE CONNECTORS (C/D) PINOUTS (Wire entry view) Channel ID Terminal Colour Function Orange Output C/D 1 Positive C/D 1 Black Output C/D 1 Negative...
  • Page 49 INPUT CABLE CONNECTOR (E) PINOUTS 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 (Wire entry view) SENSORS Channel ID Terminal Colour Function Yellow Sensor Input 1 Sense Positive Green Sensor Input 1 Sense Common E A1 Sensor Input 1 Supply Positive Black...

  • Page 50: Limited Warranty

    LIMITED WARRANTY For full warranty terms and conditions, visit the Warranty page of the REDARC website: www.redarcelectronics.com/warranty Australia, New Zealand & Europe North America REDARC Electronics Pty Ltd REDARC Corporation 23 Brodie Road (North), c/o Shallco, Inc. Lonsdale SA 5160 308 Component Dr.
  • Page 51 PATENTS APPLY Australia: 2021106539 REDARC Electronics Pty Ltd | ABN 77 136 785 092 | 23 Brodie Road (North), Lonsdale SA 5160, Australia Product configuration and technical specifications are subject to change without notice. Copyright © 2022 REDARC Electronics Pty Ltd. All rights reserved. REDARC® and THE POWER OF REDARC® are trademarks of REDARC Electronics Pty Ltd.
  • Page 52 Tech Support 1300 REDARC (1300-733-272) Australia +61 8 8322 4848 New Zealand +64 9 222 1024 UK & Europe +44 (0)20 3930 8109 +1 (704) 247-5150 Canada +1 (604) 260-5512 Mexico +52 (558) 526-2898 redarcelectronics.com INST182−3...
