POWER INPUT CABLE WIRING
Before you begin, purchase the correct cable size needed for your installation (refer to
Sizing' (page 27). Note: Poor quality cable can degrade over time when exposed to high
Cable
temperatures (such as in an engine bay). Make sure you purchase good-quality cable with a suitable
temperature rating for your installation.
For connector pinout information, see
1. Make sure the Power Wiring Loom is disconnected from the Main Unit.
2. Place the Auxiliary Battery and TVMS Rogue Main Unit in their final positions. Run the cables
and then trim or extend them as needed — refer to
3. Connect the Red Cable (+) of the TVMS Rogue Power Wiring Loom to the Auxiliary Battery
positive terminal. Fuse the Cable to 50 A (fuse not supplied). Position the Fuse as close to the
Auxiliary Battery as possible, ideally no more than 150 mm (6") away.
4. Connect the Black Cable of the Power Wiring Loom (negative/ground) to either of the following:
Ground (i.e. a vehicle chassis ground stud)
ƒ
The GND (⏚) terminal of the Manager's Battery Sensor (not supplied — refer to the instruction
ƒ
manual supplied with the Manager)
When all other wiring of Outputs (C/D) and Inputs (E) is complete, plug the Power Wiring
Loom into the Power Input interface (A) on the Main Unit.

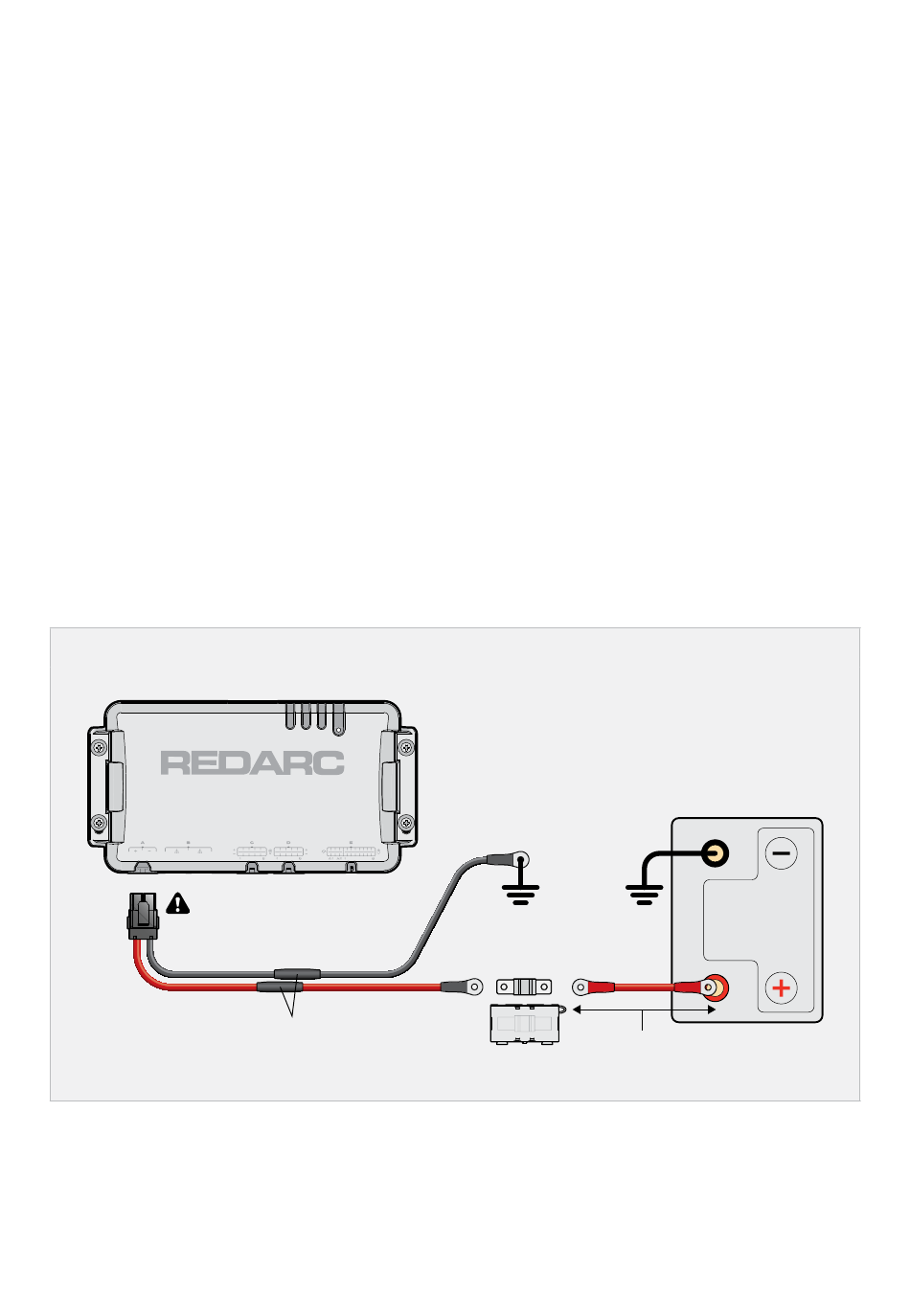

Power Wiring Loom Wiring
Do not plug into Main Unit
until wiring of C,D and E is
complete
Extend cables as required
'Power Cable Connector (A)
'Joining/Extending
50 A Fuse
(and holder)
'Power Input
Pinouts' (page 48).
Cables' (page 28).
Auxiliary
Battery
< 150 mm (6")
