FAULTS
Faults are indicated by the Status LED on the Main Unit:
Flashing red — indicates a Communications Fault
ƒ
Solid red — indicates an Output Fault
ƒ
COMMUNICATIONS FAULT RESOLUTION

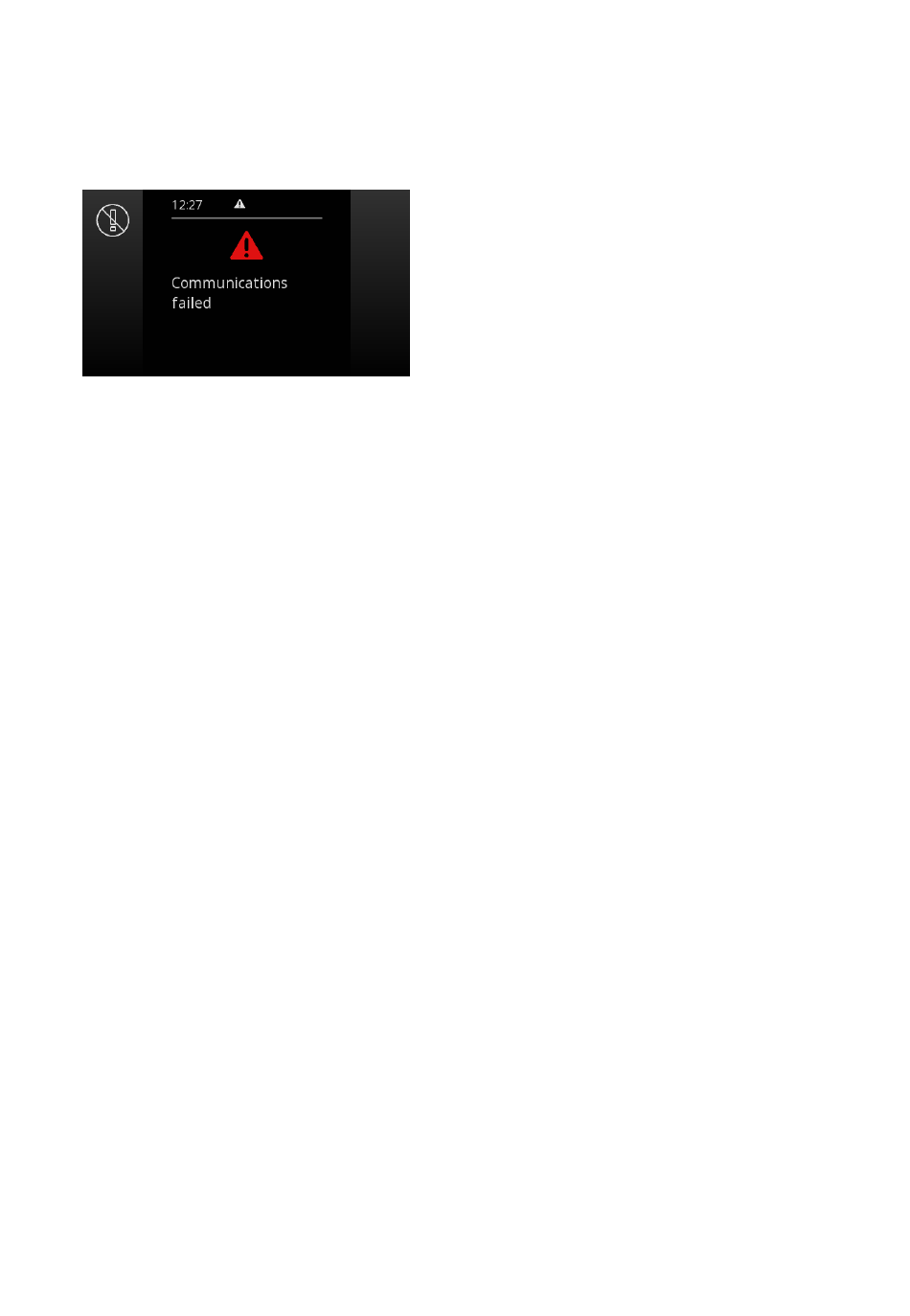

Communication Faults occur when there is a connection error in the CAN Bus network. In the event
of a communications error, the RedVision
communicate with the TVMS Rogue.
To resolve a communications error, complete the following steps, in order, before directly contacting
REDARC or your local REDARC Distributor.
1. Check all CAN Bus (RJ45) cables to make sure they are securely connected to the correct
connector interface on each RedVision
2. Confirm that terminating resistors are fitted at each end of the CAN Bus 'daisy-chain'.
OUTPUT FAULT RESOLUTION
In the event of an Output Fault refer to the RedVision
cause of the Fault.
Output Faults include:
Output over current or short circuited
ƒ
Device over temperature
ƒ
Supply over voltage
ƒ
Supply over current
ƒ
42 | Troubleshooting
Fault indication
on the Display.
App, Configurator App and Display will be unable to
®
CAN Bus device in your system.
®
Display or the RedVision
®
App to identify the
®
