MOUNTING CLEARANCES

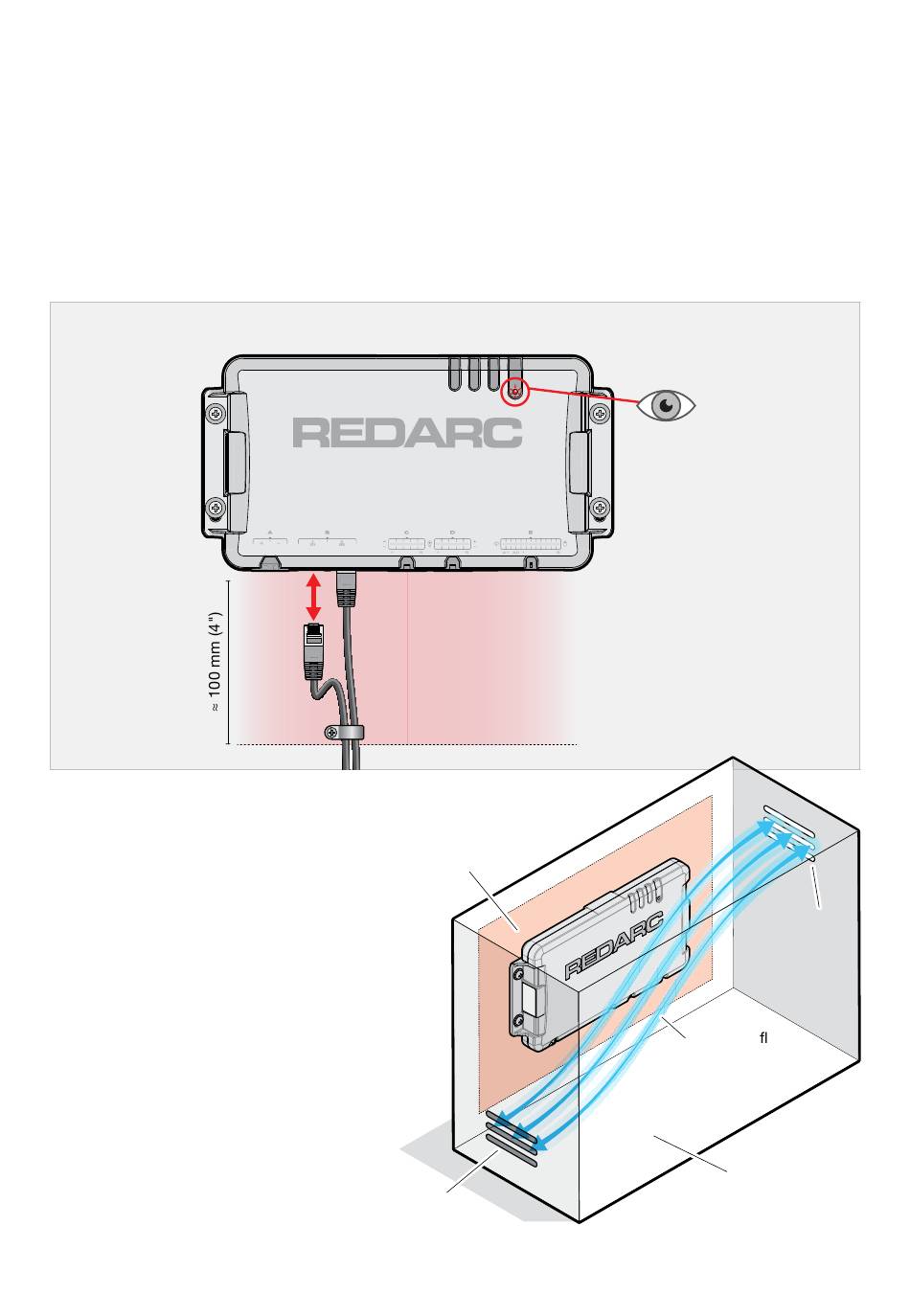

Leave at least 100 mm (4") of clearance around the connections on the TVMS Rogue for the
ƒ
wiring looms to be connected and disconnected.
Allow clearance for strain-relief and cable management once wiring is complete. See
ƒ
Relief and Cable Management' (page 32)
Make sure the Status LED is easily visible for troubleshooting.
ƒ
Allow clearance on all sides of the Main Unit for air flow. For more information, see
ƒ
Enclosed Spaces'.
Mount in a location that has adequate clearance
MOUNTING IN
ENCLOSED SPACES
If installing TVMS Rogue in an enclosed
space, make sure there is adequate
venting. Two vents should ideally be
positioned at the top and bottom of the
enclosure for cross-flow of air.
Allow at least 50 mm (2") clearance on all
sides of the Main Unit for air flow.
for further information.
Clearance for
connector/hand access
and cable management.
≈ 50 mm (2")
all sides
Vent
'Strain-
'Mounting in
LED is
visible
Air cross- ow
Enclosed
space
Installation — Mounting | 15
Vent
