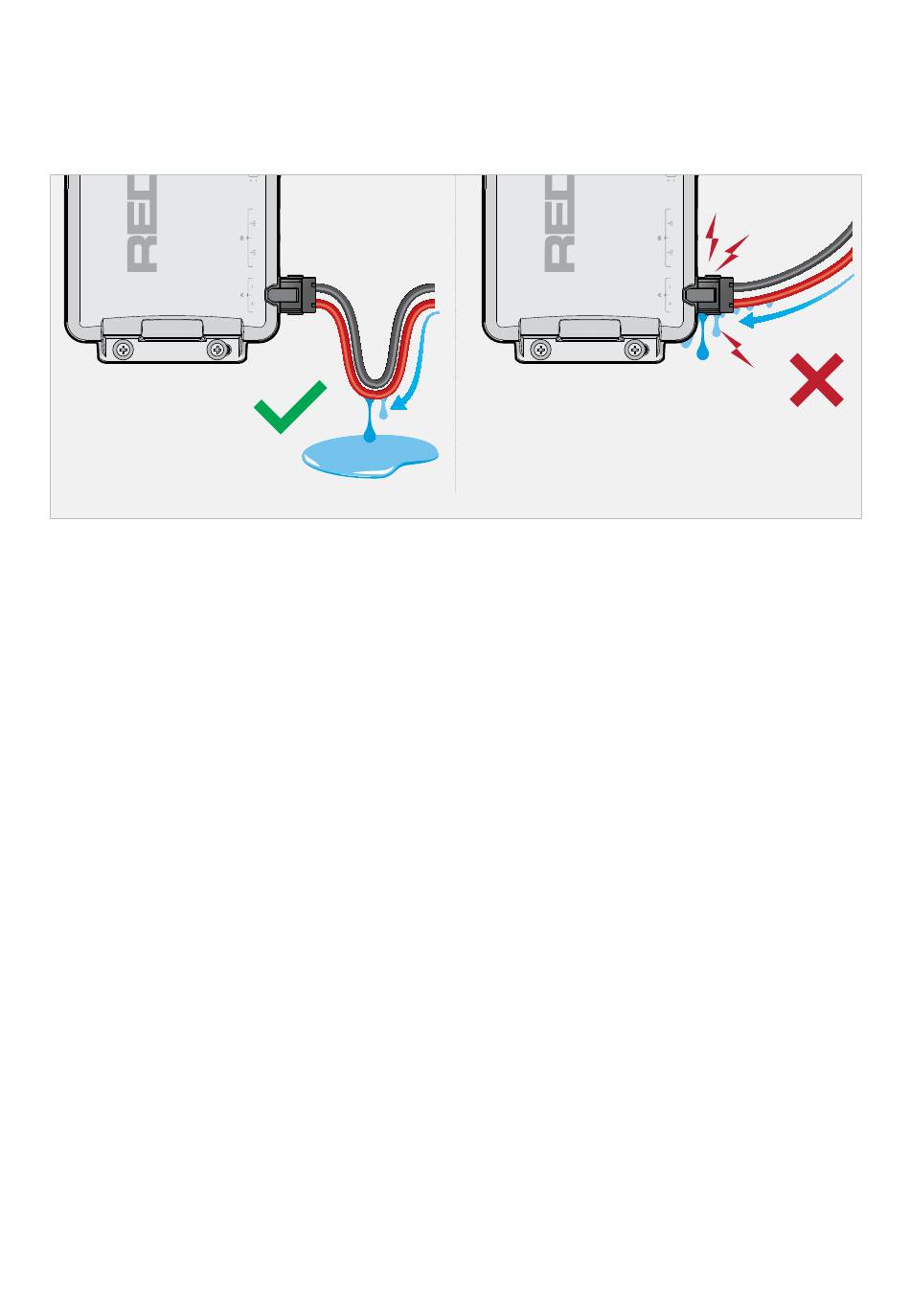

WATER INGRESS AVOIDANCE
When mounting the Main Unit in any orientation other than with connectors facing downwards (i.e.
at the bottom of the unit), ensure that cables are routed with drip loops. This is to prevent
moisture from running down the cables into the Main Unit.
Installation — Wiring | 33
