INSTALLATION — MOUNTING
MOUNTING HARDWARE

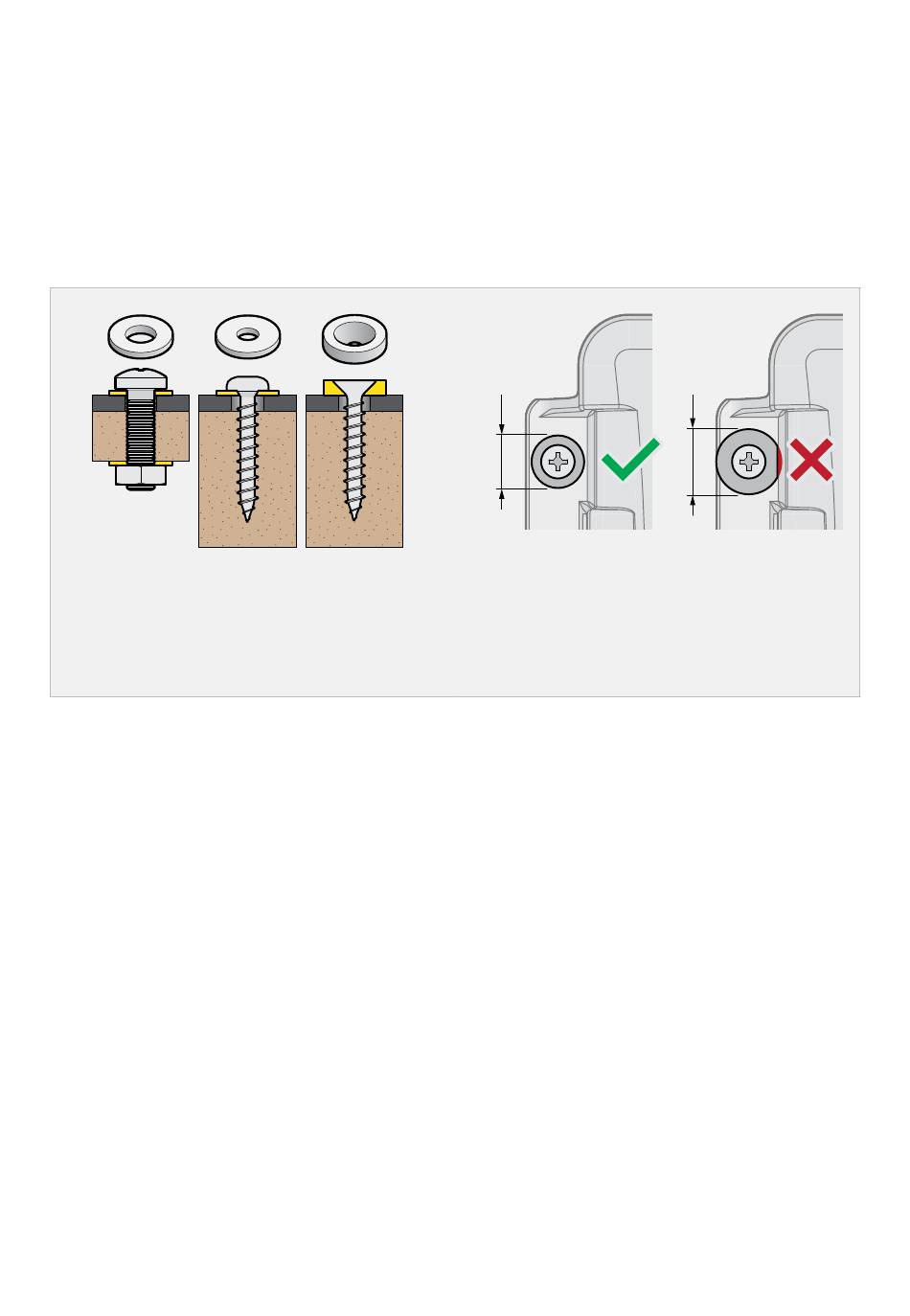

When mounting the TVMS Rogue, any fasteners may be used so long as:
They are suitable for the selected mounting surface and;
ƒ
They have a clearance-fit through the mounting holes on the Main Unit.
ƒ
Using four screws/bolts from M6 (1/4") to M4 (#8) with washers is recommended.
Apply washers.
If using countersunk fasteners, make sure
a countersunk washer is used with it to
avoid damaging the Mounting Holes.
< 13 mm
< 1/2"
< 13 mm
< 1/2"
Heads of fasteners and washers must not
exceed 13 mm (1/2") in diameter to avoid
deforming/damaging the plastic around the
>13 mm
>1/2"
>13 mm
>1/2"
Mounting Holes.
Installation — Mounting | 13
