Chapter 3: Configuring the 1794sc-IRT8I for ControlLogix/CompactLogix
User's Manual Pub. 0300242‐01 Rev. A
2. Select the module type from the Select Module Type pop-up.
3. Configure the remote Ethernet communication module.

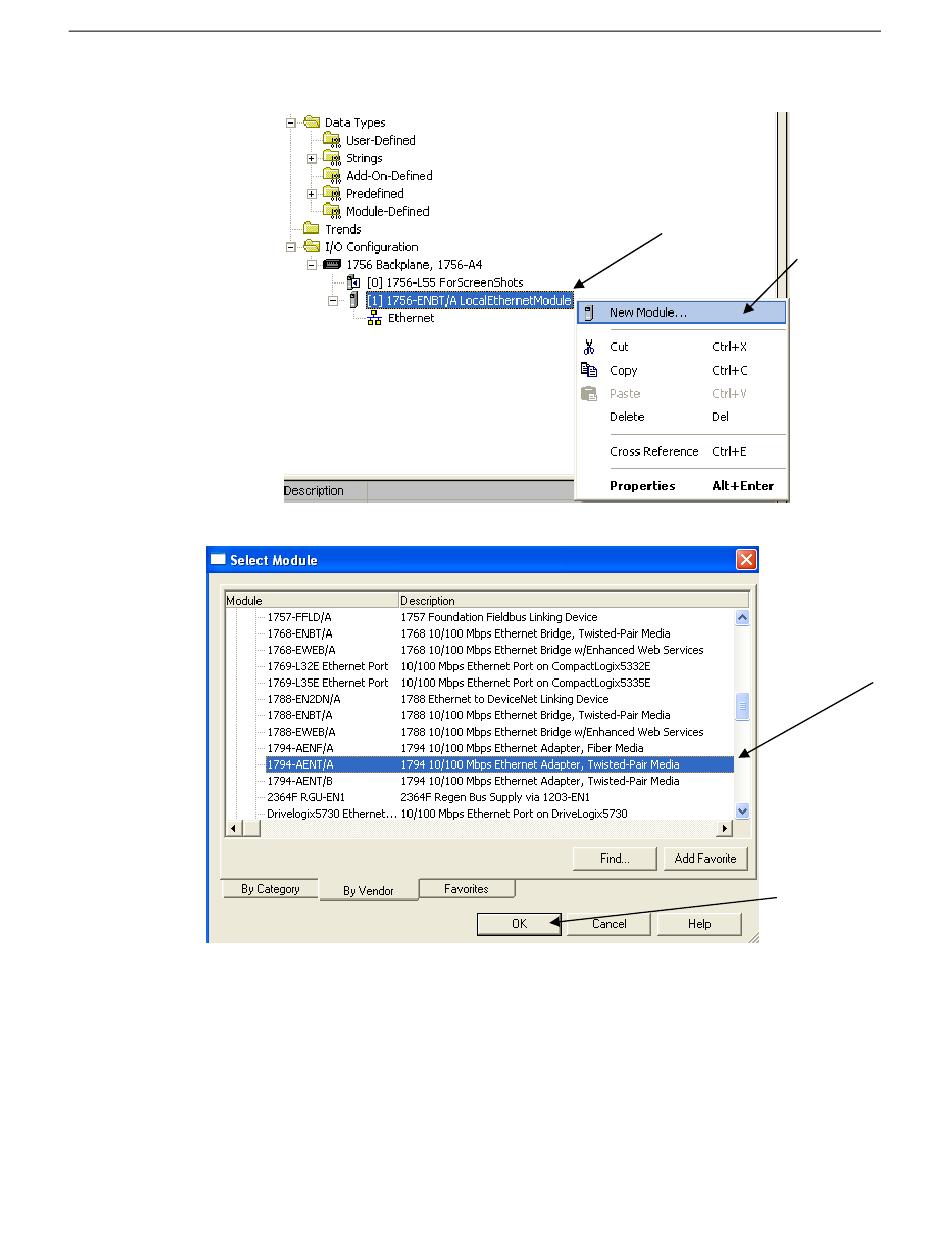

Right-click on the local
communication module
3-5
Select New Module
Select the remote Ethernet
communication module.
Click OK
