User's Manual Pub. 0300242‐01 Rev. A
Total current draw through the terminal base unit is limited to 10A.
!
Separate power connections to the terminal base unit may be
necessary.
Attention
The following examples show how to wire the IF8U using the tables and diagrams listed
above.

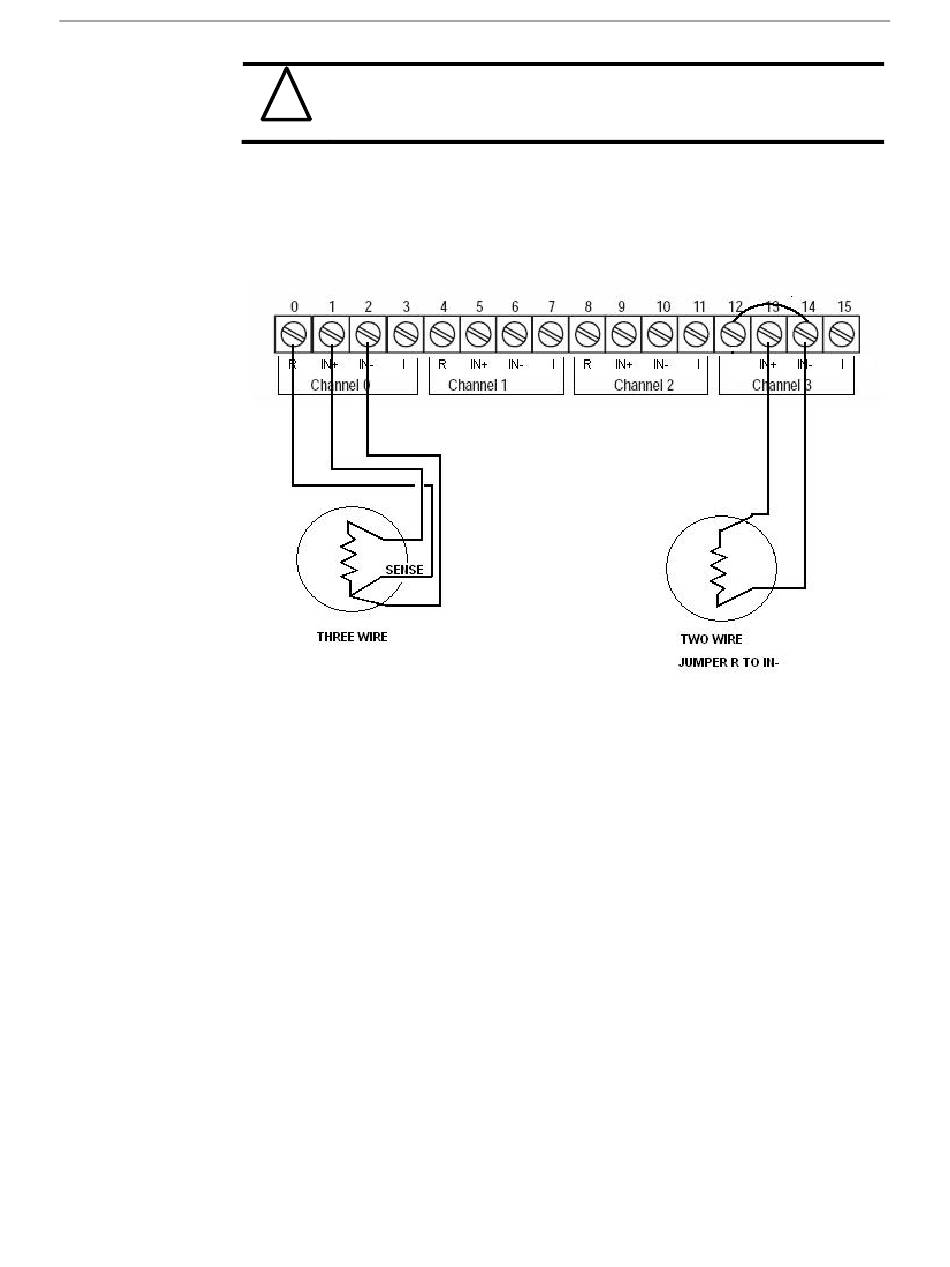

Figure 2-2 (RTD & Resistance Wiring Diagram)
Chapter 2: Installation and Wiring
2-13
