2-6
Flex™ IO Isolated RTD/Thermocouple Module
User's Manual Pub. 0300242‐01 Rev. A

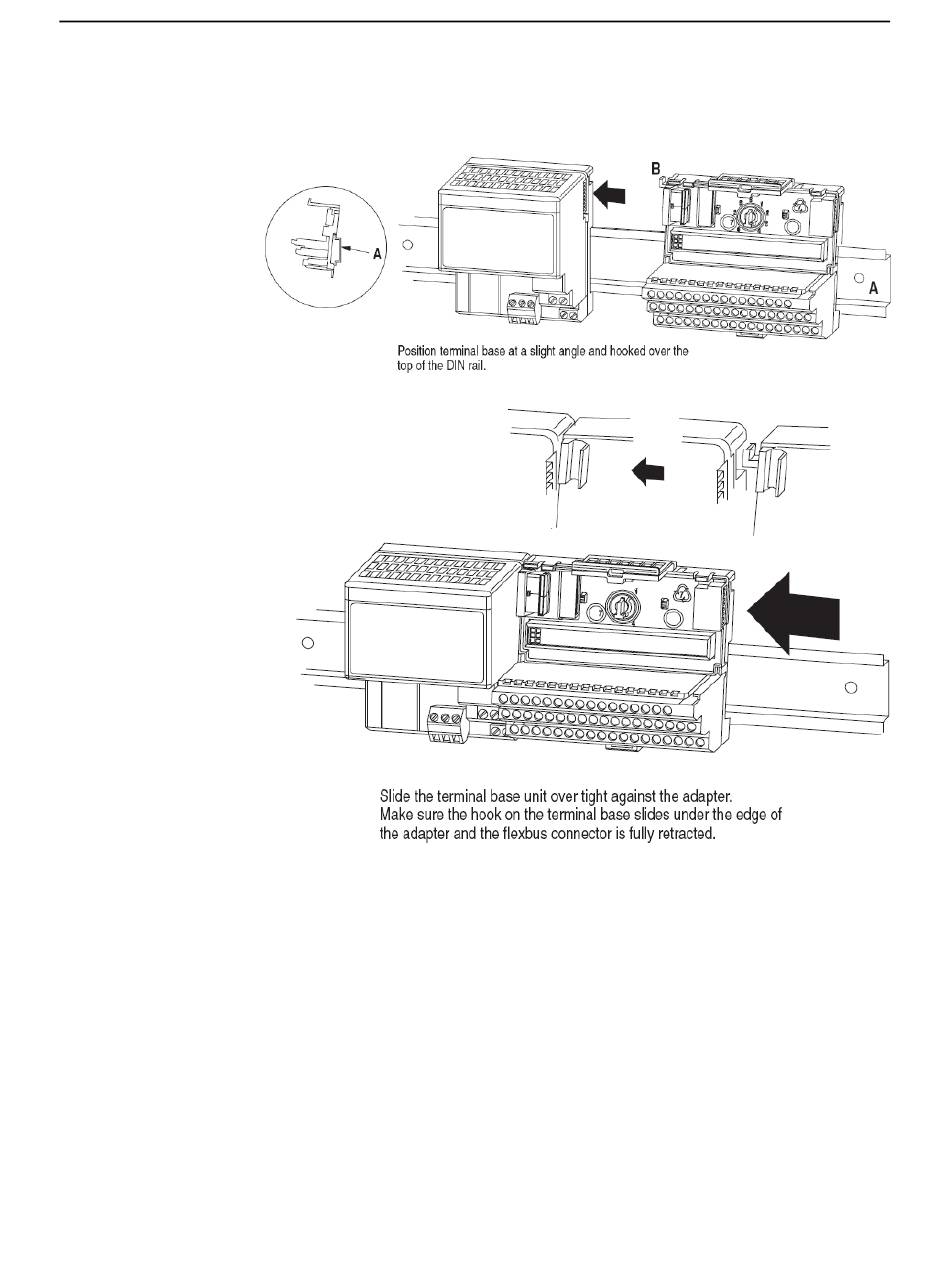

3) Position the terminal base on the 35 x 7.5mm DIN rail A (A-B pt.no. 199-DR1;
46277-3) at a slight angle with hook B on the left side of the terminal base
hooked into the right side of the unit on the left. Proceed as follows:
