3-2
Flex™ IO Isolated RTD/Thermocouple Module
Section 3.3
Configure
Generic Profile
User's Manual Pub. 0300242‐01 Rev. A

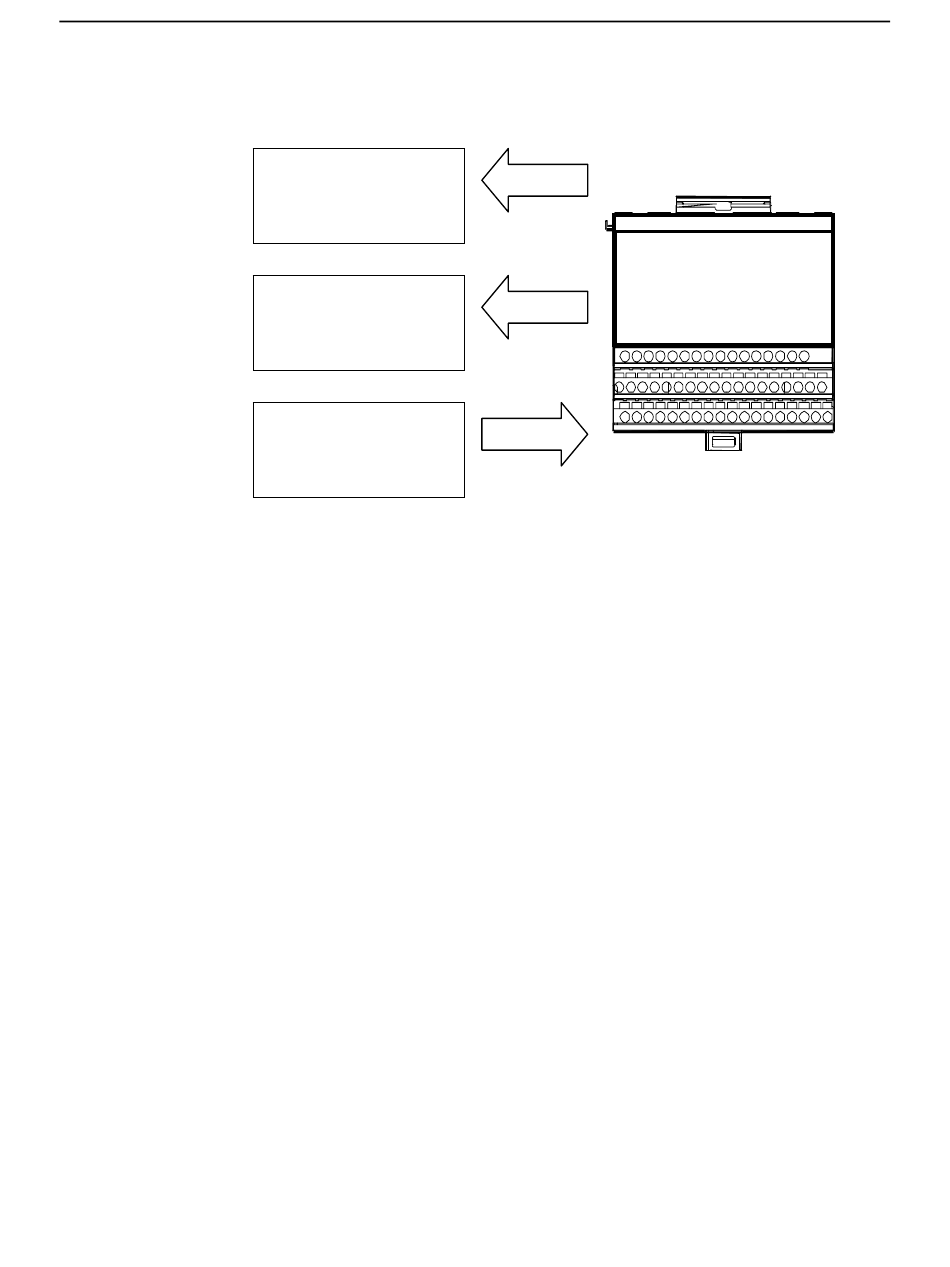

Figure 3-1 (Module Memory Map)
Input Image
I:0 to I:7( 8 words)
(Input Data)
Status Image
S:0 to S:3 (4 Words)
(Status Data)
Configuration Image
C:0 to C:32 (33 words)
(Configuration Data)
The generic Flex module profile is used to represent the IRT8I module within RSLogix
5000 since there's no custom profile available. Before the generic profile can be added to
the IO configuration, the proper communication module needs to be added to the IO
configuration first. Follow the procedure below to add a communication module to
RSLogix 5000.
1. Add the new local communication module to your project.
2. Configure the local module, including:
a.
Naming the module
b. Choosing a Communication Format
c.
Setting the Revision level
d. Setting the module location as necessary such as the slot number for a
1756-CNB module
e.
Choosing an Electronic Keying method
3. Add the new remote module to your project, such as a Flex Control Net adapter
or Ethernet Adapter (i.e. 1794-ACN15 or 1794-AENT, respectively).
4. Configure the remote module similarly to the local module
5. Download the configuration to the controller
Note: If you are using Control Net, you must schedule the network using
"RSNetworks for Control Net" after adding the local and remote
communication modules.
Note: When you create a new RSLogix 5000 project with the CompactLogix
1769-L32C or L35CR controller, The Controller Organizer creates a Control
