Chapter 3: Configuring the 1794sc-IRT8I for ControlLogix/CompactLogix

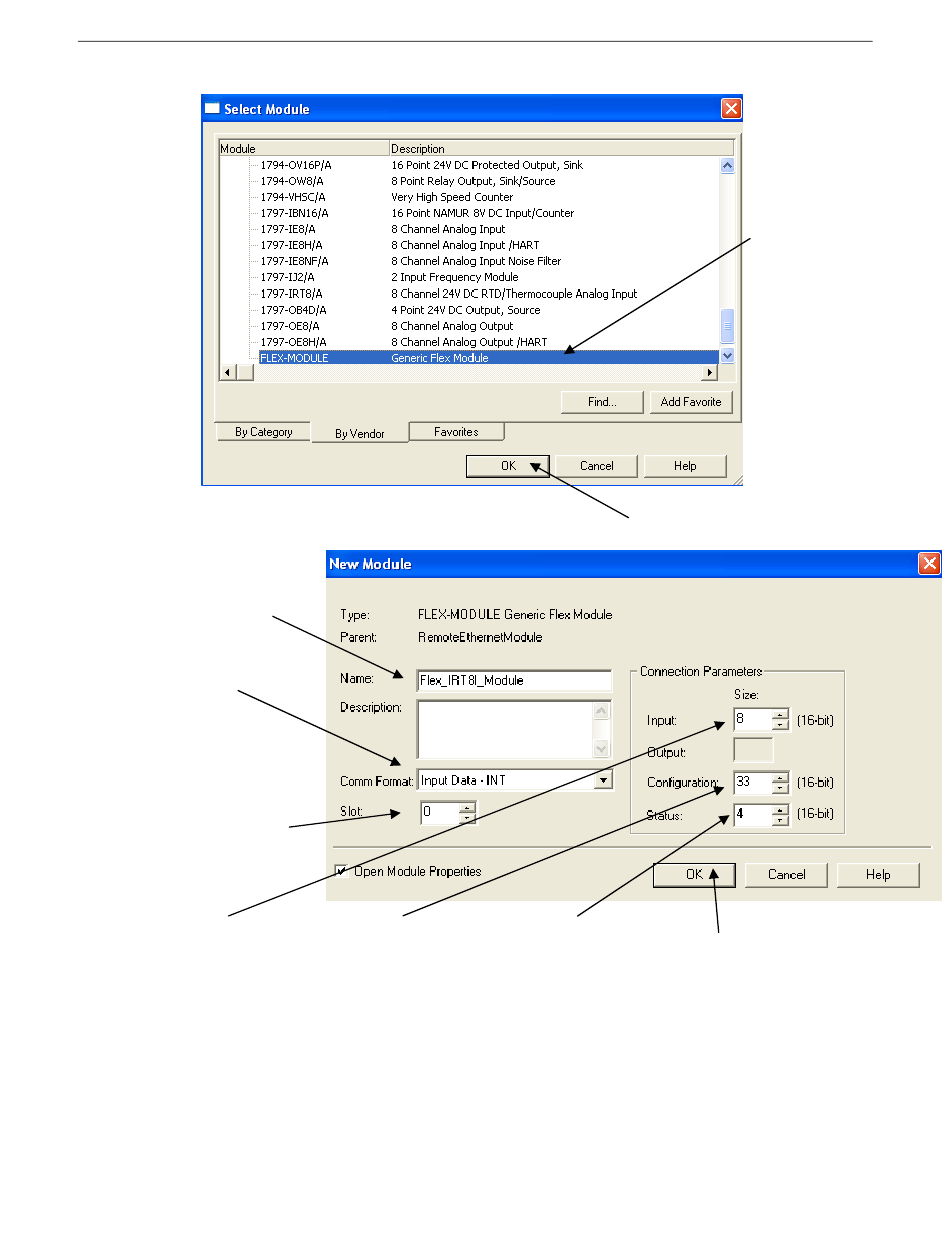

Name the module
Enter "Input Data – INT" for
Comm. Format
Enter module slot #
Enter the input size
(Always 8 for the IRT8I)
Section 3.4
Module
Configuration
User's Manual Pub. 0300242‐01 Rev. A
3. Configure the Generic Flex Module (i.e. 1794sc-IRT8I)
Enter the config. size
(Always 49 for the IRT8I)
The addition of the Generic Flex Module profile makes it possible to enter the
configuration data for the IRT8I module. The configuration tags for the IRT8I are
located under the controller tags. The following figure describes the tag structure
allocated by the Generic Flex Module profile.
Click OK
Enter the status size
(Always 4 for the IRT8I)
3-7
Select Generic Flex
Module
Click OK
