Chapter 3: Configuring the 1794sc-IRT8I for ControlLogix/CompactLogix
User's Manual Pub. 0300242‐01 Rev. A
Net port in the local chassis. In this case, you don't need to add a separate
local communication module.
Note: When you create a new RSLogix 5000 project with the CompactLogix
1769-L23E, 1769-L32E or L35E controller, The Controller Organizer creates
a Ethernet port in the local chassis. In this case, you don't need to add a
separate local communication module.

3.3.1 Add a Local Ethernet Bridge Module

After you have started RSLogix 5000 software and created a controller project, you can
add Ethernet communication modules. A local Ethernet communication module is a
module that resides in the same chassis as the controller.

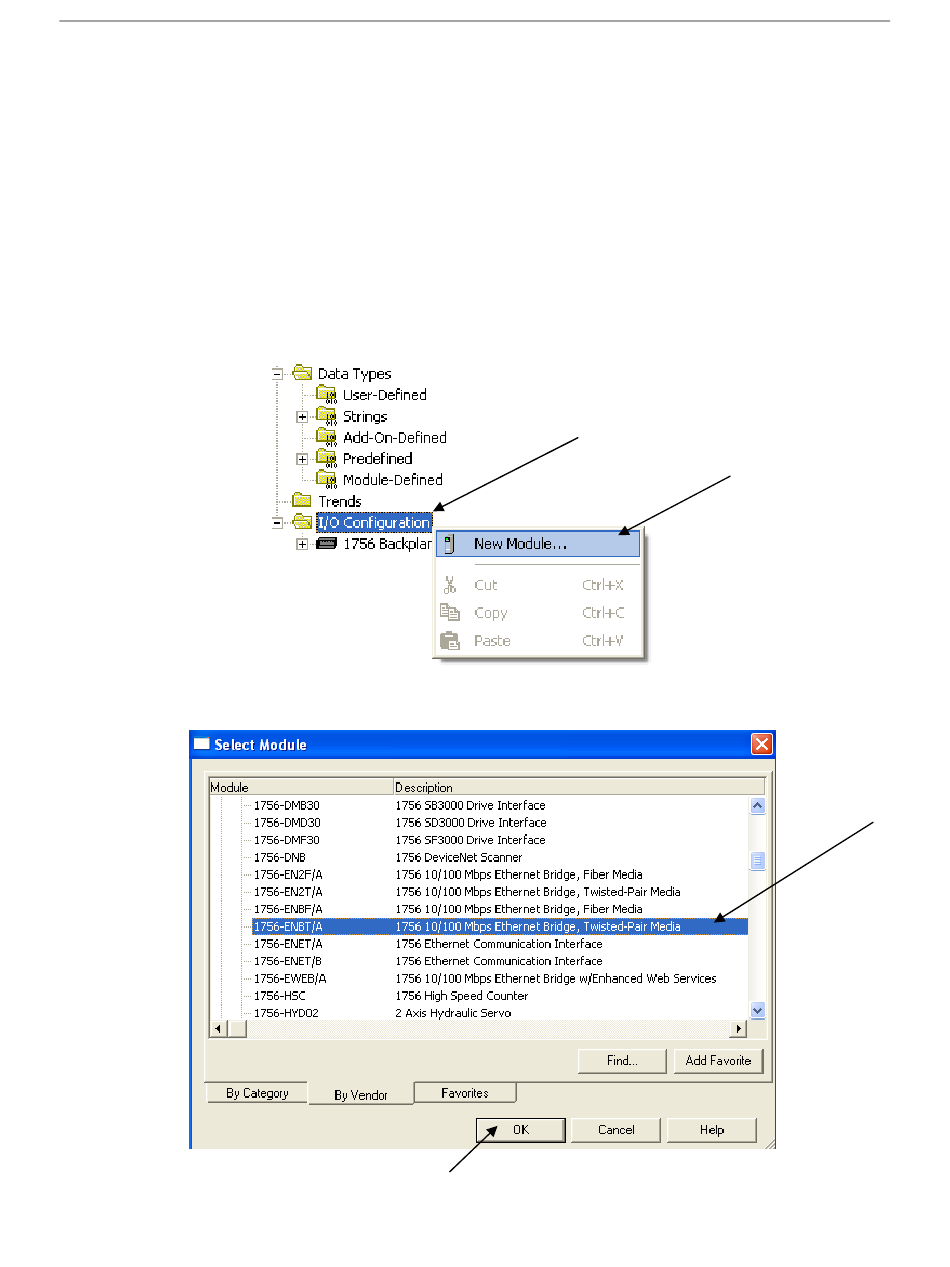

1. Select a New Module for the I/O Configuration.
2. Select the module type from the Select Module Type pop-up. The example
below uses a 1756-ENBT module.
Click OK
Right-click on I/O
Configuration
Select New Module
3-3
Select the local Ethernet
bridge module
