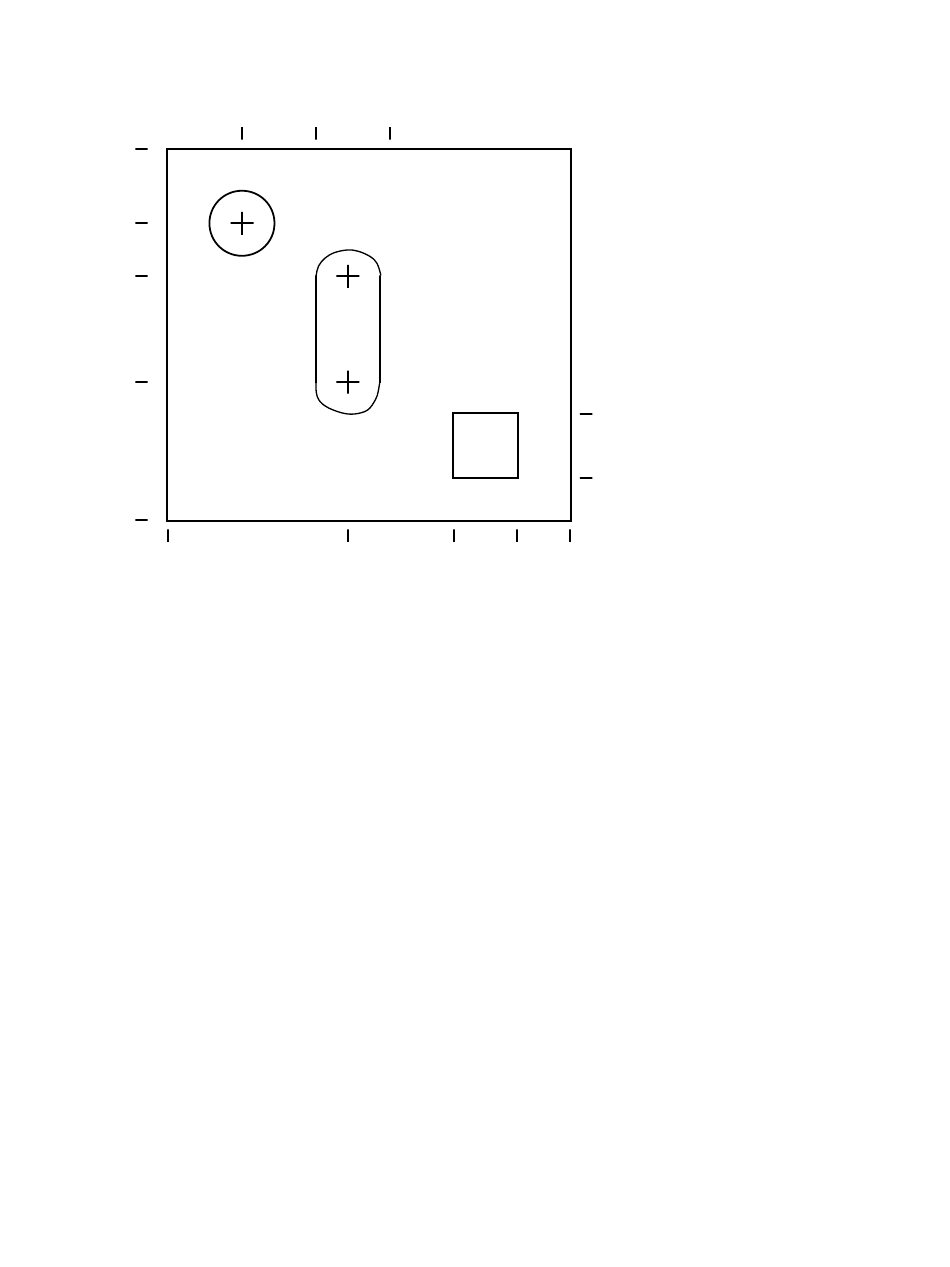

EXAMPLE PART PROGRAM

0.711
4.0
3.365
2.665
1.281
Y 0
X 0
G91G28Z0.0;
G90G92X0.Y0.;
G00X0.711Y3.365;
M98P9000;
G42G01Y3.1375D1;
G02J0.2275;
G40G01Y3.1675;
M98P9001;
G00X2.008Y2.665;
M98P9000;
G42G01X2.582D1;
Y1.281;
G02X1.434R0.574;
G01Y2.665;
G02X2.582R0.574;
G40G01X2.552;
M98P9001;
G00X3.30Y0.60;
M98P9000;
G42G01Y0.334D1;
X3.067;
Y0.939;
X3.679;
Y0.334;
X3.30;
G40Y0.364;
M98P9001;
1.434
2.582
.455 D
(2) .574 R
2.008 3.067
0.939
0.334
3.679
4.00
G00X0.Y-0.20;
M98P9000;
G41G01Y0.0D1;
Y4.0;
X4.0;
Y0.0;
X-0.04;
G40X-0.10;
M98P9001;
M30;
