G51: Scaling Mode
The G51 command will enlarge or reduce the size of a part.
Format: G51X__ Y__ P__;
- The X and Y values determine where the scaling center point is located.
- The P value determines the scaling factor.
G51.1: Mirror Imaging
Format: G51.1X__ Y__;
The G51.1 command creates a mirror image of a part in the specified axis.

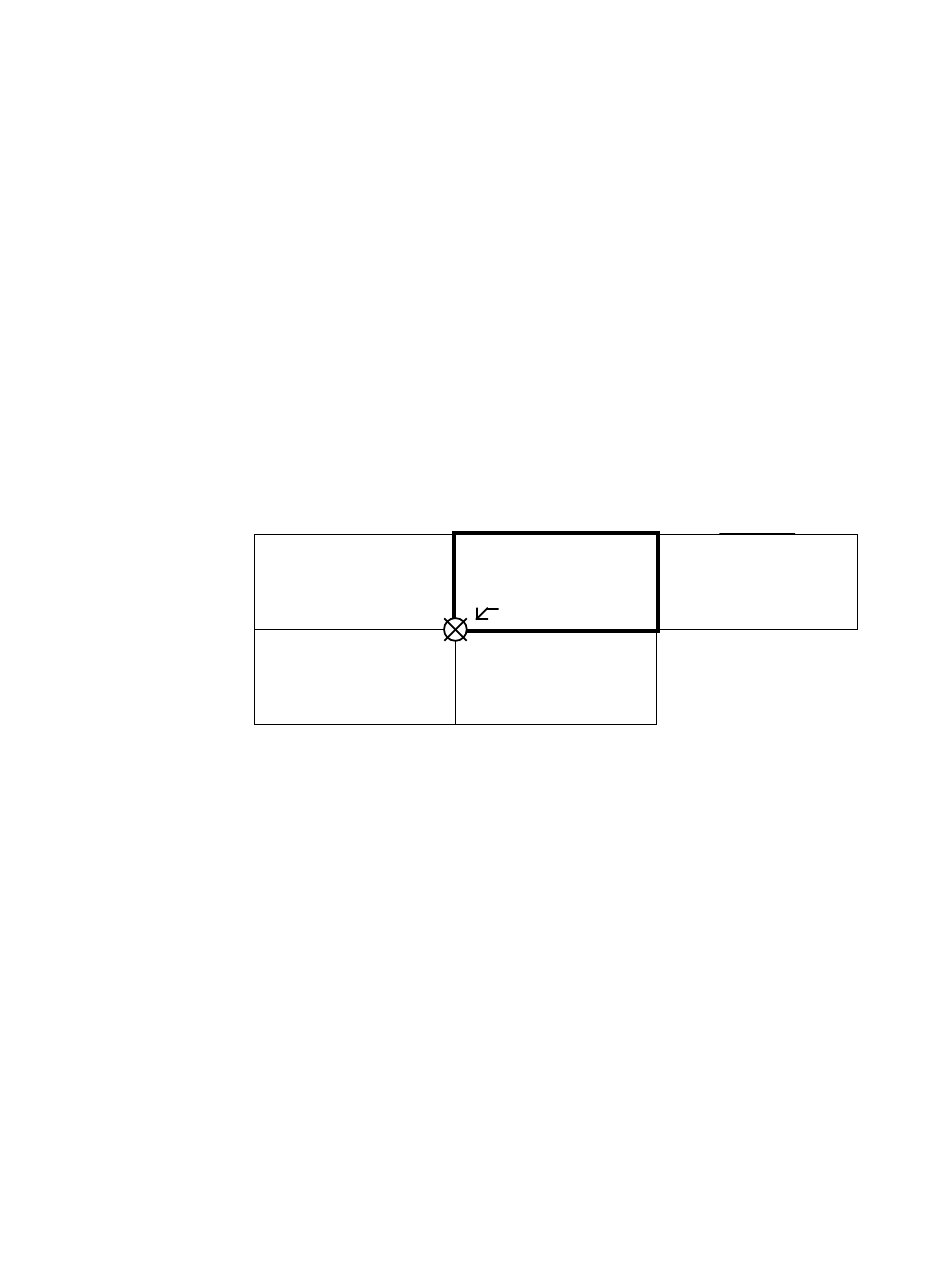

EXAMPLE:
G52: Local Coordinate System
Format: G52X__ Y__;
The G52 command creates a reference point which is independent of the G92 coordinate system.
EXAMPLE:
D = cutter compensation number
R = cutter compensation amount
G 51.1X0
G 51.1X0Y0
( P1000 = actual size, P500 = 1/2 size etc.)
2" x 4" rctgl.
(original part)
O R IG IN
G 51.1Y0
G 51.1X4.0
