Mazak STX SC L PLUS CONTROL Training Manual page 32

3.0
R
Y 0
G90G92X0Y0;
M98P____;
G01Y3.0;
G02X1.0R2.0;
G01Y0.;
G01X0.;
M98P____;
M30;

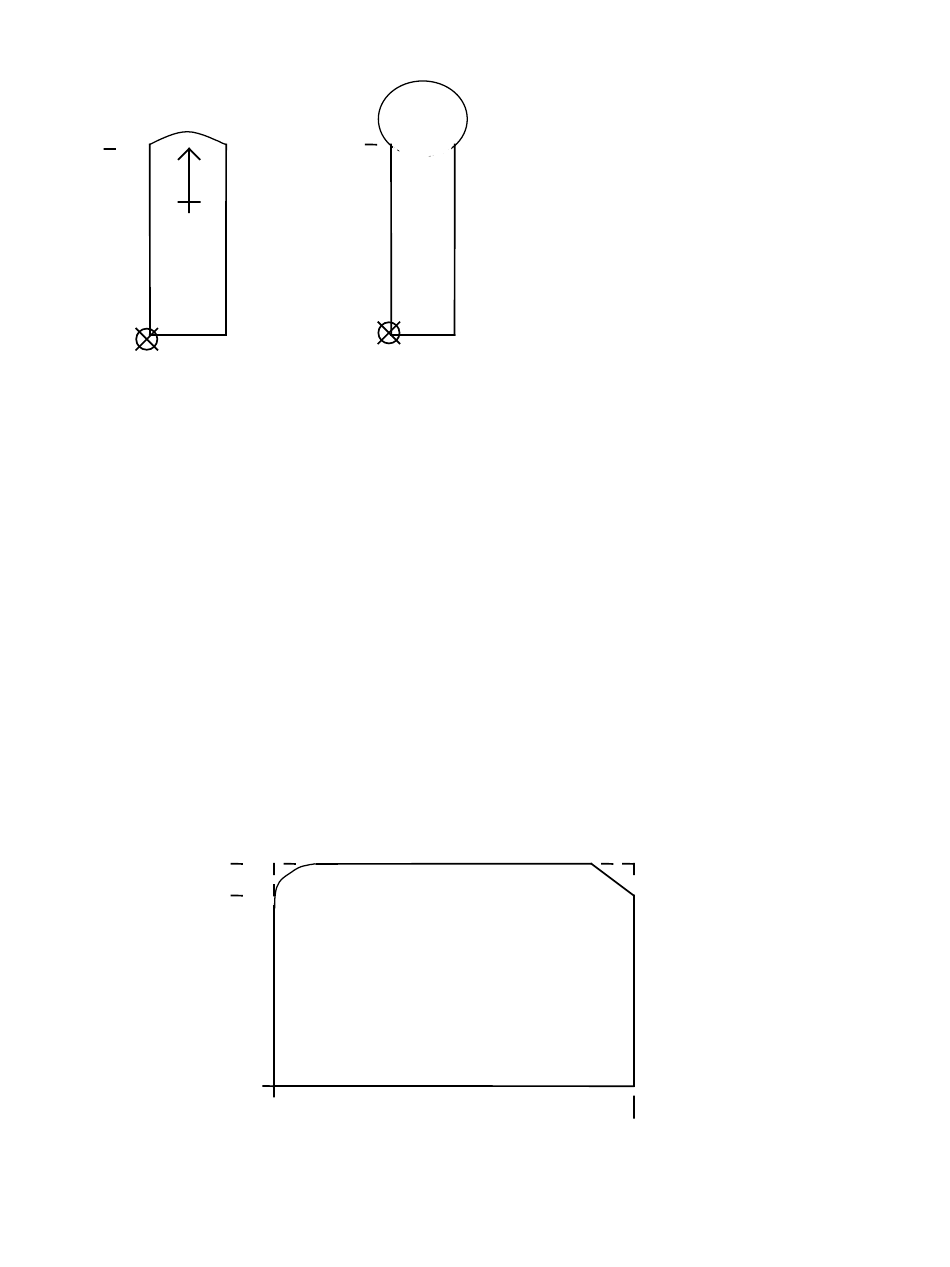

Automatic corner rounding / chamfering:
EXAMPLE:
4.0
3.5
Y 0
R
3.0
Y 0
Format: G01X__ Y__ #R__;
The control will except a #R__ or #C__ statement at the end of a G01 command which
will automatically produce a corner with a radius or chamfer.
X 0
G90G92X0Y0;
M98P____;
G01Y3.0;
G02X1.0R-2.0;
G01Y0.;
G01X0.;
M98P____;
M30;
45
G01X__ Y__ #C__;
G90G01Y4.0#R0.5;
X6.0#C0.5;
Y0.;
X-0.1;
6.0
32
