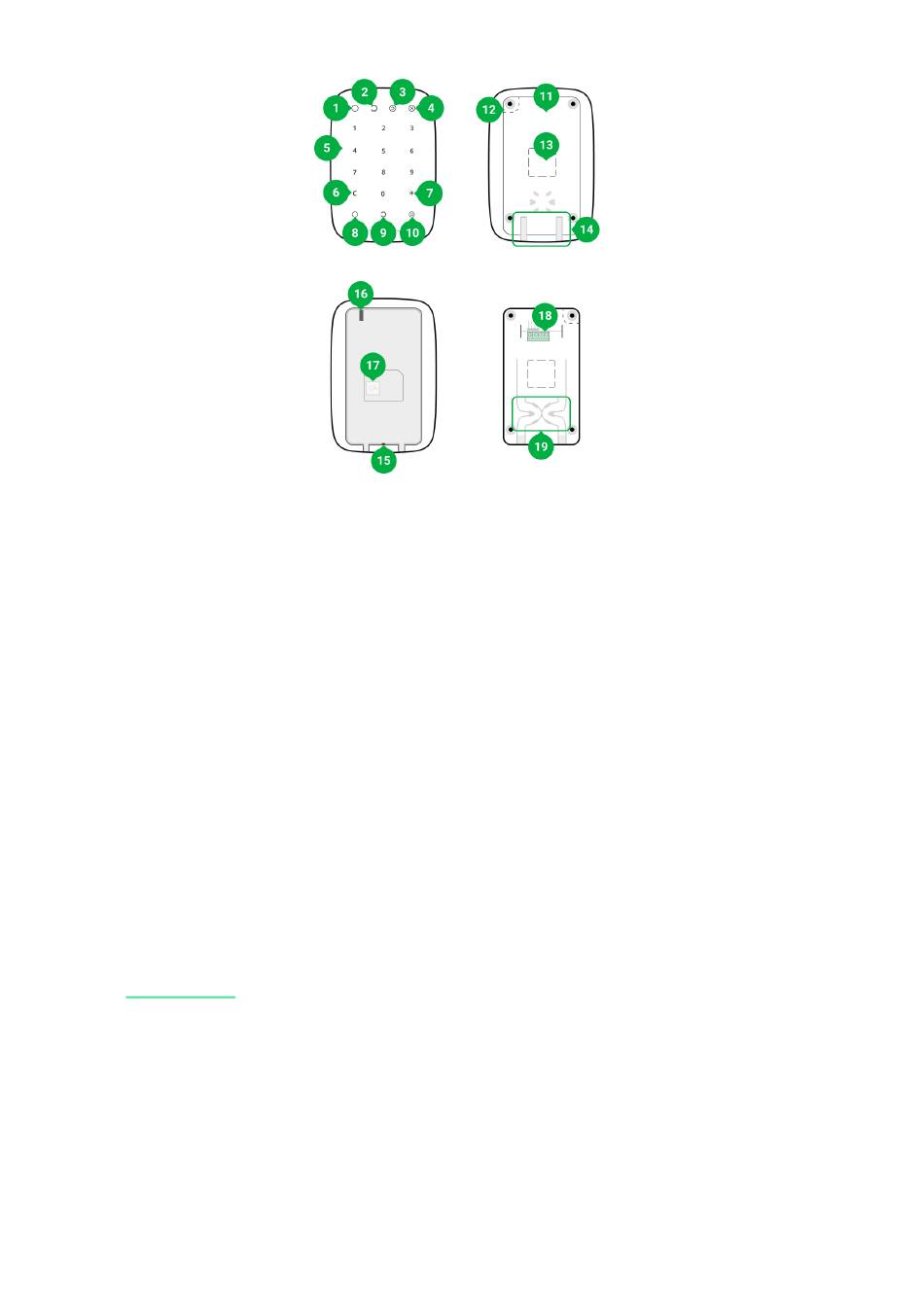

Functional elements
1. Armed LED indicator.
2. Disarmed LED indicator.
3. Night mode LED indicator.
4. Malfunction LED indicator.
5. Numeric touch button box.
6. Reset button.
7. Function button.
8. Arm button.
9. Disarm button.
10.
Night mode
enabling button.
11. SmartBracket mounting panel. To remove the panel, slide it down.
12. Perforated part of the mounting panel. Necessary for tamper triggering in
case of any attempt to detach the keypad from the surface. Do not break it
off.
13. Perforated parts of the mounting panel for the output of cables.
14. The hole for attaching the SmartBracket mounting panel with a screw.
